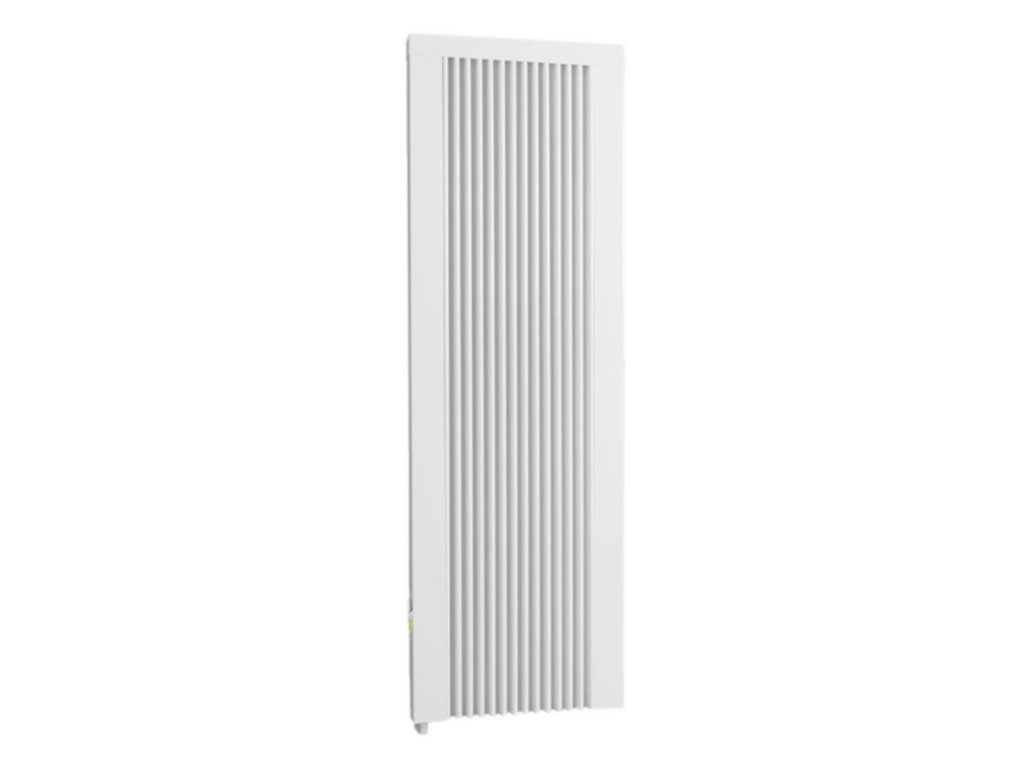

Technotherm partial storage heater

TT-KS-H DSM - 1800 W

This model also comes standard with a DSM thermostat. The DSM thermostat can be controlled with the DSM interface (to be ordered separately) via the internet using the free LHZ app. You can set separate temperatures and different time programs for each room. With electronic room temperature control and working day control. Open window detection. Adaptive start control. Possibility to connect to the internet.

It is designed using the latest technology, to create an elegant solution for all situations with intensive heating. The heaters can be installed in almost any location due to the flexibility of the product. This range has been developed to provide a customisable solution for electric heating in residential buildings, conservatories, holiday homes, offices and any other environment where central heating is required. The development of patented Magmatic® heating panels helps to reduce your heating costs.

Whilst the stove is classed as a 100% efficient direct heater, the heating panels provide partial heat storage to extend your heating comfort and reduce running costs. The stove has a sturdy body that is spot welded with a high ribbed surface to ensure there is no expansion or contraction noise during the heating cycle. The high ribbed design boasts six times the normal surface area of conventional stoves to provide a balance between convective and radiant heat for your added comfort.

Accumulation heaters will attract attention:

• the possibility of moving on castors (depending on the type), feet or supports, which can be ordered from the optional accessories
• their depth of only 7 cm
• IP 20/IP X4 protection rating
• "Internet connection" with ECO interface (RF radio receiver and TPF thermostat) or LHZ application (DSM thermostat)
• TECHNOTHERM energy manager, which can be used if you generate electricity from your own source
• additional low surface temperature (LST) models available for nurseries, schools and social facilities

The storage boiler can be easily connected to a standard electrical socket or to an existing power line. They come with wall mounting brackets, but you can also place them on the support legs (or castors) that are included as an option. These are very economical storage heaters that can be installed under deep windows because of their low height - just 34cm. These parameters make them suitable for use in conservatories. All our standard models are supplied with a built-in or manually operated room thermostat. For a fully controllable heating system, these heaters can be operated with our ECO control system (with internet connection) and also room thermostats. If you generate your own electricity, it can be connected via a TT energy manager.

Our unique surface direct heaters are designed internally so that heat is directly stored in special ceramic plates and there is no energy loss. With six times the surface area, it provides the right balance of radiant and convective heat.

Once the surface of the heater reaches the optimum temperature, depending on the thermostat setting, the heat will be released for a maximum of 45 minutes without the need for power. Depending on the programmed settings and the type of building insulation, an average of 3-5 hours of electricity is required for 24 hours of heating. All our models are equipped with a special Magmatic® storage stone .

MAGMATIC® accumulation stone

Using a special technology, heating conductors made of chromium-nickel steel (corrosion-resistant up to 1100 °C, better contact conditions) are filled into the storage stone. The energy is thus almost completely converted into heat directly in the storage stone. Overheating protection is included in the stove protection. The powder coating (also inside the stove) protects the equipment against corrosion.

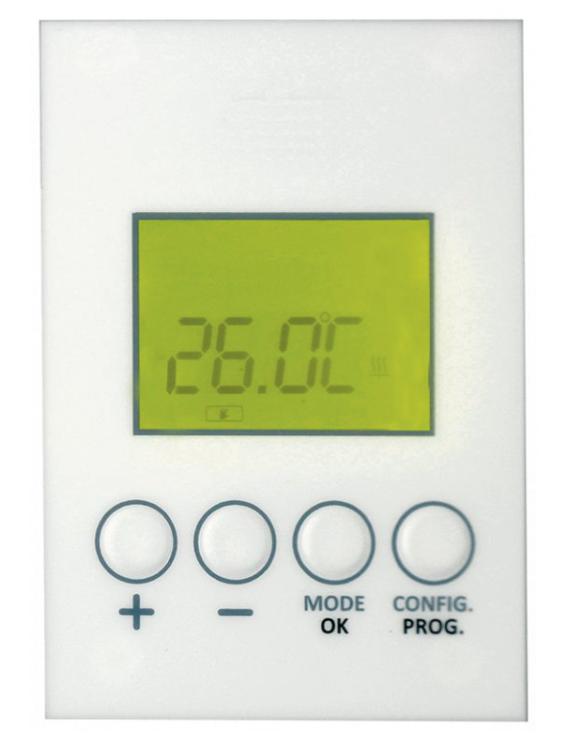

DSM thermostat

Can be controlled with the DSM interface (to be ordered separately) using the internet and the free Technotherm app. Separate temperatures and different time programs can be set for each room. Current consumption and "history" are easy to read. The thermostat detects an open window and reacts accordingly ("Open window" function). The "Out of home" function allows all programmed devices to be lowered by a certain temperature. The automatic function detects presence, absence and adapts to your need for heat.

Thanks to the DSM thermostat, your stove is among other things ready for the ErP directive.
