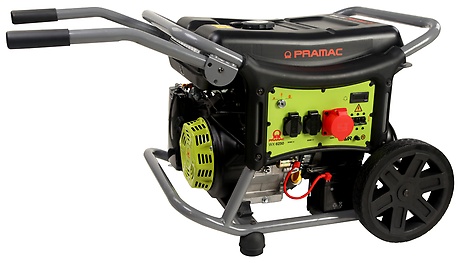

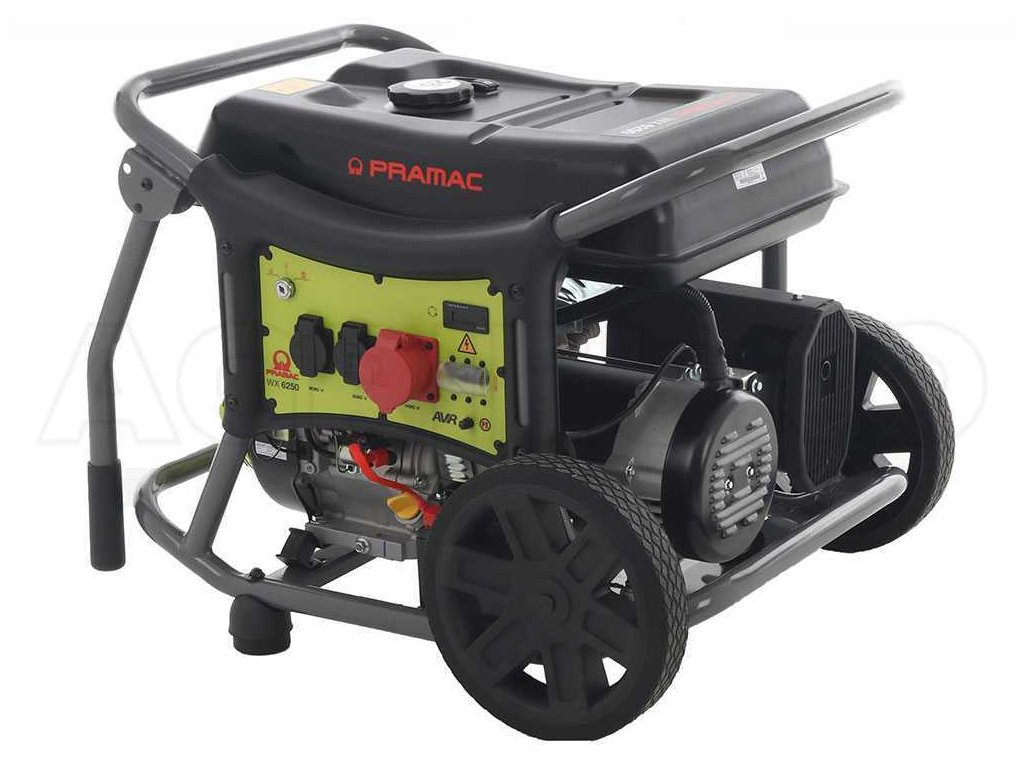

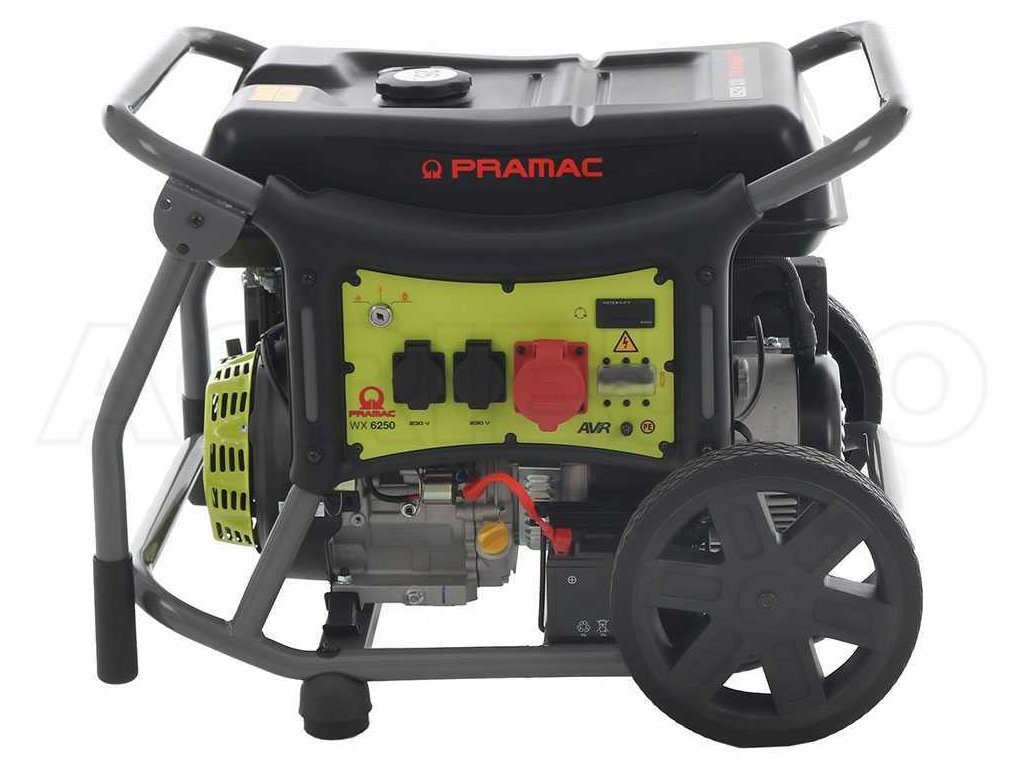

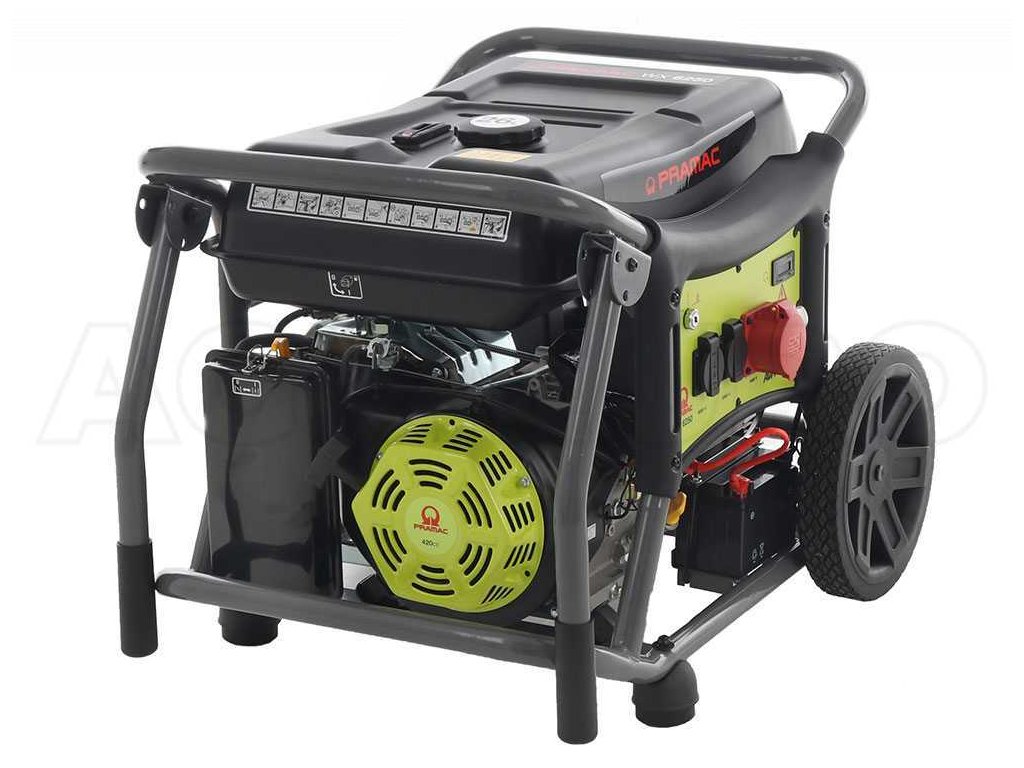

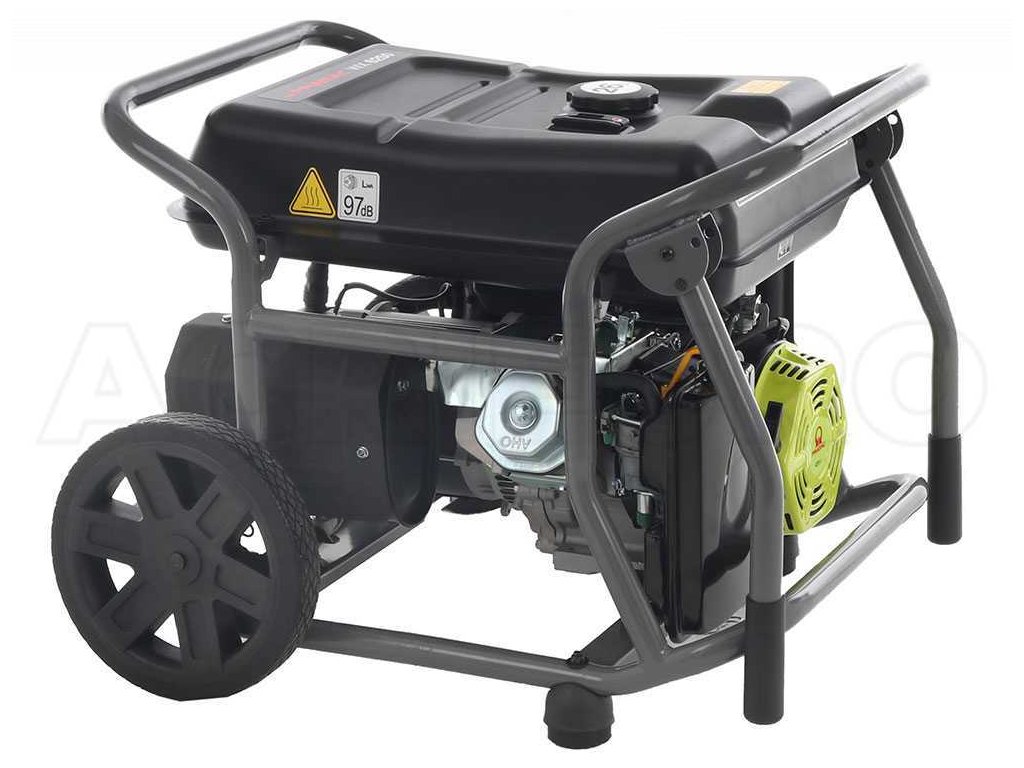

Pramac Gasoline Generator WX 6250 ES
The Pramac WX series is a practical gasoline power generator that provides a maximum output of 6.1 kVA at 400 V and 2 kVA at 230 V. Thanks to its versatility and ease of transport, it can be used not only in the industrial sector but also in the private sector. It is therefore an instant help when lighting is needed, to manage site work or property repairs. If you are not currently carrying out repairs on site, your portable power pack can be used as an emergency power source during a power outage.
Pramac Gasoline Generator WX 6250 ES
Pramac series of portable generators: instant support for lighting, smaller construction sites or DIY. Available in different versions so that the right unit can be chosen for every need. When the generator is not in use on the construction site or other areas, it can also provide emergency power in the event of a power failure.
EQUIPMENT
- OHV engine - constant power for multiple applications
- Fuel: Gasoline
- Starting system: Electric (with battery)
- Automatic low oil cut-off to protect the engine
- Engine oil for the first filling included in the scope of delivery
- Digital multifunction display (hour meter/voltage/frequency)
- Large fuel tank with level indicator and fuel filter
- Brief instructions for the user (sticker)
- AVR Automatic Voltage Regulator - features automatic voltage regulation. The voltage remains constant regardless of the current consumption
- Ergonomic folding handles and transport wheels for easy manoeuvring
SOCKETS
- SCHUKO 230V 16A IP44 x 2
- 3P+N+T CEE 400V 16A IP44 x 1
GENERATOR SWITCHBOARDS
Mounted on the front of the generator and consisting of:
CONTROL PANEL:
- Key switch: ON-OFF
DISPLAY:
- Voltmeter
- Hour meter
- Frequency meter
- Fuel gauge
PROTECTION:
- Thermal protection switch
- Oil monitoring
Additional parameters
| Category: | Generators |
|---|---|
| Weight: | 90 kg |
| Weight: | 61 - 120kg |
| Nominal power: | 0,7 - 3 kW, 5,1 - 7 kW |
| ? Fuel tank capacity: | 20,1 - 30 l |
| Maximum power: | 1,7 - 4,6 kW, 4,7 - 7,6 kW |
| Voltage: | 230/400 V |
| Starter: | Manual/Electric |
| Frequency, Hz: | 50 |
| Nominal voltage, V: | 400/230 |
| Phases: | 3 |
| Max. nominal power, VA: | 6100/2000 |
| Nominal power, VA: | 5500/1800 |
| Engine model: | Pramac OHV |
| Nominal speed, rpm: | 3000 |
| Fuel: | gasoline |
| Engine start: | electric/handheld |
| Oil pan volume, l: | 1,1 |
| Fuel tank capacity, l: | 26 |
| Fuel consumption at 50% load, l/h: | 2.17 |
| Running time at 50%, h: | 12 |
| Voltage regulation system: | AVR |
| Noise level at 7 m under normal load, dB(A): | 69 |
| Maximum guaranteed noise level (LWA), dB(A): | 97 |
| Length (D), mm: | 800 |
| Width (W), mm: | 698 |
| Height (H), mm: | 620 |
| Box dimensions LxWxH, mm: | 810x625x607 |
| Net weight, kg: | 90 |
