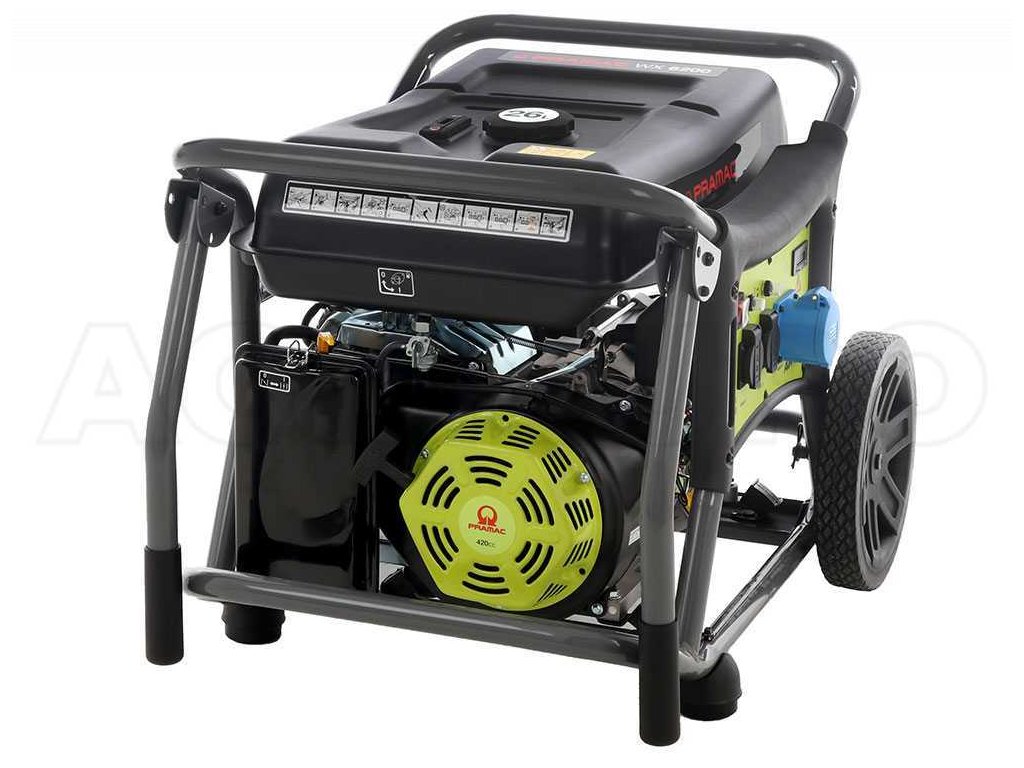

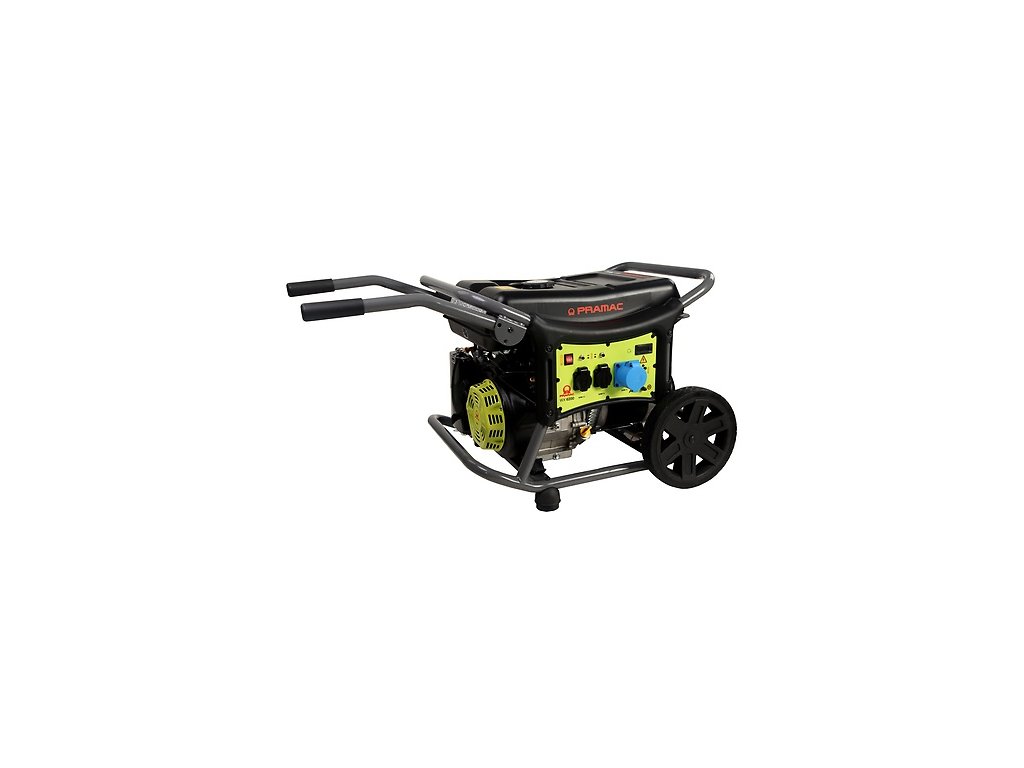

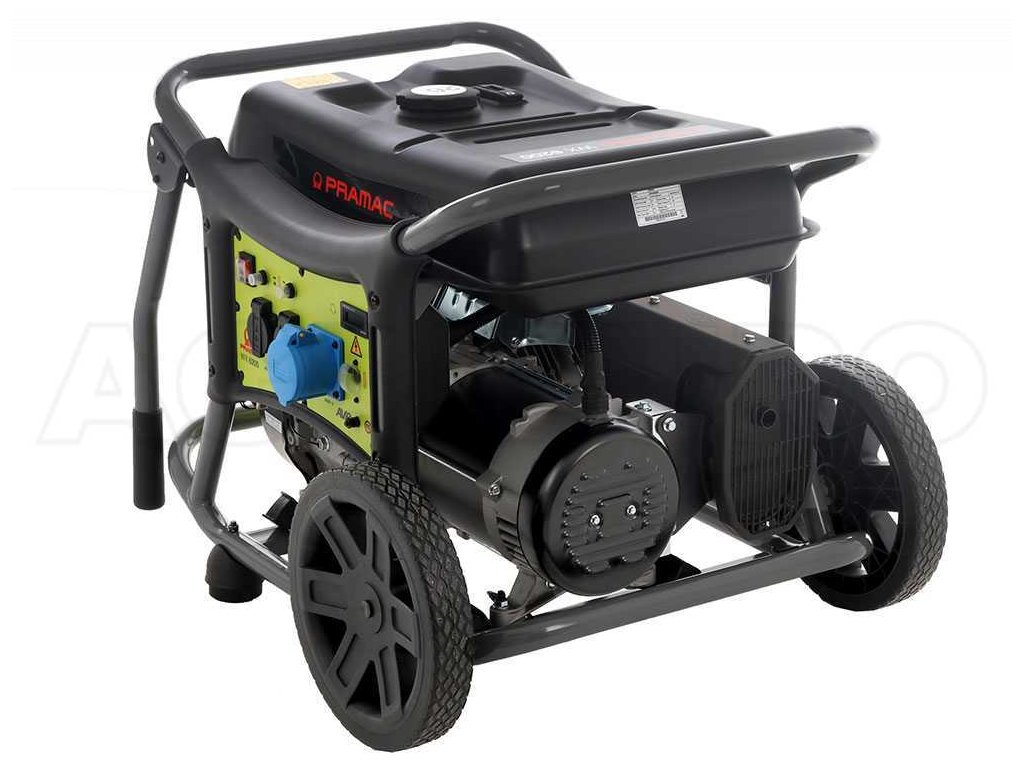

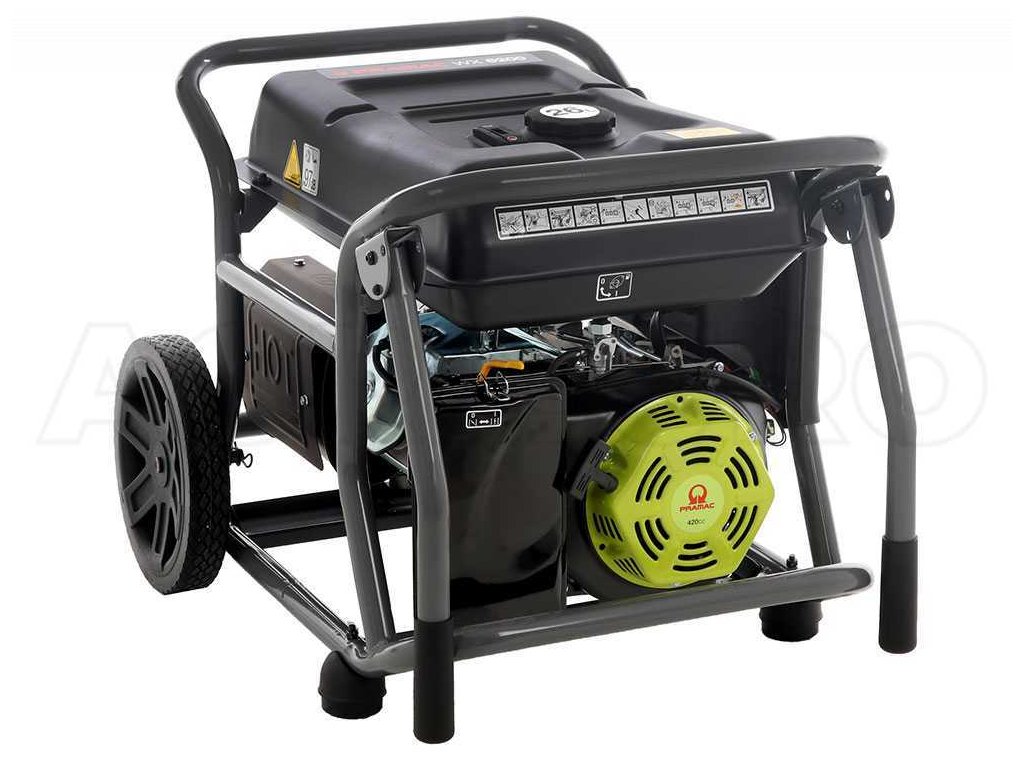

Pramac Gasoline Generator WX 6200
The Pramac WX series is a practical gasoline power generator that provides a maximum output of 5.8 kVA. Thanks to its versatility and easy transport, it can be used not only in the industrial sector, but also in the private sector. It is therefore an instant help when lighting is needed, to handle site work or property repairs. If you are not currently carrying out site repairs, your portable power pack can be used as an emergency power source during a power outage.
Pramac Gasoline generator WX 6200
Pramac range of portable generators: instant support for lighting, smaller construction sites or DIY. Available in different versions so that the right unit can be chosen for every need. When the generator is not in use on the construction site or other areas, it can also provide emergency power in the event of a power failure.
EQUIPMENT
• OHV motor - constant power for multiple applications
• Fuel: Gasoline

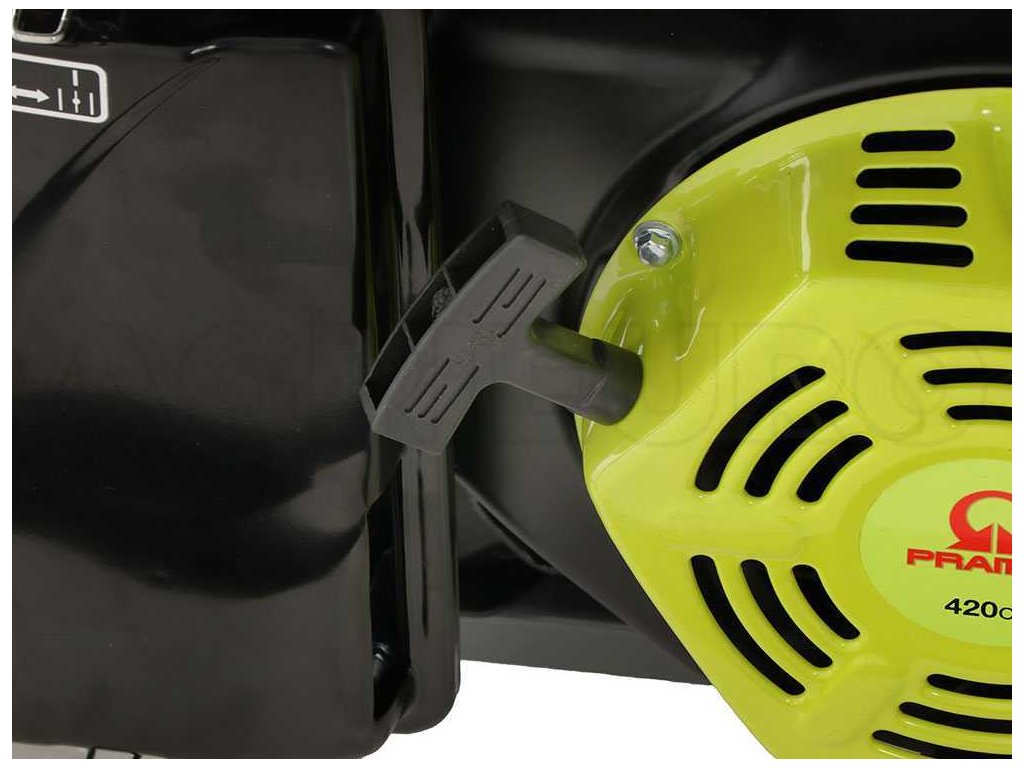

• Starter: Manual
• Automatic low oil cut-off to protect the engine
• Engine oil for the first filling included in the scope of delivery
• Digital multifunction display (operating hours counter/voltage/frequency)
• Large fuel tank with level indicator and fuel filter
• Brief instructions for the user (sticker)
• AVR Automatic Voltage Regulator - features automatic voltage regulation. The voltage remains constant regardless of the current consumption
• Ergonomic folding handles and transport wheels for easy manoeuvring
SOCKETS
230V 16A x 2
230V 32A x 1
GENERATOR SWITCHBOARDS
Mounted on the front of the generator and consisting of:
CONTROL:
• Key switch: OFF-ON
• Manual
DISPLAY:
• Voltmeter
• Operating hours counter
• Frequency meter
• Fuel gauge
PROTECTION:
• Thermal protection
Additional parameters
| Category: | Generators |
|---|---|
| Weight: | 78 kg |
| Weight: | 61 - 120kg |
| Nominal power: | 5,1 - 7 kW |
| ? Fuel tank capacity: | 20,1 - 30 l |
| Maximum power: | 4,7 - 7,6 kW |
| Voltage: | 230 V |
| Starter: | Manual |
| Frequency, Hz: | 50 |
| Nominal voltage, V: | 230 |
| Phases: | 1 |
| Max. nominal power, VA: | 5800 |
| Nominal power, VA: | 5300 |
| Engine model: | Pramac OHV |
| Nominal speed, rpm: | 3000 |
| Fuel: | gasoline |
| Starter: | Manual |
| Oil pan volume, l: | 1,1 |
| Fuel tank capacity, l: | 26 |
| Fuel consumption at 50% load, l/h: | 2,17 |
| Running time at 50%, h: | 12 |
| Voltage regulation system: | AVR |
| Maximum guaranteed noise level (LWA), dB(A): | 97 |
| Noise level at 7 m under normal load, dB(A): | 69 |
| Length (D), mm: | 800 |
| Width (W), mm: | 698 |
| Height (H), mm: | 620 |
| Box dimensions LxWxH, mm: | 810x625x607 |
| Net weight, kg: | 78 |
