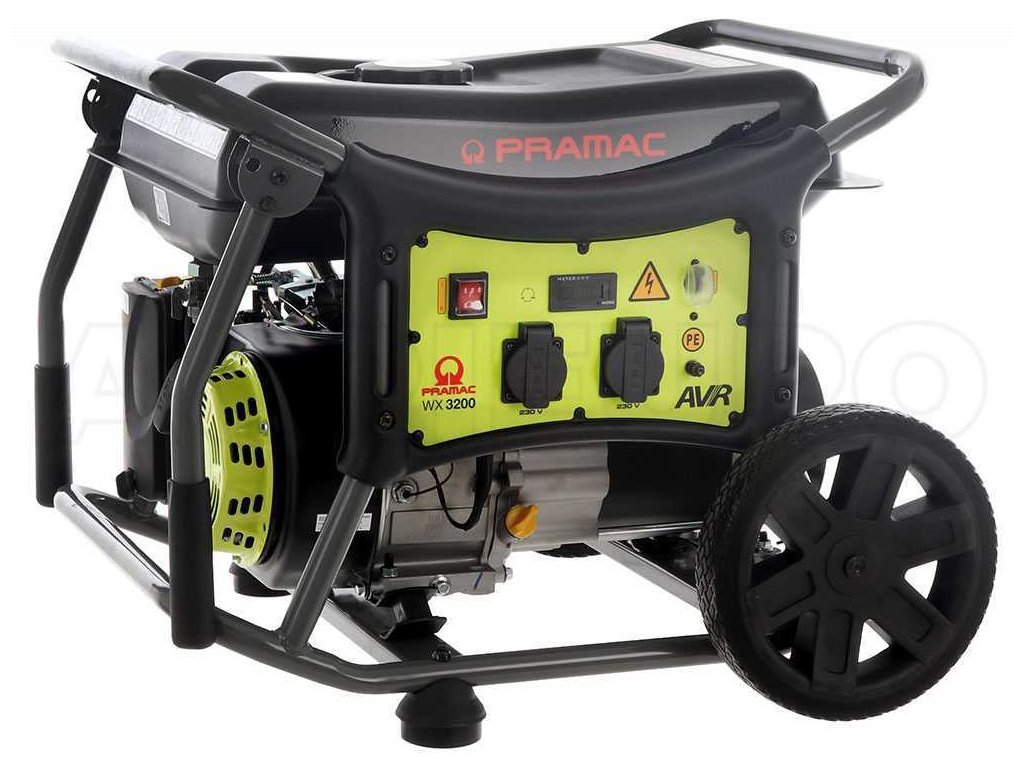

Pramac Gasoline Generator WX 3200
The Pramac WX series is a practical gasoline power generator that provides a maximum output of 3.2 kVA. Thanks to its versatility and easy transport, it can be used not only in the industrial sector, but also in the private sector. It is therefore an instant help when lighting is needed, to handle site work or property repairs. If you are not currently carrying out site repairs, your portable power pack can be used as an emergency power source during a power outage.
PRAMAC Gasoline Generator WX 3200
EQUIPMENT
- OHV engine - constant power for multiple applications
- Fuel: Gasoline
- Starting system: Manual start
- Automatic low oil cut-off to protect the engine
- Engine oil for the first filling included in the scope of delivery
- Digital multifunction display (hour meter/voltage/frequency)
- Large fuel tank with level indicator and fuel filter
- Brief instructions for the user (sticker)
- AVR Automatic Voltage Regulator - features automatic voltage regulation. The voltage remains constant regardless of the current consumption
- Ergonomic folding handles and transport wheels for easy manoeuvring
SOCKETS
- SCHUKO 230V 16A IP44 x 2
GENERATOR SWITCHBOARDS
Mounted on the front of the generator and consisting of:
CONTROL PANEL:
- Key switch: ON-OFF
- Manual start
DISPLAY:
- Voltmeter
- Hour meter
- Frequency meter
- Fuel gauge
PROTECTION:
- Thermal protection switch
- Oil monitoring
Additional parameters
| Category: | Generators |
|---|---|
| Weight: | 49 kg |
| Weight: | 0 - 60kg |
| Nominal power: | 0,7 - 3 kW |
| ? Fuel tank capacity: | 10,1 - 20 l |
| Maximum power: | 1,7 - 4,6 kW |
| Voltage: | 230 V |
| Starter: | Manual |
| Frequency, Hz: | 50 |
| Nominal voltage, V: | 230 |
| Phases: | 1 |
| Max. nominal power, VA: | 2850 |
| Nominal power, VA: | 2450 |
| Engine model: | Pramac OHV |
| Nominal speed, rpm: | 3000 |
| Fuel: | gasoline |
| Engine start: | Manual |
| Oil pan volume, l: | 0,6 |
| Fuel tank capacity, l: | 17 |
| Fuel consumption at 50% load, l/h: | 1,04 |
| Running time at 50%, h: | 16,3 |
| Voltage regulation system: | AVR |
| Maximum guaranteed noise level (LWA), dB(A): | 93 |
| Hladina hluku ve vzdálenosti 7 m při normálním zatížení, dB(A): | 65 |
| Length (D), mm: | 680 |
| Width (W), mm: | 602 |
| Height (H), mm: | 523 |
| Box dimensions LxWxH, mm: | 685x505x520 |
| Net weight, kg: | 49 |
