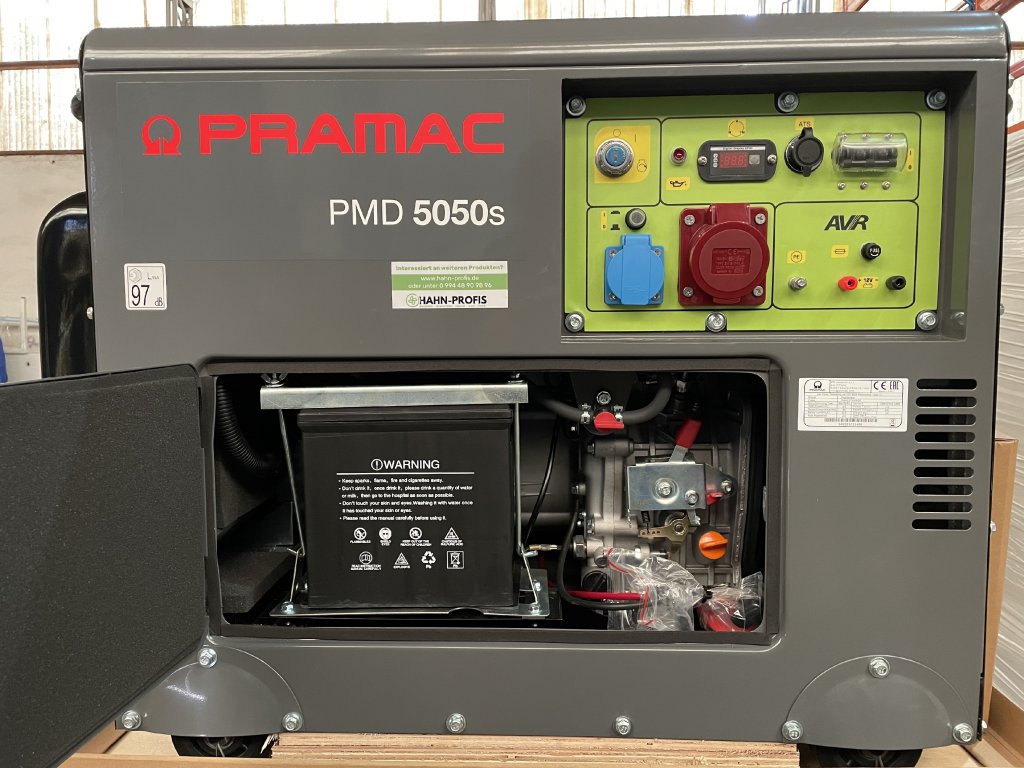

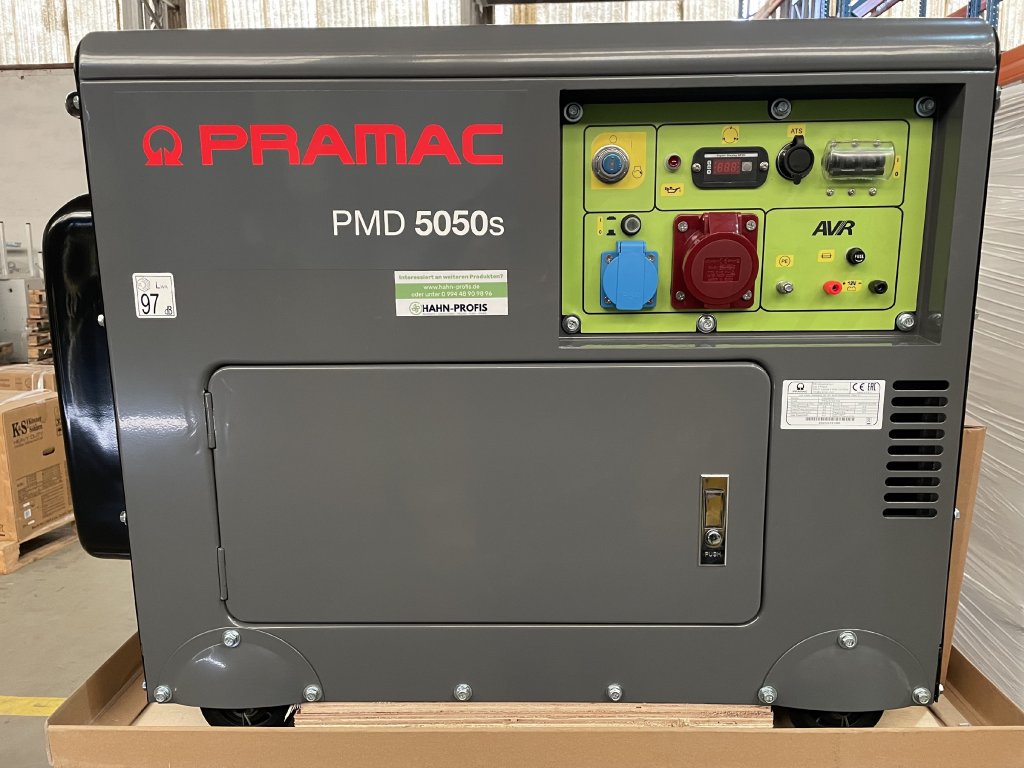

Pramac Diesel Generator PMD 5050S
Diesel and soundproof motorisation guarantee reliability with low running costs and maximum comfort. Handle and wheels allow easy movement and transport. The power plant is equipped with a large fuel tank that allows for long continuous operation. A built-in digital multimeter allows for scheduled maintenance intervals and ensures optimum operating condition of the power generator. An automatic voltage regulator (AVR) ensures voltage stability. Power Coating helps prevent corrosion in all weather conditions.
Pramac Diesel Generator PMD 5050S
EQUIPMENT
- OHV engine for constant power even during load changes
- Fuel type: Diesel
- Starting system: Electric (with battery)
- Automatic shutdown when oil level is low protects the engine against damage
- Digital multifunction display - fuel gauge
- AVR automatic voltage regulator
- 4 wheels integrated for easy transport
- Crane loading eye
SOCKETS
- SCHUKO 230V 16A IP44 1 - 1 x
- 3P+N+T CEE 400V 16A IP44 - 1 x

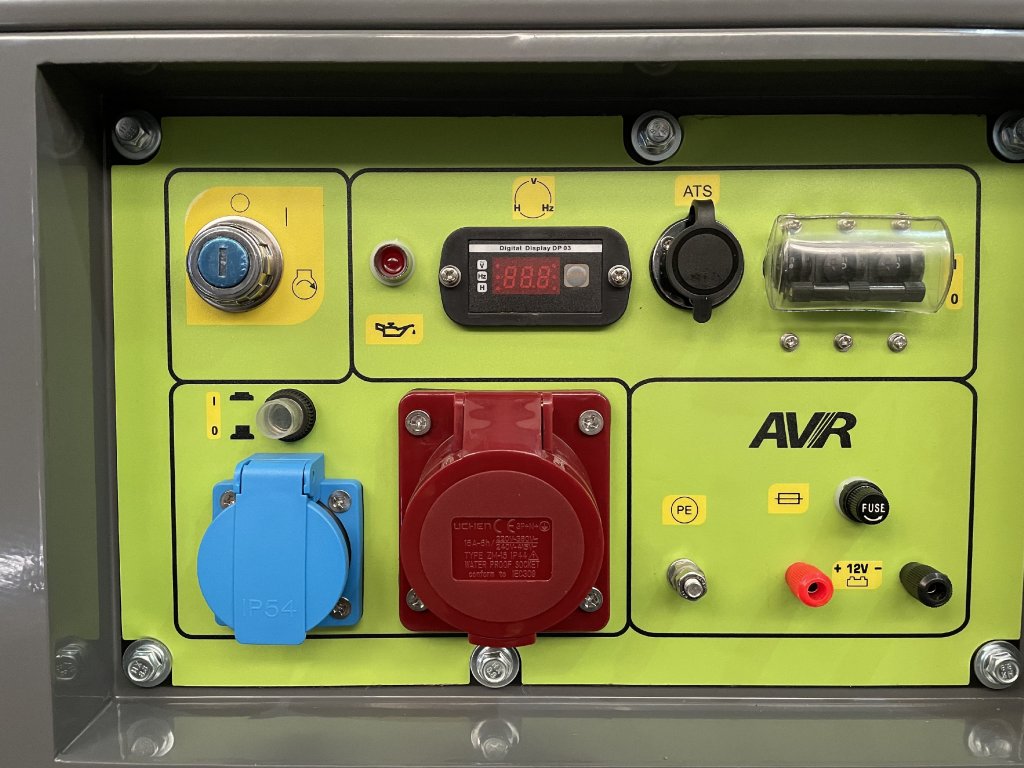

CONTROL PANEL
Mounted on the generator for: display, control and protection of the generator as well as for the sockets
CONTROL:
● Key switch: OFF - ON - START
DISPLAY:
● Voltmeter
● Operating hours meter
● Frequency meter
● Fuel gauge
PROTECTION:
● Thermo-magnetic circuit breaker
● Oil monitoring (with lamp)
● Thermal fuse 9A (12V DC)
ADDITIONAL SOCKET:
● 12V DC
Additional parameters
| Category: | Generators |
|---|---|
| Weight: | 185 kg |
| Weight: | 181 - 240kg |
| Nominal power: | 3,1 - 5 kW |
| ? Fuel tank capacity: | 10,1 - 20 l |
| Maximum power: | 1,7 - 4,6 kW |
| Voltage: | 230 V |
| Starter: | Electric |
| Rated AC frequency, Hz: | 50 |
| Nominal voltage, V: | 230 |
| Nominal maximum power, VA: | 4000 |
| Nominal power, VA: | 3600 |
| Single-phase maximum power, W: | 1330 |
| Single-phase nominal power, W: | 1200 |
| Engine manufacturer: | Pramac |
| Valve arrangement: | OHV |
| Operating engine speed, rpm: | 3000 |
| Fuel: | Diesel |
| Engine start: | Electric |
| Oil pan volume, l: | 1,65 |
| Fuel tank capacity, l: | 14,5 |
| Voltage regulation system: | AVR |
| Length (D), mm: | 910 |
| Width (W), mm: | 518 |
| Height (H), mm: | 682 |
| Weight, kg: | 185 |
| Box dimensions LxWxH, mm: | 950x570x765 |
| Fuel consumption at 50% load, l/h: | 1,28 |
| Operating time at 50%, h: | 11,3 |
| Maximum guaranteed noise level (LWA), dB(A): | 97 |
| Noise level at 7 m under normal load, dB(A): | 69 |
