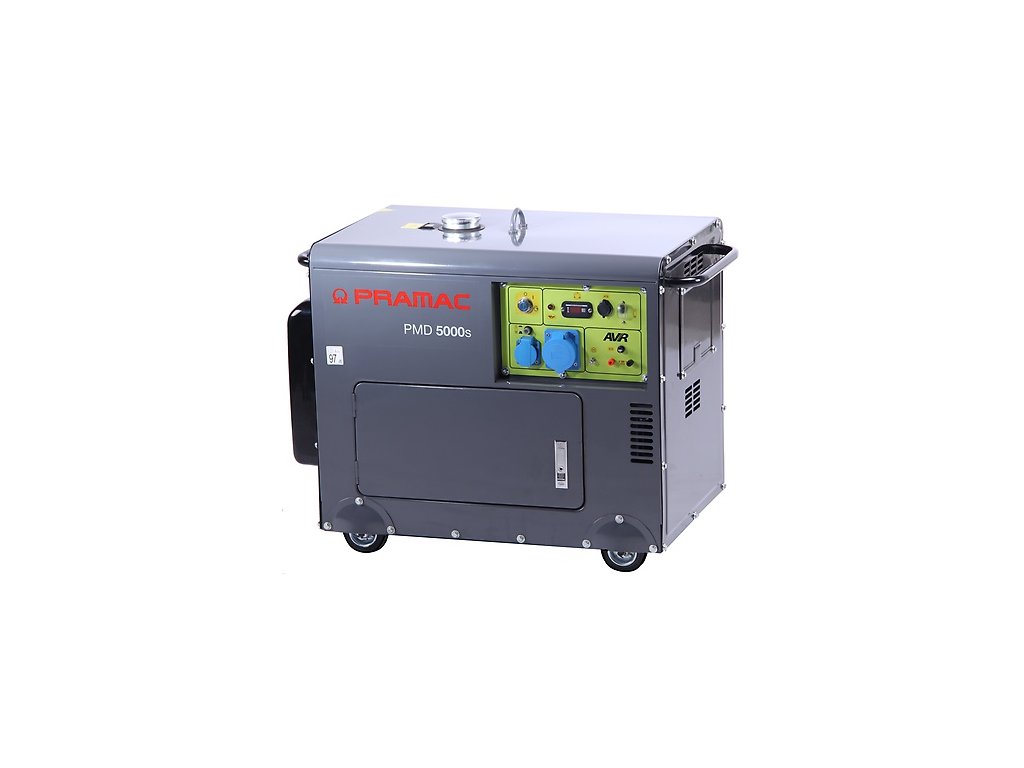

Pramac Diesel Generator PMD 5000S
Diesel and soundproof motorisation guarantee reliability with low running costs and maximum comfort. Handle and wheels allow easy movement and transport. The power plant is equipped with a large fuel tank that allows for long continuous operation. A built-in digital multimeter allows for scheduled maintenance intervals and ensures optimum operating condition of the power generator. An automatic voltage regulator (AVR) ensures voltage stability. Power Coating helps prevent corrosion in all weather conditions.
Pramac Diesel Generator PMD 5000S
EQUIPMENT AND FEATURES
- OHV engine ensures constant power even under changing loads
- Automatic shutdown at low oil level protects the engine from damage
- Fuel type: diesel
- Electric starter system (with battery)
- Digital multifunction display
- Fuel gauge
- Optional connector for connection of AVR automatic voltage regulator
- 4 integrated castors for easy transport
- Loading eye for connection to crane
- Optional emergency power switch for a safe home
- Equipped with voltmeter, operating hour counter, frequency meter and fuel gauge
SOCKETS
- 1x 230V 16A
- 1x 2P+T CEE 230V 32A
CONTROL PANEL
Mounted on the generator: Display, control and protection of the generator as well as for the sockets.
CONTROL:
- Key switch: OFF - ON - START
DISPLAY:
- Voltmeter
- Operating hours counter
- Frequency meter
- Fuel gauge
PROTECTION
- Thermomagnetic circuit breaker
- Oil monitoring (with indicator light)
- Thermal fuse 9A (12V DC)
OUTPUT:
- Battery Charger 12V DC
- PE screw
- Connector for ATS (Accessory available)
Additional parameters
| Category: | Diesel |
|---|---|
| Weight: | 165 kg |
| Weight: | 121 - 180kg |
| Nominal power: | 3,1 - 5 kW |
| ? Fuel tank capacity: | 10,1 - 20 l |
| Maximum power: | 4,7 - 7,6 kW |
| Voltage: | 230 V |
| Starter: | Electric |
| Rated AC frequency, Hz: | 50 |
| Nominal voltage, V: | 230 |
| Number of phases: | 1 |
| Nominal maximum power, VA: | 5000 |
| Nominal power, VA: | 4500 |
| Engine manufacturer: | Pramac |
| Valve arrangement: | OHV |
| Operating engine speed, rpm: | 3000 |
| Fuel: | diesel |
| Starter: | Electric |
| Oil pan volume, l: | 1,65 |
| Fuel tank capacity, l: | 14,5 |
| Voltage regulation system: | AVR |
| Length (D), mm: | 910 |
| Width (W), mm: | 518 |
| Height (H), mm: | 682 |
| Weight, kg: | 165 |
| Box dimensions LxWxH, mm: | 950x570x765 |
| Fuel consumption at 50% load, l/h: | 1,28 |
| Operating time at 50%, h: | 11,3 |
| Maximum guaranteed noise level (LWA), dB(A): | 97 |
| Noise level at 7 m under normal load, dB(A): | 69 |
