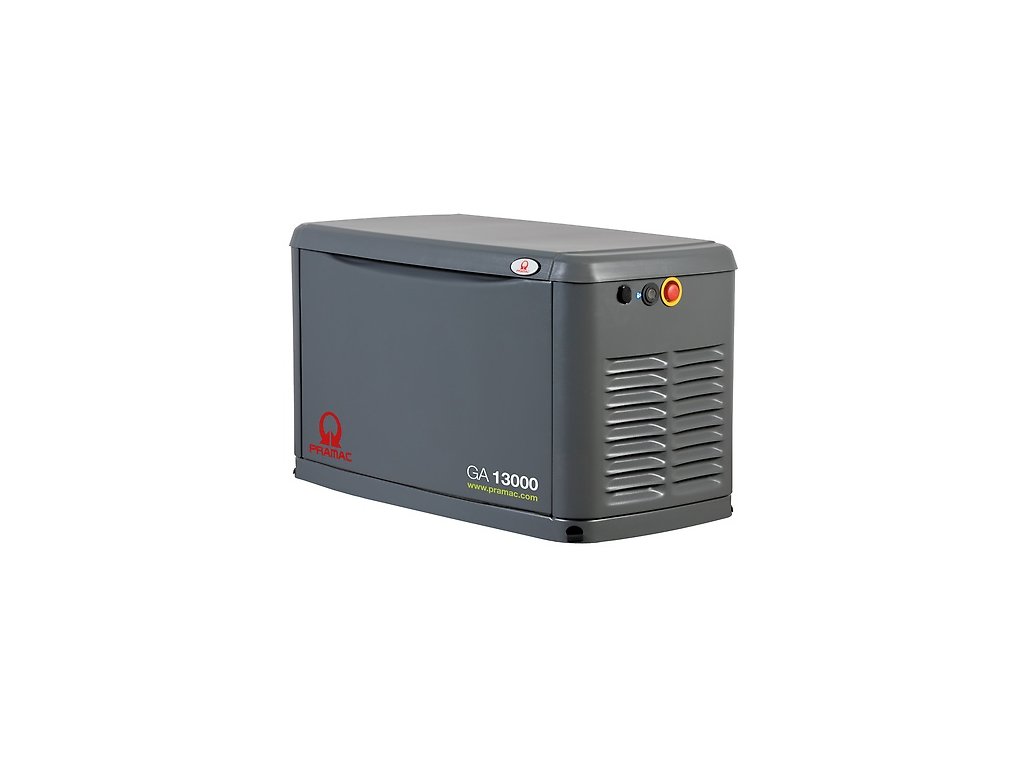

Pramac Gas generator GA 13000

Brand: Pramac
Frequency HZ 50
Power V 230
Phases   1
Max. power ESP (liquid gas) Watts 13000
Continuous power (natural gas) Watts 13000
Fuel   Natural gas or liquid gas
Starting System   Electric
Availability Available in 3 weeks after order
Code: 4335
7 999 € 6 610,70 € excl. VAT
Pramac Gas generator GA 13000
Brand: Pramac

Pramac Gas generator GA 13000

GA8000

Gas power generator, Our newly developed emergency power generators can be operated with liquid gas as well as with natural gas and can be supplied as single-phase or three-phase versions, depending on requirements. Sound-insulated aluminium all-weather housing, withstands wind up to 240 km/h, air-cooled, easy to maintain, AVR-controlled generator, WLAN option for remote control, integrated automatic emergency power system ATS, functional even at low inlet pressure of 9 mbar, Generac G-FORCE 1000 series engine, Maximum power 13 kVA for a wide range of uses, Soundproofed, only 63 db/7m The processor-controlled electronics AVR of these units ensures a clean output voltage with which sensitive electronic devices such as notebooks, heating controls and televisions can be operated without any problems. 100% stable running, Evolution Digital regulator, ensures a clean and stable electrical voltage, backlit LCD screen with automatic contrast adjustment for good readability.



EQUIPMENT

  • GENERAC G-FORCE OHV Engine
  • Fuel: natural gas or liquid gas operationv
  • Electronic speed regulator
  • Silenced aluminium housing
  • True Power ™ Electronics
  • Two-line multilingual Digital Evolution ™ LCD controller
  • System status and maintenance interval LED indicators
  • LED indicators
  • Wi-Fi communication
  • Free Mobile Link ™ Wi-Fi Remote
  • 5 years limited warranty
  • Compatible with LTS switch



ENGINE

  • Generac G-Force Design: Maximises engine airflow for greater fuel efficiency. Ground cylinder walls and plasma moly rings provide cooler running cooler engine running and reduced oil consumption, contributing to longer engine engine life.
  • "Spiny-Lok" cast iron cylinder walls: Solid construction ensures long engine life.
  • Electronic ignition / dual ignition sequence: These functions ensure a smooth start and reliable operation.
  • Full pressure lubrication: pressure lubrication on all important bearings, better performance, less maintenance and longer engine life. Now with up to 2 years / 200 hours oil change interval.
  • Low oil pressure shutdown system: The shutdown protection prevents engine damage due to insufficient oil.
  • High temperature cut-off: Prevents the motor from overheating









Additional parameters

Category: Generators
Weight: 193 kg
Nominal maximum power - LPG, VA: 13000
Nominal maximum power - CNG, VA: 13000
Rated AC frequency, Hz: 50
Nominal voltage, V: 230
Number of phases: 1
Power factor, cos ϕ: ϕ 1
Engine manufacturer: Generac
Engine model: G-FORCE/1000 SERIES
Valve arrangement: OHV
Engine cooling: air
Number of cylinders: 2
Displacement, cm³: 999
Compression ratio: 9.5:1
Engine start: Electric
Starter, V: 12
Systém regulátoru: Controller system
Operating engine speed, rpm: 3000
Oil capacity with filter installed, l: 1,6
Fuel: natural gas or LPG
Natural gas: load 50%, m³/h: 4,02
Natural gas: load 100%, m³/h: 6,48
Liquefied propane: load 50%, l/h: 5,58
Liquefied propane: load 100%, l/h: 8,86
Voltage regulation system: AVR
Number of motor poles: 2
MAX current (LPG), A: 56,52
MAX current (Natural gas), A: 56,52
Circuit breaker, A: 63
Length (D), mm: 1232
Width (W), mm: 648
Height (H), mm: 733
Weight, kg: 193
Maximum guaranteed noise level (LWA), dB(A): 96
Noise level at 7 m under normal load, dB(A): 63
Noise level in Quiet-Test training mode, dB(A): 54
