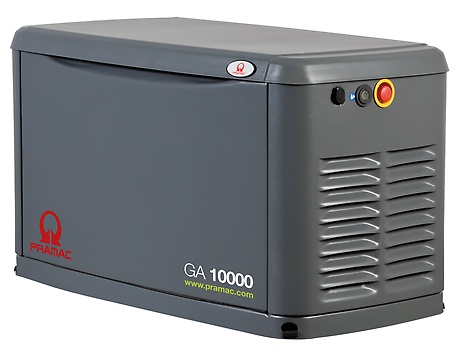

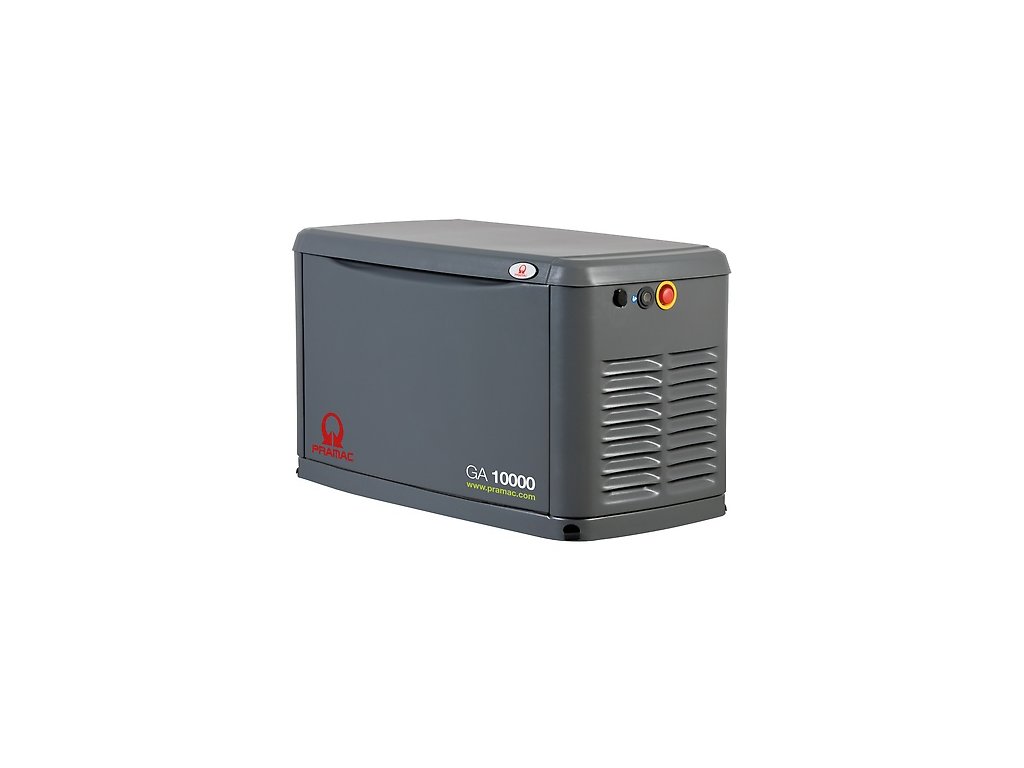

Pramac Gas generator GA 10000

Brand: Pramac
Frequency HZ 50
Voltage V 230
Phases   1
Max. power ESP (liquid gas) Watts 10000
Continuous power (natural gas) Watts 10000

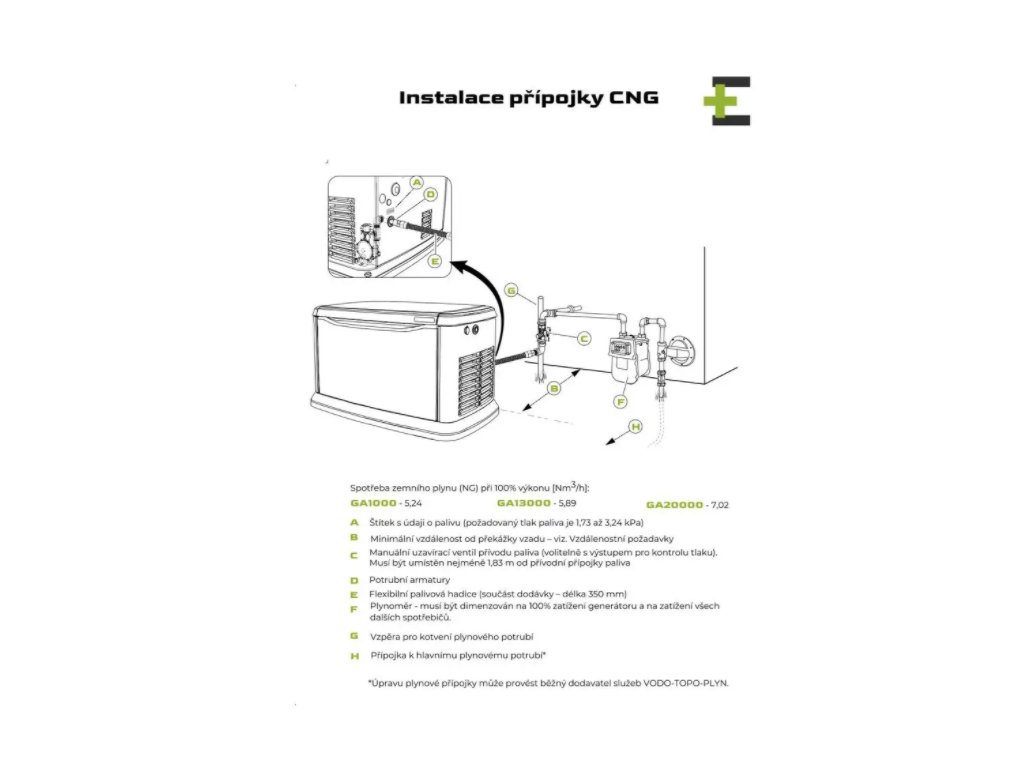

Fuel   Natural gas or liquid gas
Occasion system   Electric
Availability Available in 3 weeks after order
Code: 4329
7 644 € 6 317,40 € excl. VAT
Pramac Gas generator GA 10000
Brand: Pramac

Pramac Gas generator GA 10000



GA10000

The PRAMAC brand GA10000 gas generator features a new Mobile Link ™ mobile control system that allows you to check the status of your generator at any time and from anywhere. The equipment works even when no one is at home. If a power failure occurs, the generator switches on automatically. The PRAMAC GA10000 gas generator has a Generac G-FORCE 1000 SERIES engine of 999 cc and with a maximum power of 10 KVA.



EQUIPMENT

  • GENERAC G-FORCE OHV Engine
  • Fuel: natural gas or liquid gas operation
  • Electronic speed regulator
  • Silenced aluminium housing
  • True Power ™ Electronics
  • Two-line multilingual Digital Evolution ™ LCD controller
  • System status and maintenance interval LED indicators
  • LED indicators
  • Wi-Fi communication
  • Free Mobile Link ™ Wi-Fi Remote
  • 5 years limited warranty
  • Compatible with LTS switch



ENGINE

  • Generac G-Force Design: Maximises engine airflow for greater fuel efficiency. Ground cylinder walls and plasma moly rings provide cooler running cooler engine running and reduced oil consumption, contributing to longer engine engine life.
  • "Spiny-Lok" cast iron cylinder walls: Solid construction ensures long engine life engine life.
  • Electronic ignition / dual ignition sequence: These functions ensure a smooth start and reliable operation.
  • Full pressure lubrication: pressure lubrication on all important bearings, better performance, less maintenance and longer engine life. Now with up to 2 years / 200 hours oil change interval.
  • Low oil pressure shutdown system: The shutdown protection prevents engine damage due to insufficient oil.
  • High temperature cut-off: Prevents the motor from overheating













Additional parameters

Category: Generators
Weight: 176 kg
Nominal maximum power - LPG, VA: 10000
Nominal maximum power - CNG, VA: 10000
Rated AC frequency, Hz: 50
Nominal voltage, V: 230
Number of phases: 1
Power factor, cos ϕ: ϕ 1
Engine manufacturer: Generac
Engine model: G-FORCE/1000 SERIES
Valve arrangement: OHV
Engine cooling: 2
Displacement, cm³: 999
Compression ratio: 9.5:1
Engine start: Electric
Starter, V: 12
Controller system: Electronic
Operating engine speed, rpm: 3000
Oil capacity with filter installed, l: 1,8
Fuel: natural gas or LPG
Natural gas: load 50%, m³/h: 3,51
Natural gas: load 100%, m³/h: 5,30
Liquefied propane: load 50%, l/h: 4,79
Liquefied propane: load 100%, l/h: 7,62
Voltage regulation system: AVR
Number of motor poles: 2
MAX current (LPG), A: 43,48
MAX current (Natural gas), A: 43.48
Circuit breaker, A: 40
Length (D), mm: 1232
Width (W), mm: 648
Height (H), mm: 733
Weight, kg: 176
Maximum guaranteed noise level (LWA), dB(A): 95
Noise level at 7 m under normal load, dB(A): 63
Noise level in Quiet-Test training mode, dB(A): 54
