MASTER DF 30 P axial fan

Brand: Master
Air flow - up to 10 200 m³/h
Fan - Axial
Power consumption - 315 W
Availability In stock within 3 working days
Code: 4604.009
710 € 586,80 € excl. VAT
MASTER DF 30 P axial fan
Brand: Master

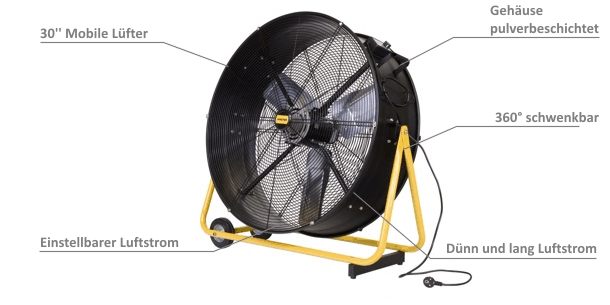

Fan MASTER DF 30

  • Adjustable airflow
  • 360 rotation (except DF 48P)
  • DF 20P can be swiveled 360° horizontally and vertically
  • DF 20P can be mounted on both walls and ceilings
  • Powder-coated housing

desc_ventilator_df30

  • Increases ventilation in rooms with unpleasant odors
  • Rooms where high air circulation is required
  • To support heating and cooling systems
  • Adjustable airflow for photo studios and theaters
  • Engine cooling in test centers

master_df30_36_01master_df30_36_02master_df30_36_03master_df30_36_04master_df30_36_06



Operations Manual







Additional parameters

Category: Fans
Weight: 36 kg
Air flow, m³/h: 9,180/10,200
Fan: Axial
Outlet diametre, cm: 81.5
Fan speed: 2
Power consumption, W: 280/315
Power supply, V/Hz: 220-240/1ph/50
Protection: IP44
Product size (l x w x h), mm: 910 x 350 x 935
Box size (l x w x h), mm: 935 x 365 x 955
Net/gross weight, kg: 32/36
