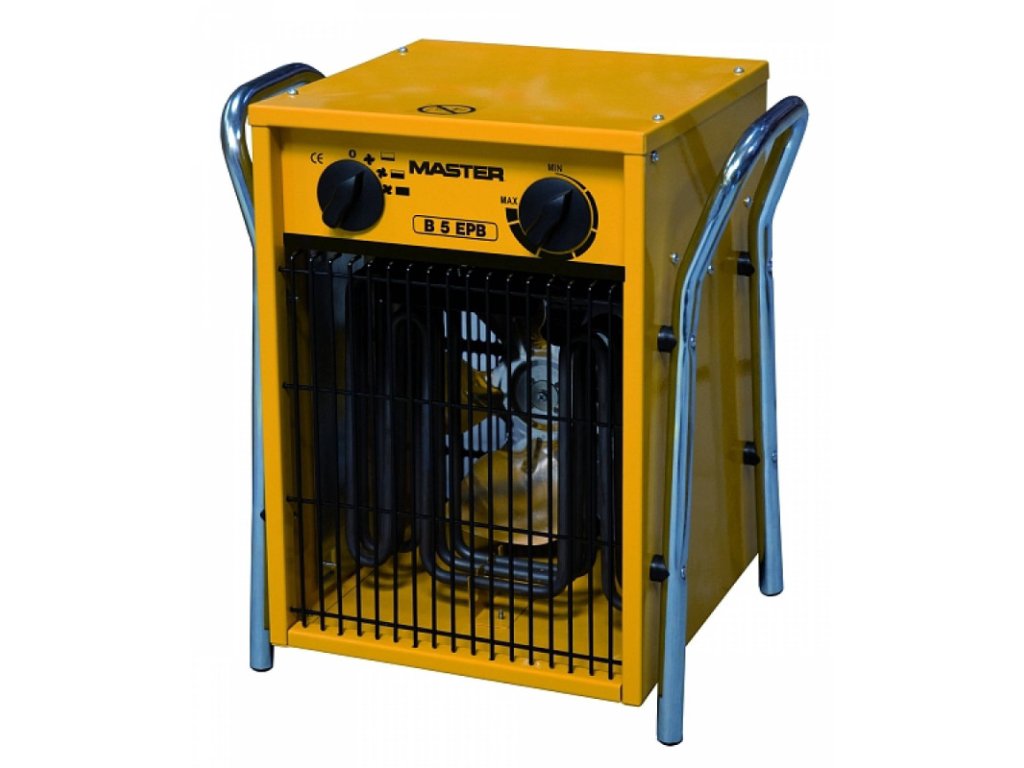

MASTER B 5 EPB Electric heater
Heating power: 2,5/5 kW
Air flow: 510 m³/h
Temperature range: 5-35 °C
The design of the straight heater is very robust and long-lasting. The heating elements are made of stainless steel, the motor is equipped with a thermostat with an overheating protection.
Master B5 EPB electric heaters are suitable for heating medium-sized spaces, they work without smoke, odour and humidity, do not consume oxygen during operation and have low noise level.
Unlike the ECA series, the Master EPB series has the function of aftercooling the heating coils - running the fan after switching off the heater ensures optimal use of the remaining heat.
The Master B5 EPB is designed for three-phase operation, with a 400 V / 16 A five-pin socket on the heater.
The package of the Master B5 EPB does not include the power cable, which must be purchased separately (five-pin)!
Master B5 EPB has a built-in room thermostat that switches the heater on when the room temperature drops below the selected value.
- quality steel construction
- safe operation - the stainless steel heating coils are not hot or hot during operation
- low noise level
- 100% efficiency (power = input)
- IP24 protection
- built-in thermostat (5 - 35°C) with overheating safety
- practical handle for easy handling
- selectable power - 4 switch positions: off / fan / 2.5 kW / 5 kW
Possible use:
• Enclosed spaces
• Agriculture-Buildings-Buildings-Sheds-Offices-Offices-Warehouses
• Recommended for painters, plasterers, tilers, plumbers, etc.
Additional parameters
| Category: | Electric heaters |
|---|---|
| Weight: | 7.3 kg |
| Heating power, kW: | 2.5/5 |
| Heating power, Btu/h: | 8,530-17,000 |
| Heating power, kcal/h: | 2,150-4,300 |
| Air flow, m³/h: | 510 |
| Power supply, V/Hz: | 400/3ph/50 |
| Plug (male) from heater side: | 16A/5P |
| Rated current, A: | 7.2 |
| Switch pos. 1: | Off |
| Switch pos. 2: | Fan |
| Switch pos. 3/4, kW: | 2.5/5.0 |
| Thermostat control: | Included |
| Temperature range, °C: | 5-35 |
| Protection class: | IP24 |
| Product size (l x w x h), mm: | 310 x 360 x 380 |
| Box size (l x w x h), mm: | 380 x 330 x 440 |
| Net/gross weight, kg: | 6.4/6.8 |
