MASTER B 30 EPR Electric heating

Brand: Master

Heating power: 15/30 kW
Air flow: 3.500 m³/h
Temperature range: 25 °C

Availability In stock (1 package)
Code: 47200
1 880 € 1 553,70 € excl. VAT

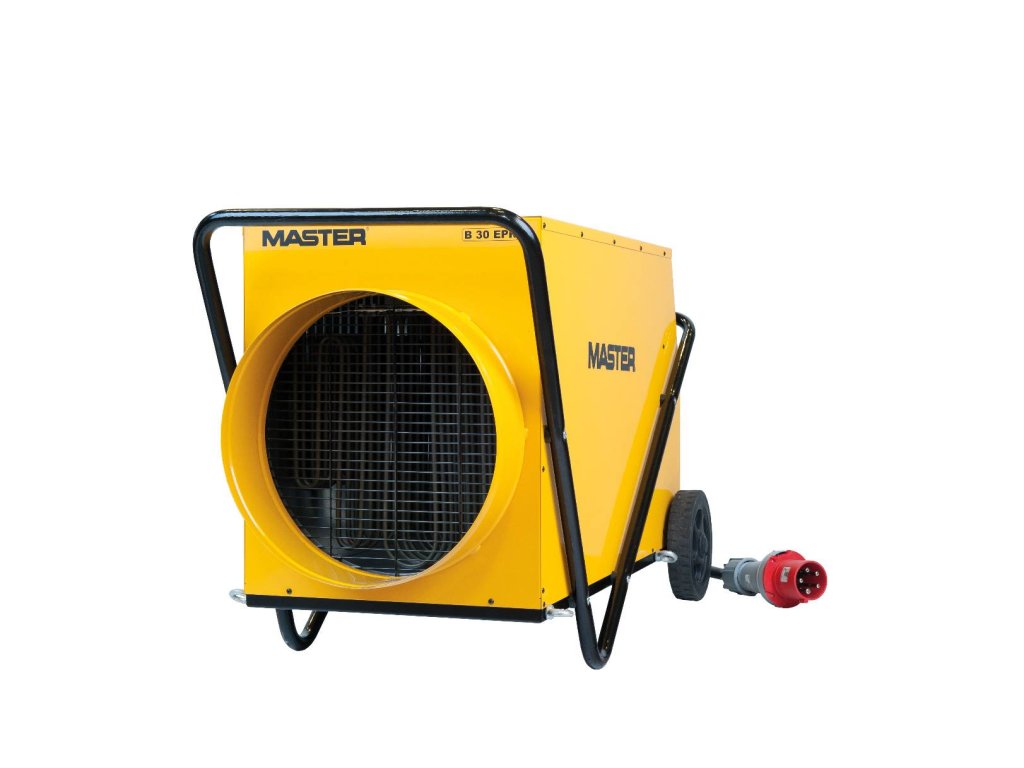

MASTER B 30 EPR Electric heating
Brand: Master

Electric heater Master B 30 EPR with an output of 15-30 kW

Professional electric direct heating heater, especially suitable for heating larger spaces. Among its main advantages is the possibility of connecting a flexible hose with a length of 7.6 m (407 mm diameter), which extends its use to areas with increased fire risk. In addition, the Master B30 EPR electric heater can be equipped with a room thermostat for more effective heating control.


Characteristics:

  • works without smoke, odour and moisture
  • 100% efficiency
  • safe operation - the steel heating coils are not hot or hot during operation
  • does not consume oxygen
  • low noise level
  • IP24 protection
  • quality steel construction
  • built-in thermostat with overheat protection
  • handle for easy handling
  • adjustable power - 4 switch positions: off / fan / 15 kW / 30 kW



Optional accessories:

  • Room thermostat TH 5 with cable 3 m
  • Room thermostat TH 5 with 10 m cable
  • Flexible wires 7,6 m, Ø 407 mm
  • Flexible conductors 15 m, Ø 407 mm
  • Power cable - 5 m
  • Power cable - 10 m

Description:

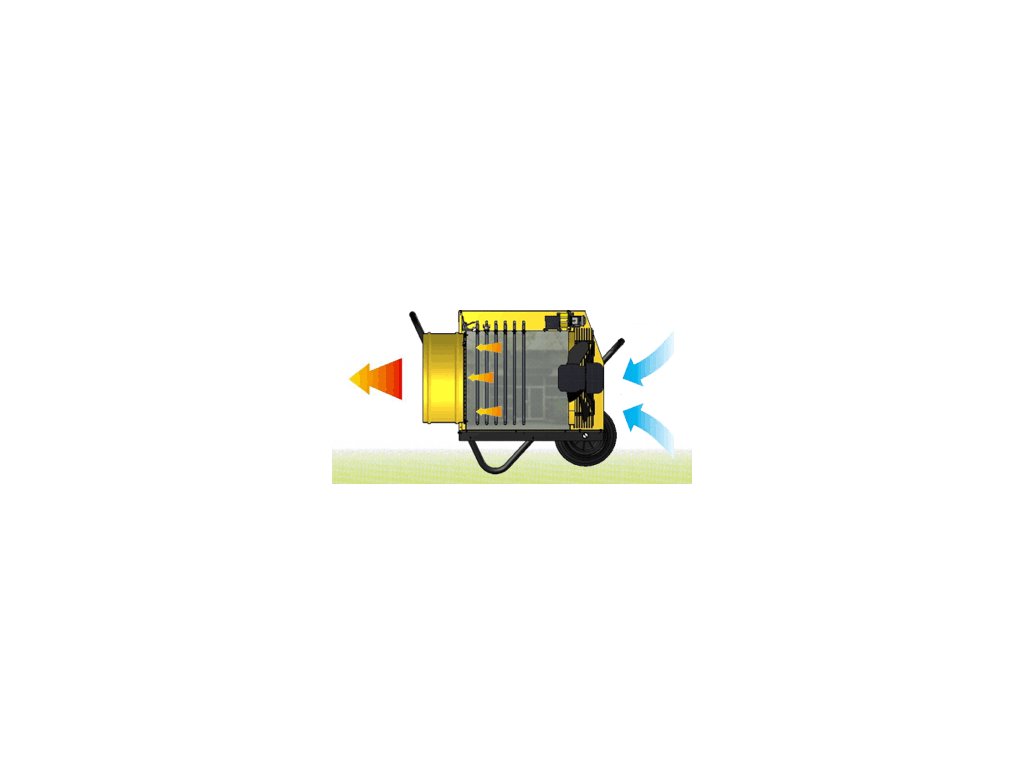

Heater - air flow


Usage:



garages, warehouses, workshops, apartments, offices, cellars



Operations Manual









Additional parameters

Category: Electric heaters
Warranty: 3 Years
Weight: 63 kg
Heating power, kW: 15/30
Heating power, Btu/h: 51,200-102,400
Heating power, kcal/h: 12,900-25,800
Air flow, m³/h: 3,500
Power supply, V/Hz: 400/3ph/50
Plug (male) from heater side: 63A/5P
Rated current, A: 43.5
Switch pos. 1: Off
Switch pos. 2: Fan
Switch pos. 3/4, kW: 15/30
Thermostat control: Optional TH5
Temperature range, °C: < 25
Protection: IP24
Product size (l x w x h), mm: 1030 x 580 x 680
Box size (l x w x h), mm: 1050 x 600 x 820
Net/gross weight, kg: 53/63
