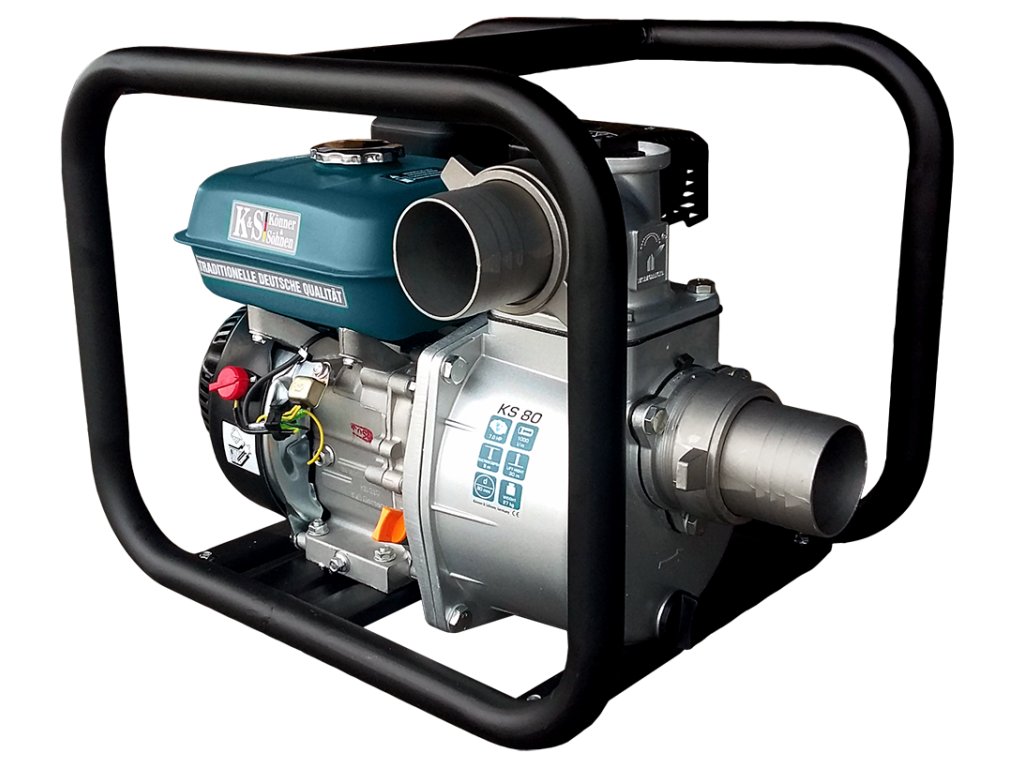

Könner & Söhnen Water pump KS 80
| Maximum flow rate | 1000 l/min |
| Nominal speed | 3600 RPM |
| Max. lifting height | 30 m |
| Max. suction depth | 8 m |
| Engine model | KS 210 |
| Engine type | Gasoline four stroke |
| Engine power | 7.0 HP |
| Engine volume | 208 cm3 |
| Starter | manual |
| Fuel tank | 3.6 l |
| Dimensions | 530*425*430 mm |
| Net weight | 29 kg |
Könner & Söhnen Water pump KS 80
The water pumps for clean water are ideal for country houses, villas and other areas where water needs to be pumped from the basement, well bore or other flooded areas.
Before the pump-down process is triggered, the water pump must be filled with clean water. After starting the engine, let the water pump run for another 30 seconds and then turn it off. Then turn off the water pump and fill it additionally with water to increase its productivity and service life.
Features:
- Commercial 4 stroke engine, manufactured under licence DIMAX Int. GmbH, Germany.
- Reinforced steel frame of 32 mm protects the pump motor from damage and facilitates transport.
- Compact size and low weight.
- The housing is made of high-quality aluminium, which makes the pump corrosion-resistant, temperature-resistant and dimensionally stable.
- Efficient fuel consumption.
- High performance.
POWERFUL MOTOR K&S
The engines in the K&S product range are manufactured under licence from Könner & Söhnen. This is a result of several long-lasting multi-stage tests. The engines from Könner & Söhnen are reliable, powerful, economical and comply with European quality standards..
RELIABLE BRAND ENGINES
High-performance engines from K&S meet the latest EURO V exhaust emission standards. Each engine has the "K&S" company logo and an individual serial number. This allows us to monitor production and service quality.
EQUIPMENT
Motor pumps from Könner & Söhnen are equipped with an oversized steel fuel tank that extends the running time without refilling. Made of high-strength aluminium, the full cast housing is resistant to corrosion, temperature effects and deformation.
VIBRATION DAMPER
All motor pumps from Könner & Söhnen are equipped with vibration-reducing rubber feet. Thanks to the rubber damper, the running motor pump does not damage the floor covering and leaves no scratches on the frame surface.
Additional parameters
| Category: | Water pumps |
|---|---|
| Weight: | 29 kg |
| Engine model: | KS 200 |
| Engine capacity, cm3: | 212 |
| Engine power, HP: | 7 |
| Fuel tank capacity, l: | 3,6 |
| Oil sump volume, l: | 0,6 |
| Noise level Lpa (7m)/Lwa, dB: | 79/104 |
| Max. productivity, l/min.: | 1000 |
| Nominal flow rate, rpm.: | 3600 |
| Max. discharge height, m: | 28 |
| Max. suction depth, m: | 7 |
| Suction throat diameter, mm: | 80 |
| Outlet diameter, mm: | 80 |
| Net dimensions (LxWxH), mm: | 490x400x410 |
| Gross dimensions (LxWxH), mm: | 510×440×440 |
| Net weight, kg: | 26 |
| Gross weight, kg: | 28 |
