Könner & Söhnen Diesel Generator KS 9300 DE 1/3 ATSR SUPER S (EURO V)

Könner & Söhnen Diesel Generator KS 9300 DE 1/3 ATSR SUPER S (EURO V)

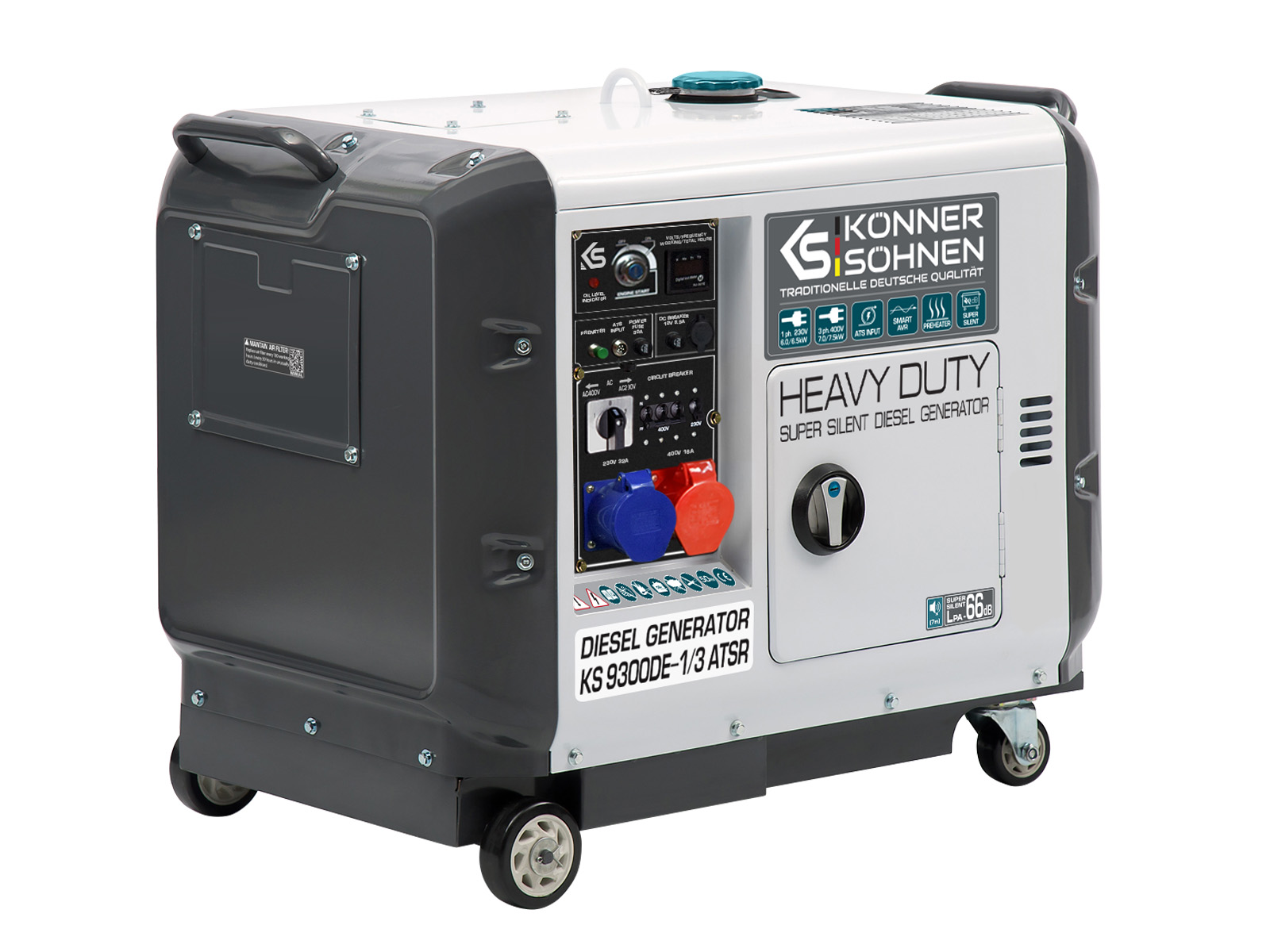

The KS 9300DE-1/3 ATSR Super S diesel generator is ideal for use in areas where there are frequent power interruptions. It is equipped with an ATS output for connecting an automatic transfer switch (ATS) that allows automatic start-up in the event of a power interruption, which is advantageous for use in the private sector as well as in agriculture (farms, greenhouses, warehouses), in administrative and educational facilities and many others. It is essential that building power systems are equipped with an emergency power source that can supply lighting and ventilation systems as well as servers storing important information in the event of a failure of the main grid.

HIGH PERFORMANCE ENGINE

Every "Könner & Söhnen" engine has a power reserve. High-performance Könner & Söhnen motors safely deliver the specified power! The automatic boost control (AVR) is used in Könner & Söhnen diesel generators. It ensures a constant output voltage of 230 V and is equipped with a short-circuit protection system.

VTS SYSTEM

The 2-in-1 universal generators are equipped with a unique voltage switch system (VTS) that allows the generator to be used in both single-phase (230 V) and three-phase (400 V) mode with virtually no loss of power. Each mode has its own circuit breakers. There is no need to buy two separate generators for single-phase and three-phase loads.

ATS CONNECTION - KS ATS 4/63HD

The generator is equipped with a 6-pin connection socket for connecting an ATS system. The ATS unit (automatic transfer to emergency power) automatically starts the generator and transfers the load when the main power supply is interrupted and automatically stops the generator when the main power supply is restored.

INCREASED ENGINE LIFE

HEAVY DUTY diesel generators are not only suitable as a back-up power source, but also for full continuous operation. The engine life is more than 3000 operating hours, which is confirmed by multi-hour or -stage tests and a warranty. However, the motors are of course as powerful as this when properly operated and routinely maintained.

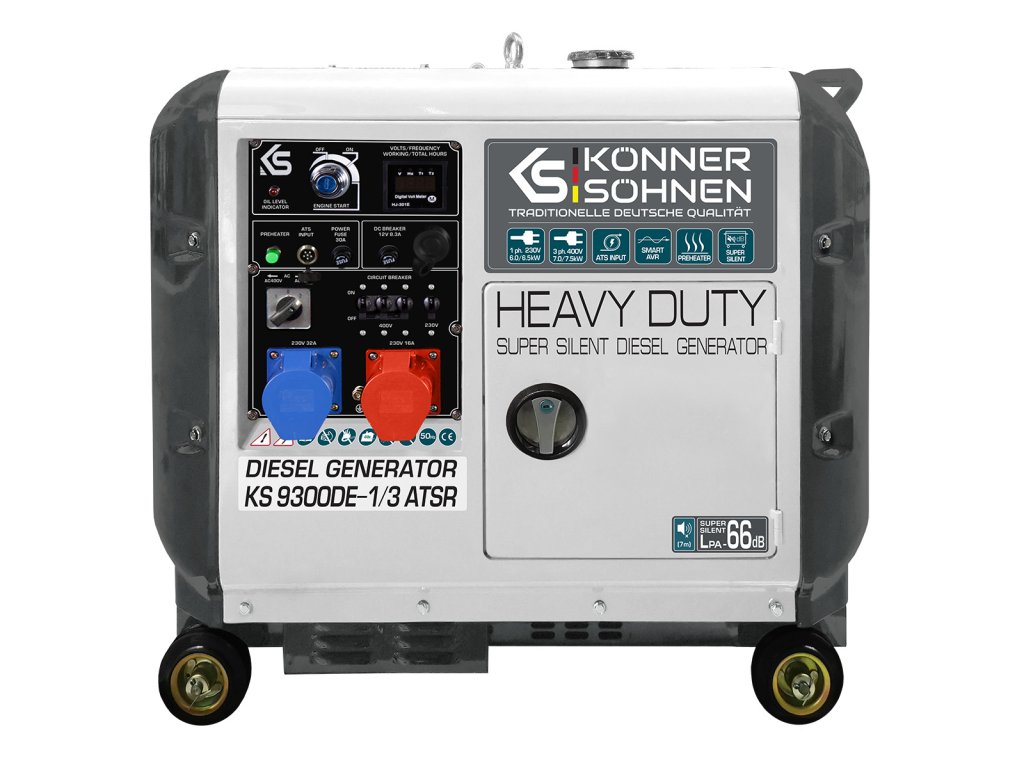

USER-FRIENDLY ERGONOMIC CONTROL PANEL

The user-friendly ergonomic control panel allows you to easily operate the entire group, requiring no additional skills. A modern intelligent LED display will always show you the operating hours, frequency or voltage values. The information displayed will help you to properly assess the charge on the unit and perform the maintenance of the generator on time, thus extending the life of the unit.

PREHEATER

All HEAVY DUTY diesel generators are equipped with a preheating function (PREHEATER), which allows you to start the generator effortlessly in winter.

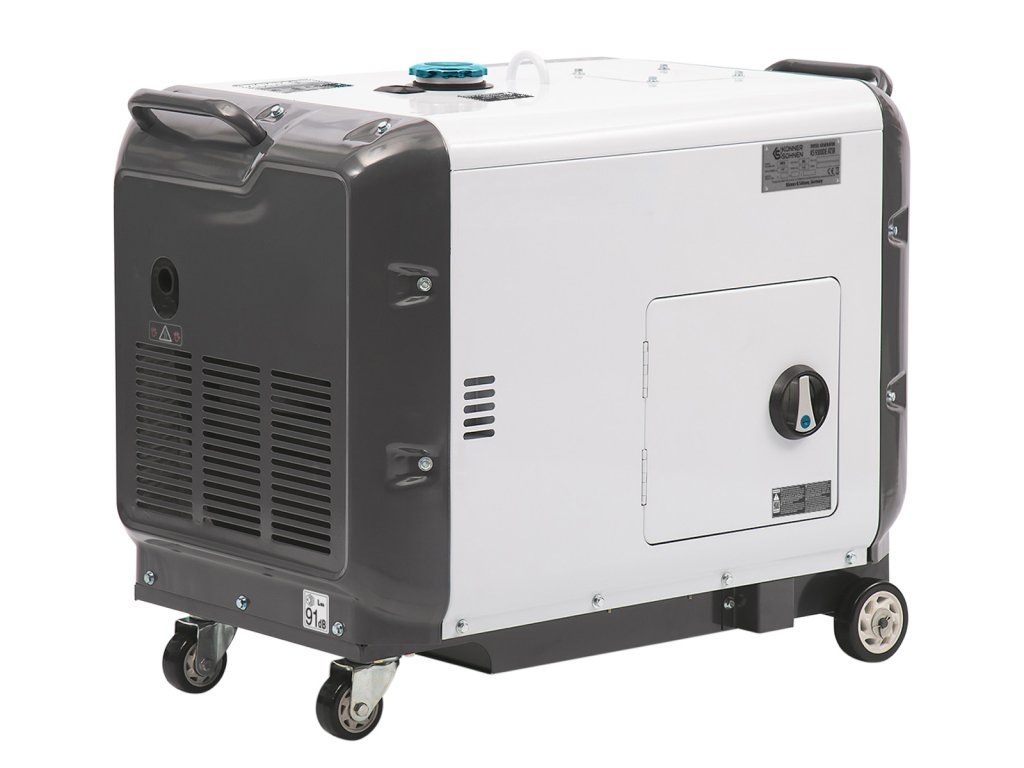

VANDAL-PROOF SOUND-PROOF HOUSING

The KS 9300 series power units are equipped with a vandal-resistant housing with double sound insulation. These models have improved heat distribution inside, which also increases their durability.

TRANSPORT KIT

The generator housing is equipped with a transport kit that includes 4 wheels and 2 carrying handles for easy handling.
