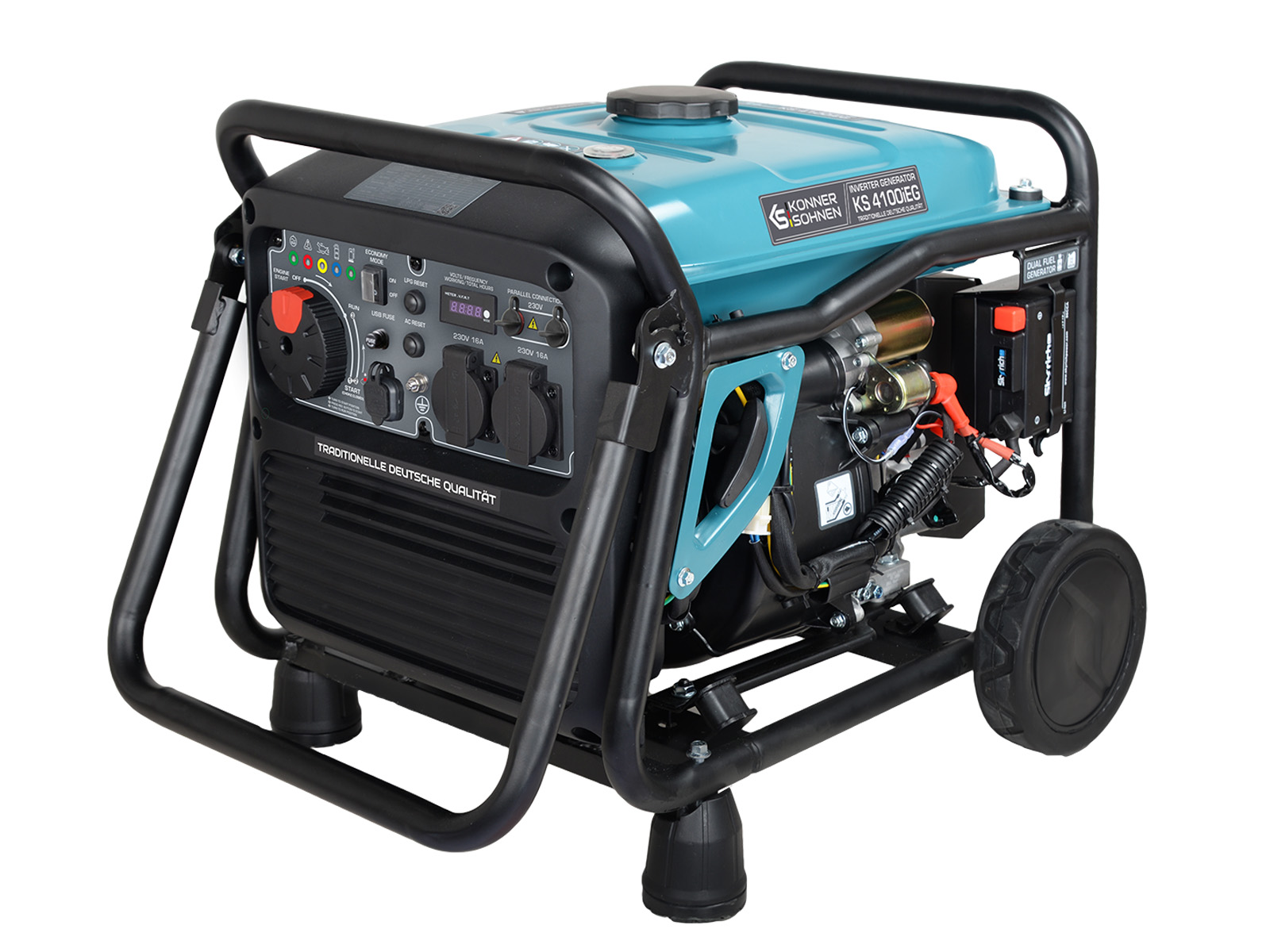

Könner & Söhnen LPG/Gasoline Inverter Generator 4100i EG
Maximum power: 4 kW
Nominal power: 3,6 kW
Weight: 44 kg
Max current: 17.4 A
Könner & Söhnen LPG/BENZIN INVERTER Generator 4100i EG
Gasoline Inverter generators are a user-friendly and portable power source. The range of inverter generators includes models with a power range from 1.8 to 8.0 kW. Double conversion of electrical energy delivers a pure sine wave and a frequency of 50 Hz, which are ideal for the reliable operation of sensitive and high-precision electronics.
All models are based on robust engines that meet all European quality standards, including the EURO V exhaust emission standard. Engines of K&S inverter generators feature an ECO mode that allows the generator to be used at low speeds and reduces fuel consumption by up to 50%.
PURE SINE WAVE
The built-in microprocessor-controlled control unit ensures that the technical processes of the power generator are controlled and monitored at a stable frequency of 50 Hz and a voltage of 230 V.
ROBUST ENGINE
The robust engine from Könner & Söhnen meets all European quality standards, including the latest EURO 5 emission standards. The robust K&S engine is marked with an individual serial number, which can be used to track production and service quality. The powerful copper-wound alternator and high-performance motor guarantee trouble-free and long-lasting operation. It is recommended for equipment that is sensitive to power quality (boilers, medical equipment, audio equipment, etc.).

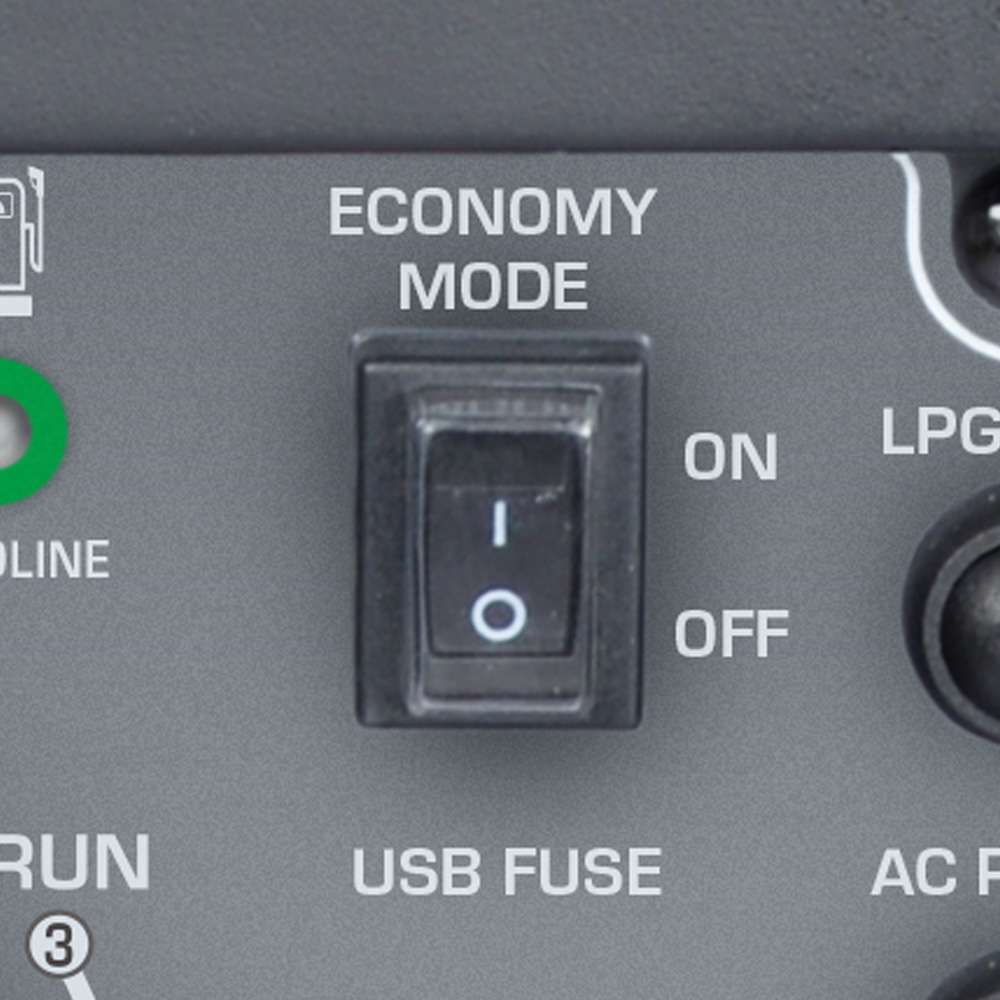

ECO MODE
The ergonomic control panel is equipped with an ECO mode switch. This mode reduces fuel consumption by up to 50% at low loads thanks to lower engine speeds.
EASY 3in1 ENGINE CLEANING
The universal 3-in-1 engine switch combines the functions of a fuel valve, throttle valve and electric starter for the easiest and most convenient starting of an electric generator.

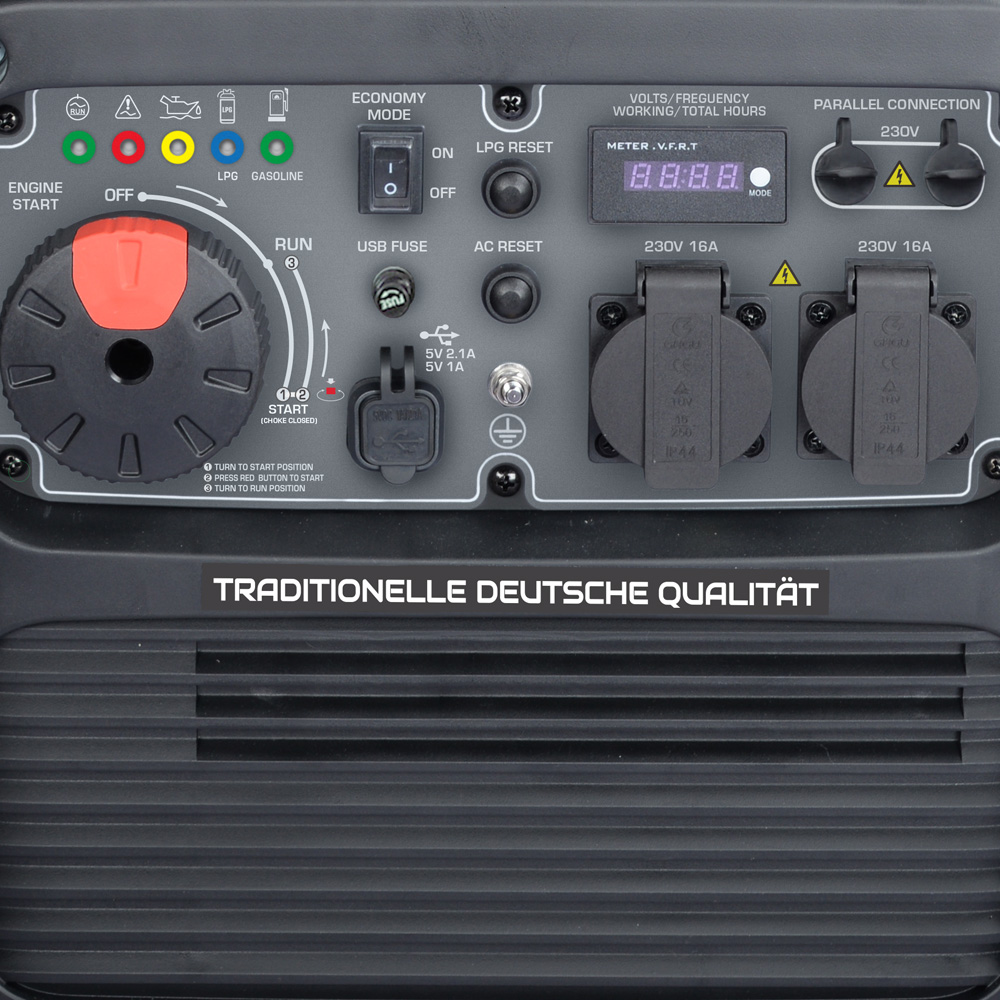

ERGONOMIC CONTROL PANEL
Convenient arrangement of all basic functions: multifunction LED display (voltage, frequency, operating hours counter), operating status indicators: overload and short circuit protection, oil shortage protection, reset button for resetting the control system and restoring power, connection for parallel connection of power centres, two USB outputs (5V/1A, 5V/2.1A), typical 12 V car socket for various vehicle devices, gadgets and battery chargers, 230 V sockets and earthing terminal.
ALTERNATOR WITH 100% COPPER WINDING
Könner & Söhnen power units are equipped with a high-quality synchronous alternator with 100% copper winding. Only the copper winding can withstand the highest voltage overloads without damage and thus guarantees a permanent and reliable operation of the power generator.

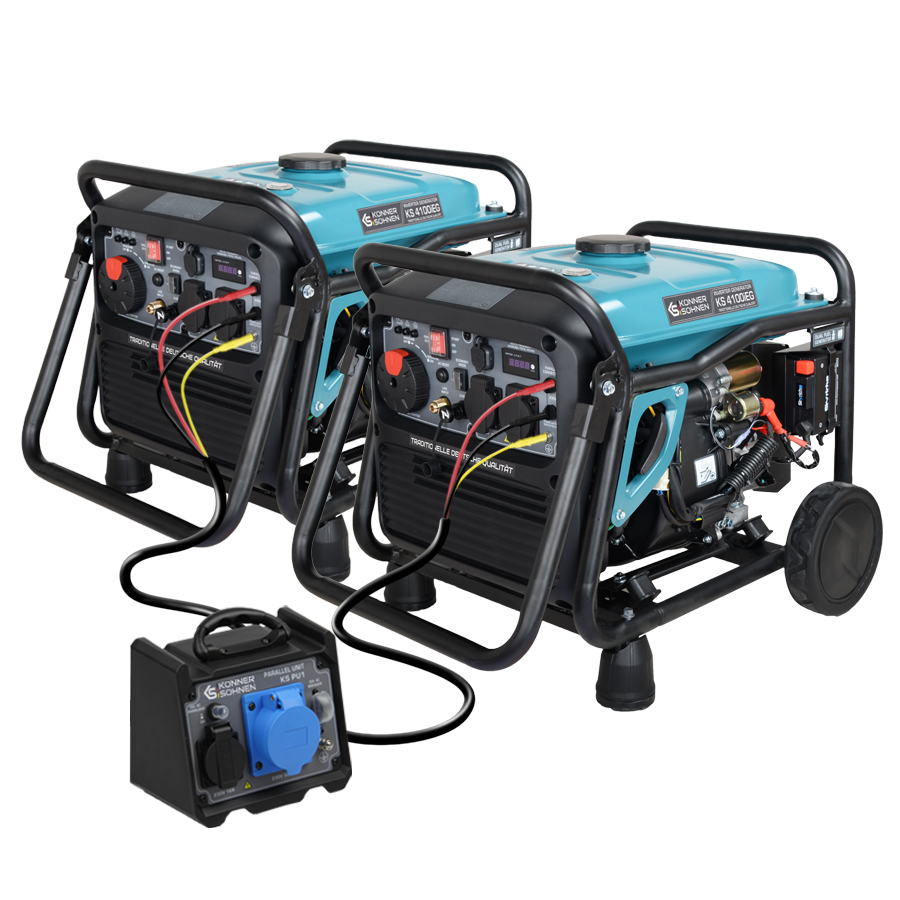

PARALLEL CONNECTION - KS PU1
Parallel connection doubles performance. You can pair individual power units and connect more powerful devices to them. To do this, use a parallel switching device (KS PU1) that you connect to a special output on the power station. The device is suitable for all Könner & Söhnen inverter power generators except the KS 8100 series models (KS 8100iE, KS 8100iEG, KS 8100iE ATSR).
CONVENIENT TRANSPORTATION
Running wheels make these models easier to move and allow a wider range of applications
OTHER ACCESSORIES
Included: screwdriver, spark plug wrench
ADDITIONAL ACCESSORIES CAN BE PURCHASED:
Battery charger KS B1A
Easy to use charging adapter that charges 6V/2V lead acid batteries.
Used for charging batteries for power generators, cultivators, motorbikes, boats, ATVs, etc. with capacity up to 32 Ah.
After selecting the appropriate voltage, charging starts automatically.
The automatic charger has protection against:
- Overheating,
- short-circuited,
- reverse polarity,
- overcharging the battery.
Socket adapter KS EX3M-4S
Extension cable with reel KS CR-25M
Könner & Söhnen 10W-30 engine oil
High quality semi-synthetic multigrade engine oil ULTRA Performace from "Könner & Söhnen" for gasoline and diesel engines.
Additional parameters
| Category: | LPG/Gasoline |
|---|---|
| Weight: | 40 kg |
| Weight: | 0 - 60kg |
| Nominal power: | 3,1 - 5 kW |
| ? Fuel tank capacity: | 10,1 - 20 l |
| Maximum power: | 1,7 - 4,6 kW |
| Voltage: | 230 V |
| Starter: | Manual/Electric |
| Voltage: | 230 |
| Max. power, kW: | 4.0* |
| Max. power/rated power, kW (230V): | 3.6* |
| Frequency, Hz: | 50 |
| Current, A (max): | 17.4 |
| Sockets: | 2 x Schuko 230 V |
| Starting: | Manual/electro |
| Tank size l: | 12,5 |
| Avg. working time (power 50%), h: | 8.1 |
| LED display: | Voltage, frequency, working hours |
| Noise dB(A) - depending on load: | 70/95 |
| 12V output: | - |
| USB-Outputs: | 5V/1A, 5V/2.1A |
| Engine model:: | KS 240i |
| Engine capacity cm3: | 223 |
| Engine type: | LPG/gasoline single-cylinder, four-stroke, air-cooled |
| Engine power, HP: | 7.5 |
| Paralelní zásuvka generátoru: | + |
| Crank case volume, l: | 0.6 |
| Lithium battery, Ah: | 1.6 |
| Protection: | IP23M |
| Alternator winding: | Copper |
| Net dimensions (LxWxH), mm: | 530х410х430 |
| Gross dimensions (LxWxH), mm: | 685х420х430 |
| Weight Netto: | 38 |
| Gross weight, kg: | 44 |
