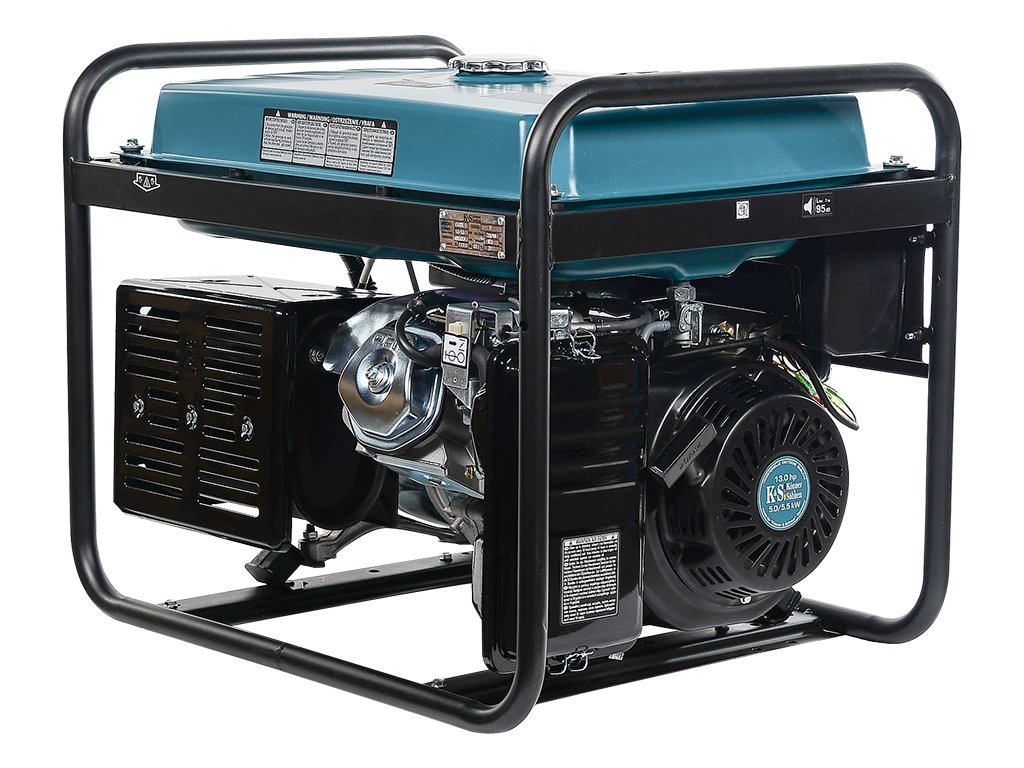

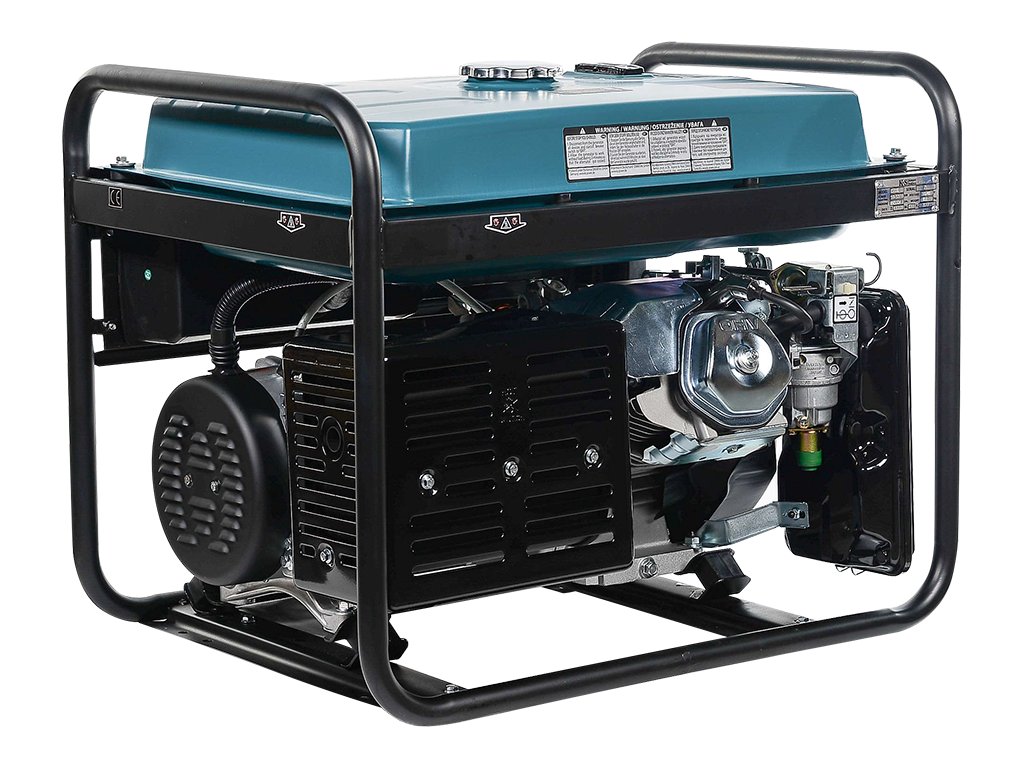

Könner & Söhnen LPG/Gasoline generator KS 7000E G
Maximum power: 5,5 kW
Nominal power: 5 kW
Weight: 80 kg
Max current: 23.91 A
Running the power plant on gas increases engine life. All necessary cylinder connections are included: the power generator is equipped with a liquefied gas hose and two pressure reducing valves; just connect the power generator to the cylinder. The power generator cannot be connected to a gas pipe. If necessary, LPG/gasoline models can be easily switched to gasoline mode. The powerful single-cylinder air-cooled K&S four-stroke engine ensures stable and reliable operation of the power generator.
The KS 7000E G series DUAL FUEL power plant works on both petrol and liquefied petroleum gas (propane-butane). Thanks to its efficiency, it is environmentally friendly and the gas drive increases the life of the engine. The powerful single-cylinder air-cooled four-stroke K&S engine ensures stable and reliable operation of the power generator.
SCOPE OF DELIVERY
The package contains everything you need to use LPG as a fuel:
1. Built-in pressure reducer that ensures the gas supply during engine operation, prevents gas leaks and terminates the gas supply when the generator is switched off.
2. A 1.5 m hose for connecting a gas bottle makes for a more convenient connection.
3. The hose is equipped with an additional pressure reducer attached to the gas bottle to increase the reliability of the gas line. It provides pressure reduction and eliminates the possibility of overloading the gas connection. Simply connect the generator to the gas bottle and start the engine.
ECO-FRIENDLY ENGINE
K&S high-performance engines comply with the latest EURO V gas standards. Each engine has an individual serial number that allows us to monitor production and service quality. The use of LPG as fuel significantly reduces the emission of harmful exhaust gases into the atmosphere.
ECONOMIC CHOICE
By using LPG as fuel, the fuel costs for operating the generator are significantly reduced and the cost difference between the petrol generator and the hybrid generator of the DUAL FUEL series from K&S quickly pays for itself.
VERSATILITY OF USE
The power plant can be used both with a portable gas container and with a stationary storage tank (gas tank). The connection must be made by a certified specialist. The pressure in the supply system must not exceed 16 bar.
SIMPLE STARTING SYSTEM
The easy start system allows you to start the engine quickly and without much effort. The more powerful models are also equipped with an electric starting system.
ALTERNATOR WITH 100% COPPER WINDING
The generators of the "Könner & Söhnen" brand are equipped with a high-quality synchronous alternator with 100% copper winding. Only the copper winding can withstand the highest voltage overloads without damage and thus ensure permanent and reliable operation of the generator.
COMFORTABLE ERGONOMIC CONTROL PANEL WITH ELECTRIC START
The comfortable and ergonomic panel makes the whole unit easy to operate and requires no additional skills. The modern intelligent LED display always shows the number of hours worked, frequency and output voltage. The information on the display helps to control the load on the equipment and ensure timely maintenance of the power unit, which extends the service life.
STEEL TANK
Könner & Söhnen power units are equipped with an enlarged steel fuel tank, which extends the operating time of the power unit without refuelling. The fuel level gauge is located on the tank for easy operation.
DAMPERS TO REDUCE VIBRATION
All Könner & Söhnen power centre models are equipped with rubber feet to reduce vibration. Thanks to the rubber shock absorber, the working electrocentrifuge will not damage the floor covering, nor will the frame finish be scratched.
Additional parameters
| Category: | LPG/Gasoline |
|---|---|
| Weight: | 80 kg |
| Weight: | 61 - 120kg |
| Nominal power: | 3,1 - 5 kW |
| ? Fuel tank capacity: | 20,1 - 30 l |
| Maximum power: | 4,7 - 7,6 kW |
| Voltage: | 230 V |
| Starter: | Manual/Electric |
| Voltage, V: | 230 V |
| Max. power, kW: | 5.5 |
| Nominal power, kW: | 5.0 |
| Frequency, Hz: | 50 |
| Current, A (max): | 23.91 |
| Sockets: | 1 x Schuko 230 V, 1 x CEE 230 V 32 A |
| Fuel tank capacity, l: | 25 |
| Average working time (50% output), h: | 17 |
| LED display: | voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB: | 70/95 |
| Socket 12V, A: | 12/8.3 |
| Engine model: | KS 390 |
| Engine type: | LPG/gasoline, single-cylinder, four-stroke, air-cooled |
| Engine power, HP/kW: | 13.0/9.56 |
| Oil sump volume, l: | 1.1 |
| Engine cylinder capacity, cm3: | 389 |
| Output power regulator: | AVR |
| 1 x Schuko 230 V, 1 x CEE 230 V 32 A: | Copper |
| Engine start: | manual/electric |
| Net dimensions (L*W*H), mm: | 680x545x550 |
| Gross dimensions (L*W*H), mm: | 700*545*590 |
| Net weight, kg: | 77.2 |
| Gross weight, kg: | 79.6 |
| Protective class: | IP23M |
