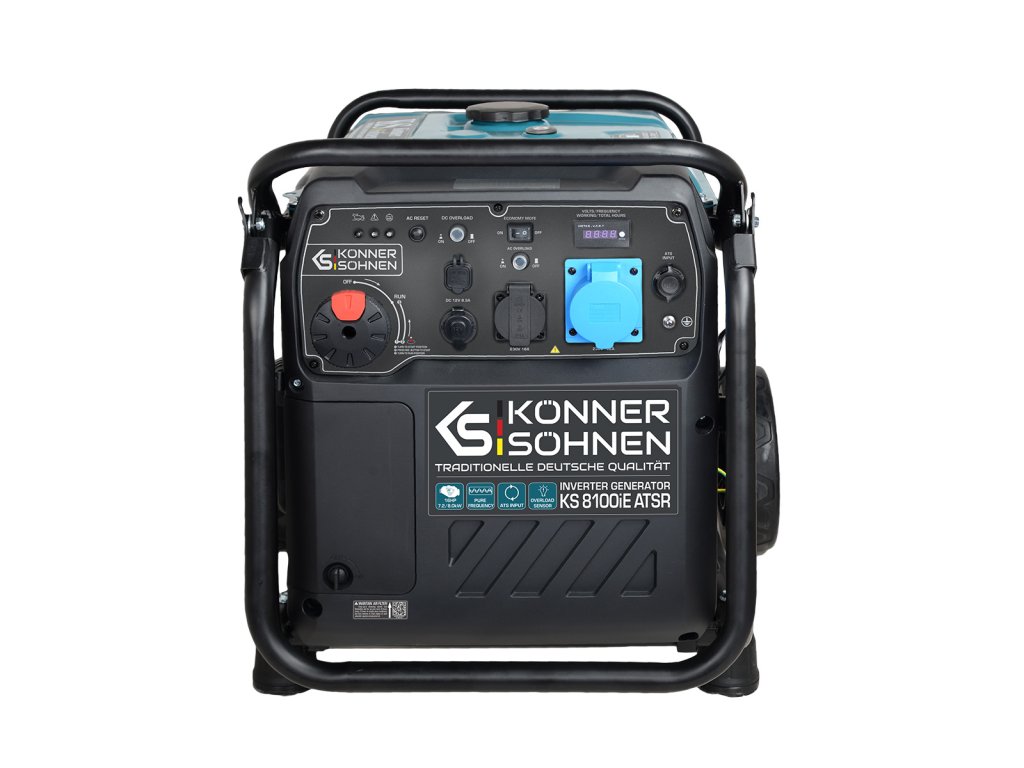

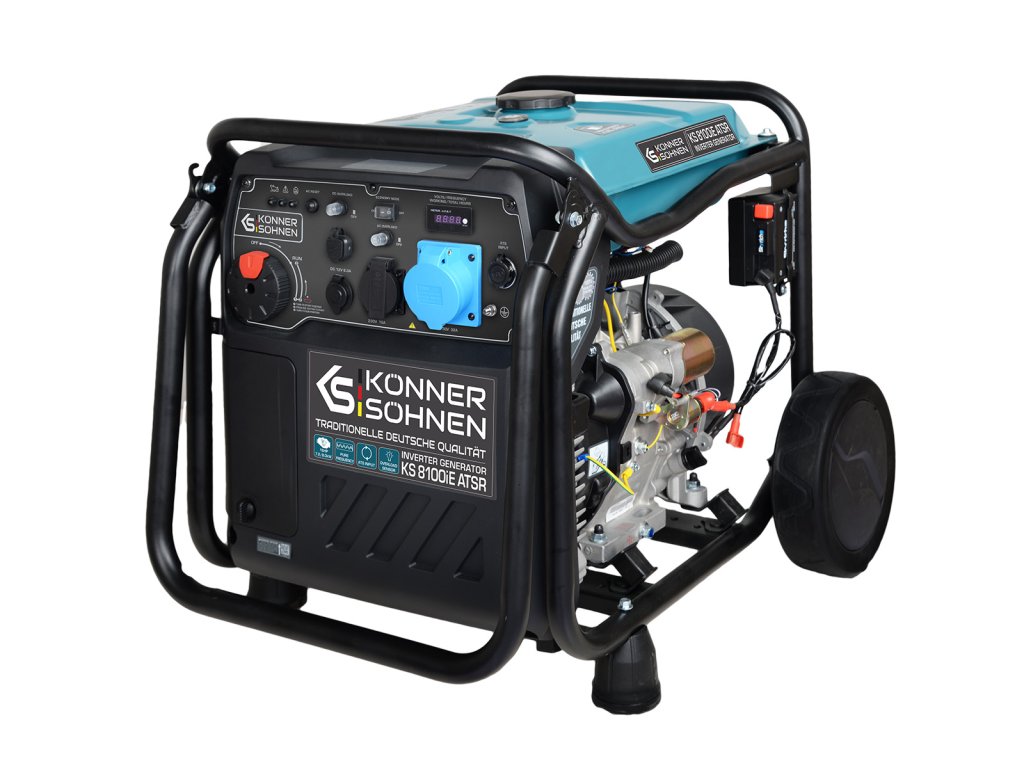

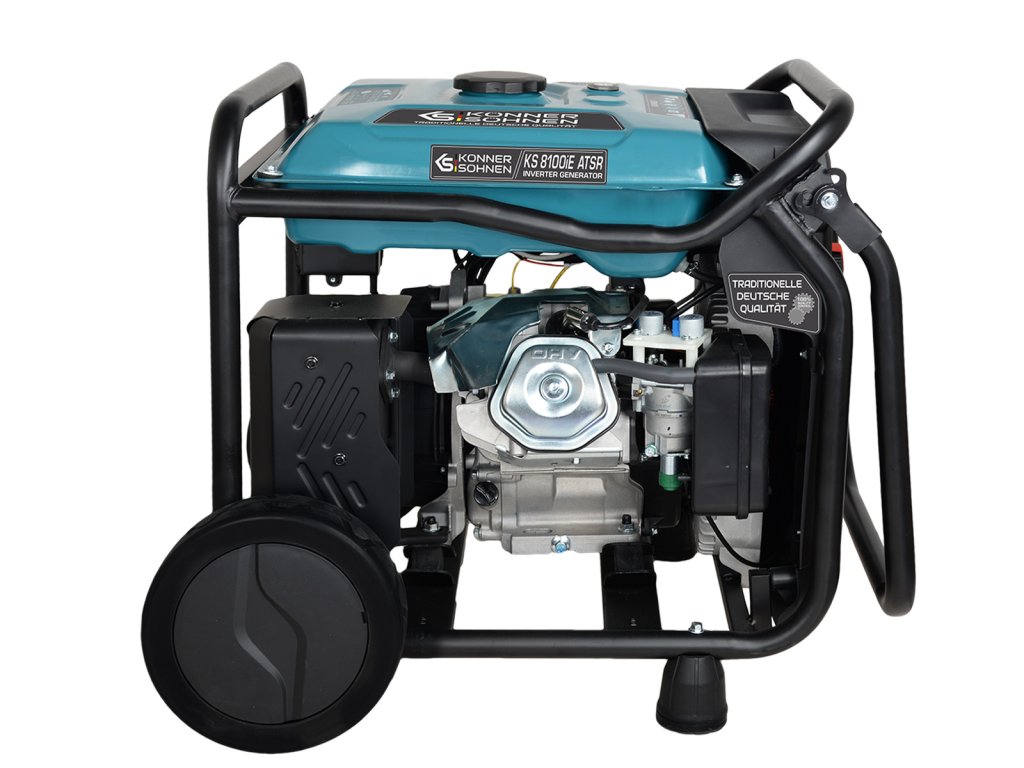

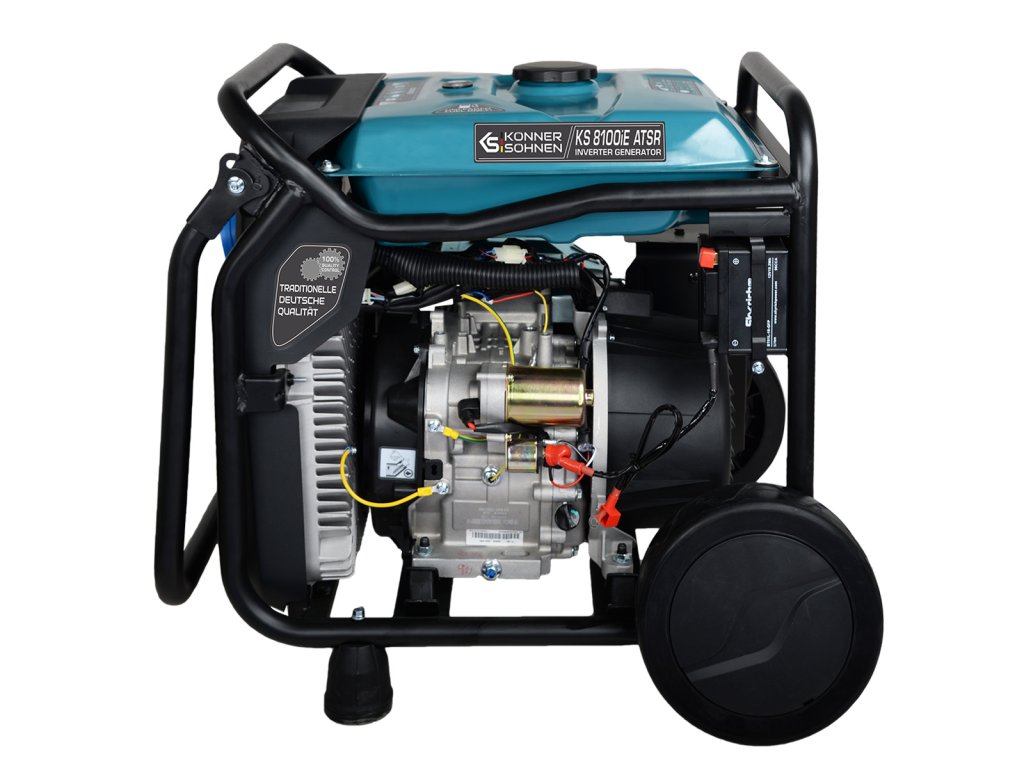

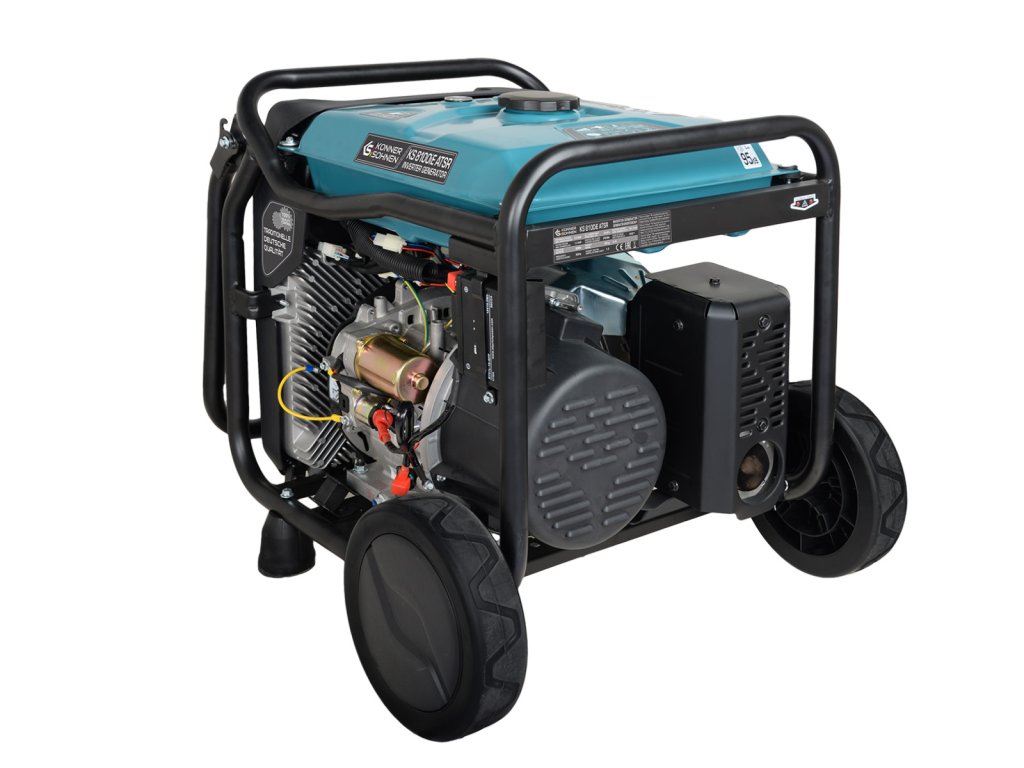

Könner & Söhnen Inverter Generator KS 8100iE ATSR
Maximum power: 8 kW
Nominal power: 7,2 kW
Weight: 71 kg
Max current: 34,8 A
Gasoline inverter power generators are a user-friendly and portable source of energy. The range of inverter power generators includes models with a power range from 1.8 to 8.0 kW. The dual power conversion provides a clean sine wave and a frequency of 50 Hz, ideal for reliable operation of sensitive and high-precision electronics.
All models are based on robust motors that meet all European quality standards, including the EURO V emission standard.The K&S inverter motors have an ECO mode that allows the use of the electric motor at low speed, reducing fuel consumption by up to 50%.
The KS 8100i E ATSR inverter power unit is a reliable power source for the operation of sensitive and high-precision electronics thanks to its pure sine wave and 50 Hz frequency. All models in this inverter series are based on robust motors that meet all European quality standards, including the EURO V emission standard.

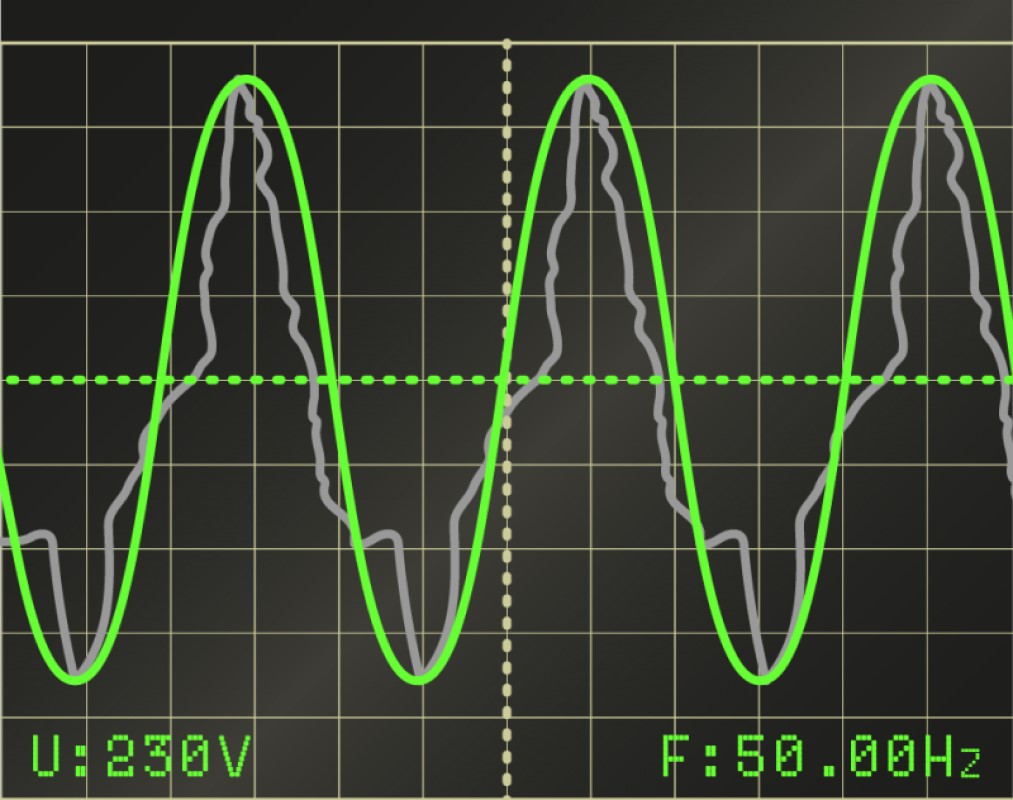

PURE SINE WAVE
Built-in control unit with a microprocessor control ensures that technical processes of the generator are controlled and managed with stable frequency of 50Hz and voltage 230V.

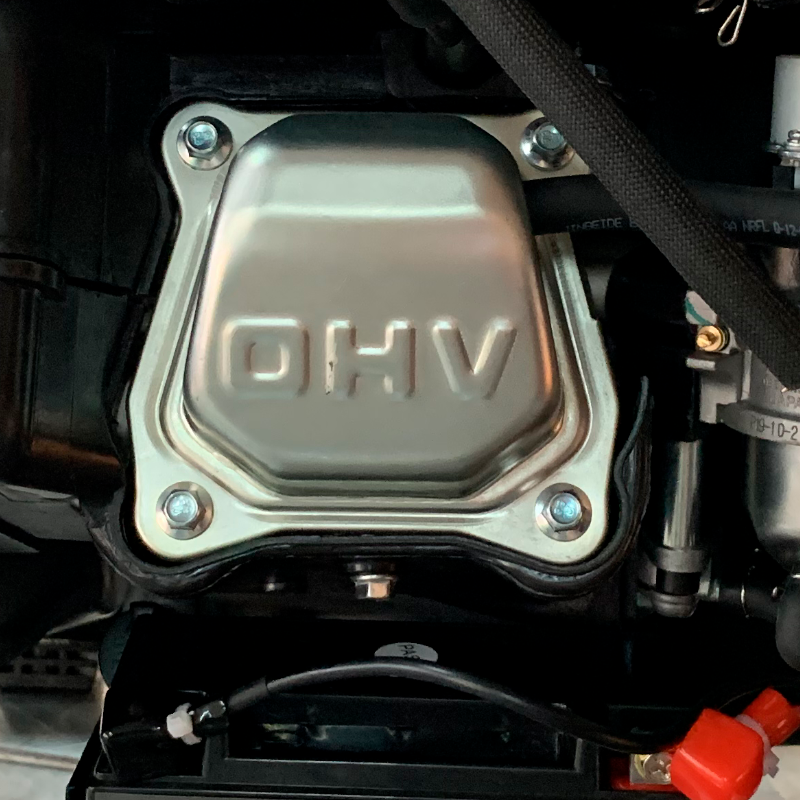

ROBUST ENGINE
The robust engine from Könner & Söhnen meets all European quality standards, including the latest EURO 5 exhaust emission standards. The robust K&S company engine is provided with an individual serial number, which can be used to monitor production and service quality. The powerful alternator with copper winding and the high-performance motor guarantee trouble-free and durable operation. It is recommended for appliances that are sensitive to the quality of energy consumption (boilers, medical equipment, audio equipment, etc.).

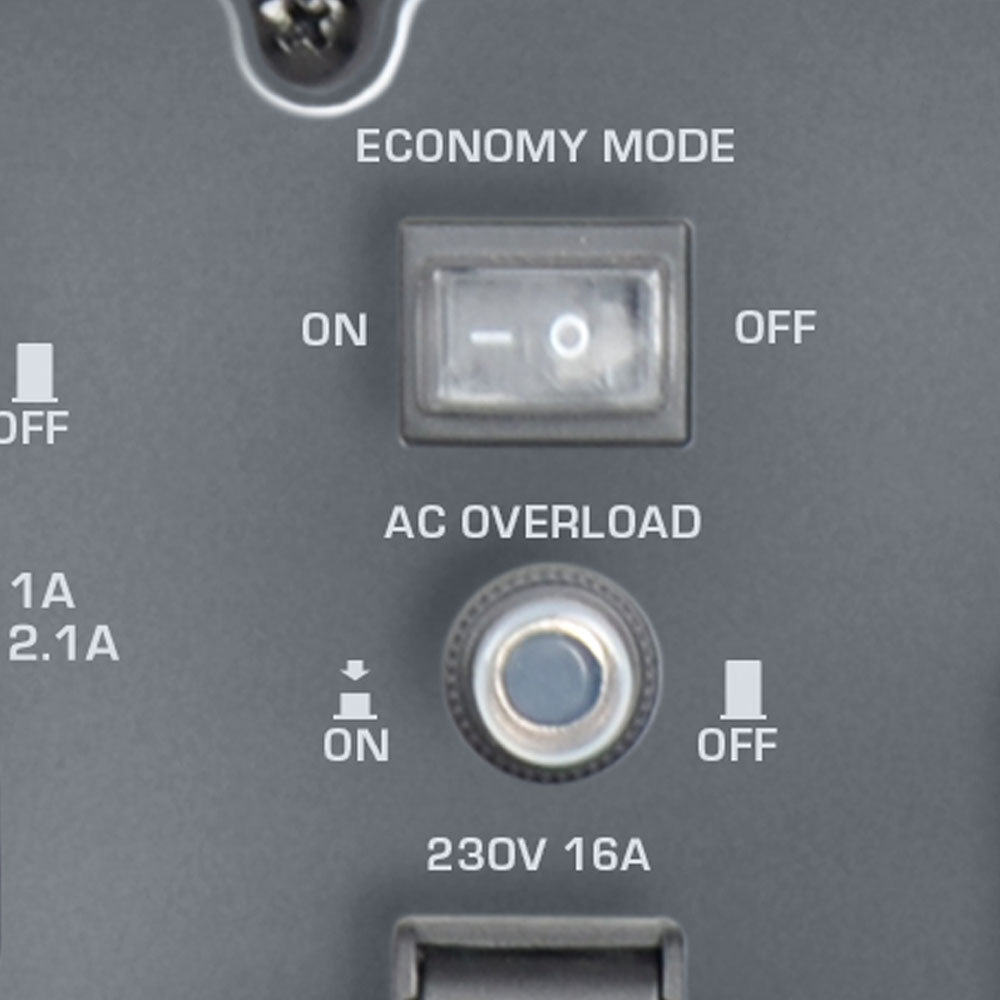

ECO MODE
The ergonomic control panel is equipped with an ECO mode switch. This mode reduces fuel consumption by up to 50% for small loads due to lower engine speeds.

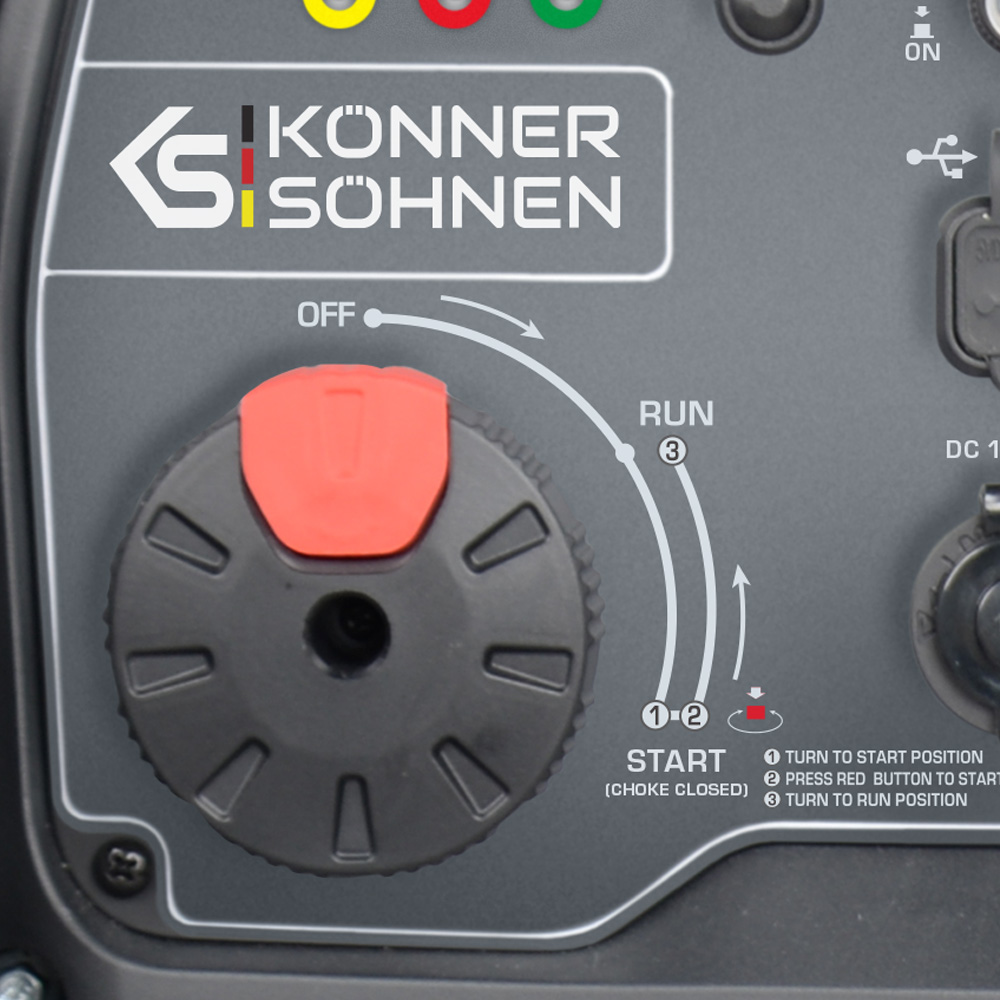

3-IN-1 EASY ENGINE START
The 3-in-1 universal engine switch for the easiest and most convenient generator start combines the functions of a fuel valve, a starter flap and an electric starter.

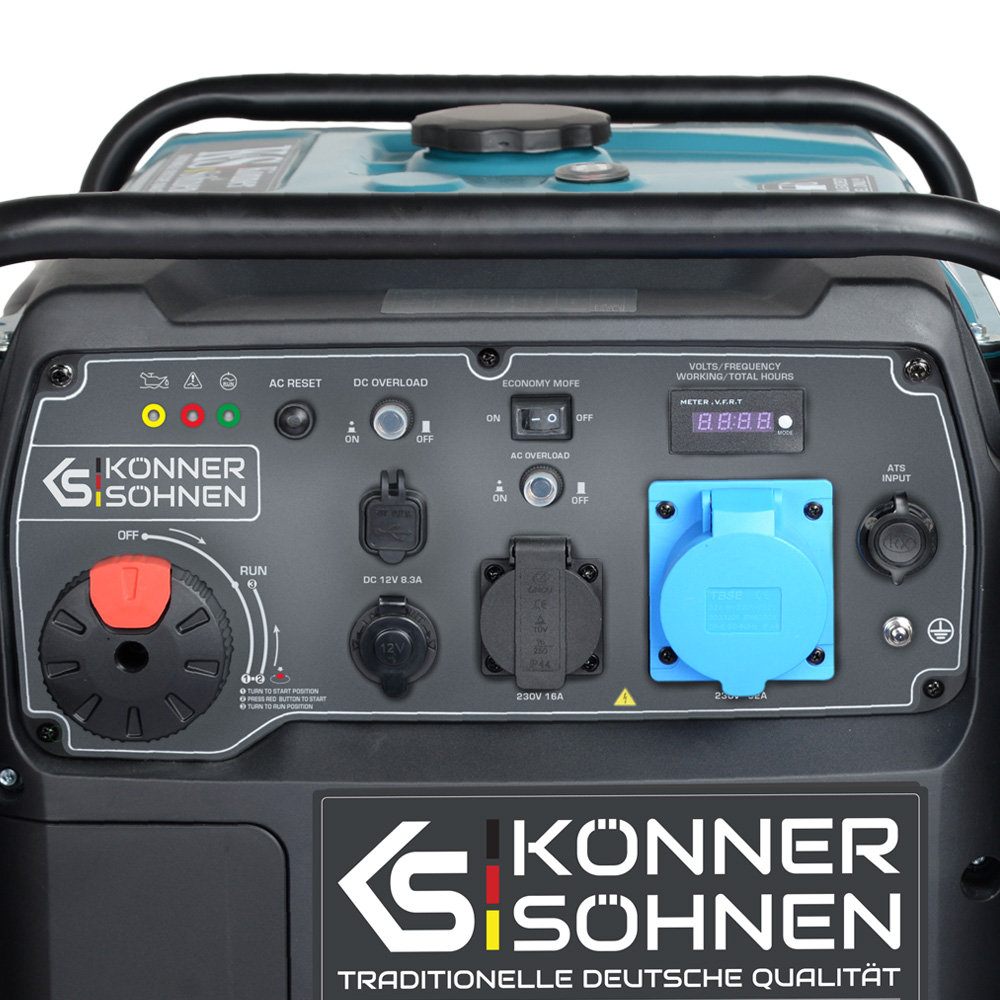

ERGONOMIC CONTROL PANEL
Convenient arrangement of all basic functions: multifunctional LED display (voltage, frequency, operating hours counter), indicators of operating status: overload and short-circuit protection, low oil protection, reset button for resetting the control system and restoring the power supply, connection for parallel connection of the generators, two USB outputs (5V/1A, 5V/2.1A), typical 12 V vehicle socket for a variety of vehicle devices, gadgets and battery charging, 230 V sockets and earth terminal.
The ATS (automatic transfer switch) unit automatically starts the generator and transfers the load to it when the main power supply is disconnected, and automatically stops the generator when the central power supply is restored. The ATS output is equipped with an 8-pin connector for connecting the KS ATS 4/25 Gasoline ATS unit.

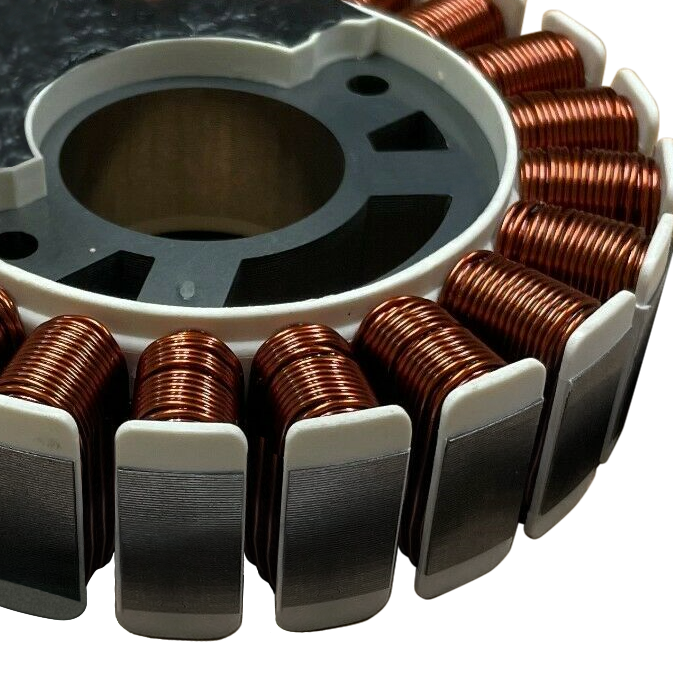

ALTERNATOR WITH 100% COPPER WINDING
Generátory značky Könner & Söhnen jsou vybaveny vysoce kvalitním synchronním alternátorem se 100% měděným vinutím. Pouze měděné vinutí odolává bez poškození nejvyšším napěťovým přetížením a zajišťuje tak trvanlivý a spolehlivý provoz generátoru.

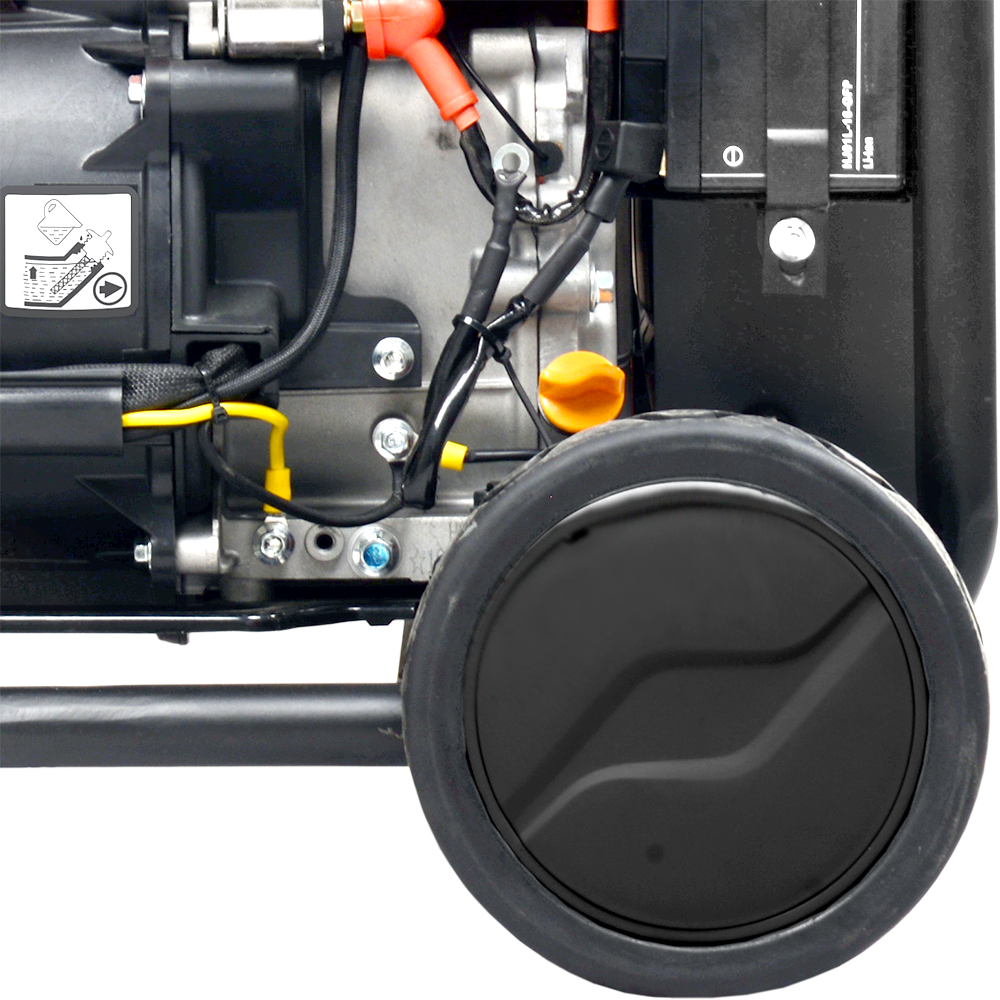

CONVENIENT TRANSPORT
Transport wheels ensure the easy movement and extended application range of these models.
OTHER ACCESSORIES
Included: screwdriver, spark plug wrench
ADDITIONAL ACCESSORIES CAN BE PURCHASED:
Battery charger KS B1A
Easy-to-use charging adapter that charges 6V/2V lead-acid batteries.
It is used for charging batteries for power generators, cultivators, motors, boats, ATVs, etc. with a capacity of up to 32 Ah.
After selecting the appropriate voltage, charging starts automatically.
The automatic charger has protection against:
- overheating
- short-circuit
- reverse polarity
- overcharging the battery
Socket adapter KS EX3M-4S
Extension cable with reel KS CR-25M
Könner & Söhnen 10W-30 engine oil
High quality semi-synthetic multigrade ULTRA Performace engine oil from "Könner & Sons" for gasoline and diesel engines.
Additional parameters
| Category: | Inverter |
|---|---|
| Weight: | 68 kg |
| Voltage, V: | 230 |
| Max. power, kW: | 8,0 |
| Nominal power, kW: | 7,2 |
| Frequency, Hz: | 50 |
| Current, A (max): | 34,8 |
| Sockets: | 1 x Schuko 230 V, 1 x CEE 230 V 32 A |
| Engine start: | Electric |
| Fuel tank capacity, l: | 20 |
| Avg. working time (power 50%), h: | 7.1 |
| LED display: | voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB: | 70/95 |
| Socket 12 V, A: | 12V/8.3A |
| USB ports: | 5V/1A, 5V/2.1A |
| Engine model: | KS 480i |
| Engine cylinder capacity, cm3: | 458 |
| Engine type: | gasoline, single-cylinder, four-stroke, air-cooled |
| Engine power HP, kW: | 16 |
| Socket for parallel connection: | - |
| Oil sump volume, cm3: | 1,1 |
| Force factor, cos φ: | 1 |
| Lithium battery, Ah: | 1,6 |
| Protective class: | IP23M |
| Alternator winding: | Copper |
| Net dimensions (LxWxH), mm: | 600х510х560 |
| Gross dimensions (LxWxH), mm: | 725х505х555 |
| Net weight, kg: | 68 |
| Gross weight, kg: | 71 |
