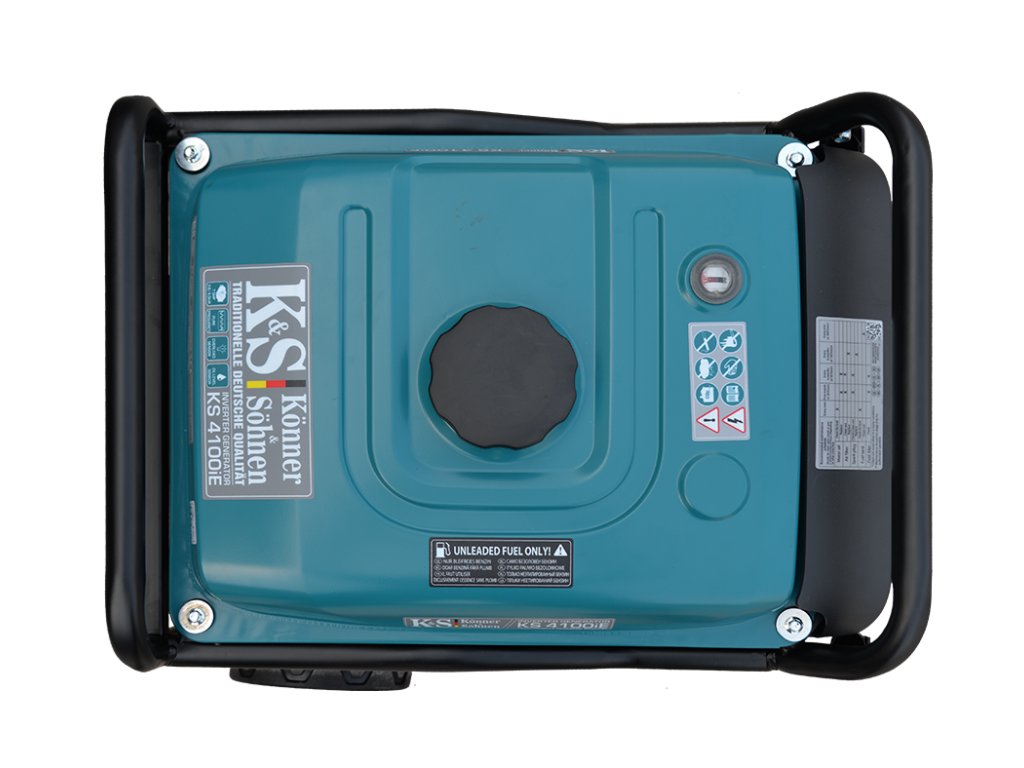

Könner & Söhnen Inverter Generator KS 4100iE
Maximum power: 4 kW
Nominal power: 3,6 kW
Weight: 39 kg
Max current: 17,4 A
Könner & Söhnen Inverter Generator KS 4100iE
Gasoline inverter generators are a user-friendly and portable power source. The range of inverter generators includes models with a power range from 1.8 to 8.0 kW. Double conversion of electrical energy delivers a pure sine wave and a frequency of 50 Hz, which are ideal for the reliable operation of sensitive and high-precision electronics.
All models are based on robust engines that meet all European quality standards, including the EURO 5 emission standard. Engines of the K&S inverter generators feature an ECO mode that allows the generator to be used at low speeds and reduces fuel consumption by up to 50%.
The KS 4100iE inverter is a reliable power source for the operation of sensitive and high-precision electronics thanks to its pure sine wave and 50 Hz frequency. All models in this inverter series are based on robust motors that meet all European quality standards, including the EURO V emission standard.

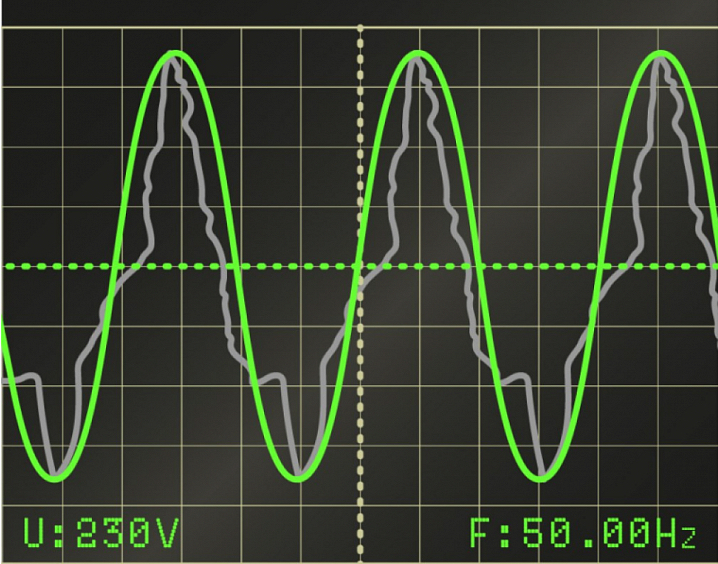

PURE SINE WAVE
Built-in control unit with a microprocessor control ensures that technical processes of the generator are controlled and managed with stable frequency of 50Hz and voltage 230V.

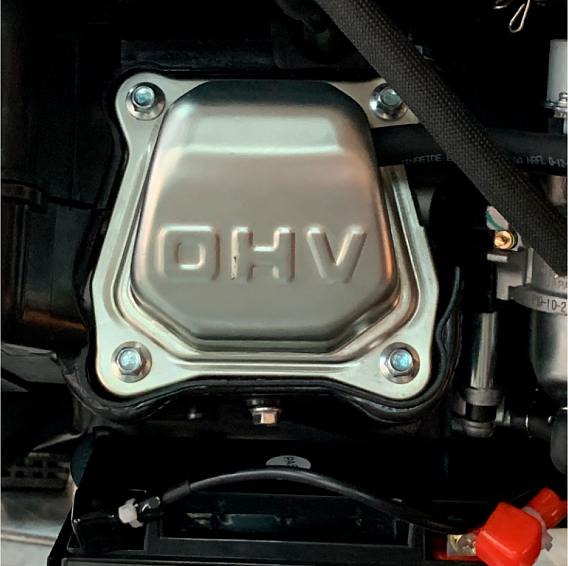

ROBUST ENGINE
The robust engine from Könner & Söhnen meets all European quality standards, including the latest EURO 5 emission standards. The robust K&S company engine is provided with an individual serial number to monitor production and service quality. The powerful alternator with copper winding and the high-performance motor guarantee trouble-free and durable operation. It is recommended for appliances that are sensitive to the quality of energy consumption (boilers, medical equipment, audio equipment, etc.).

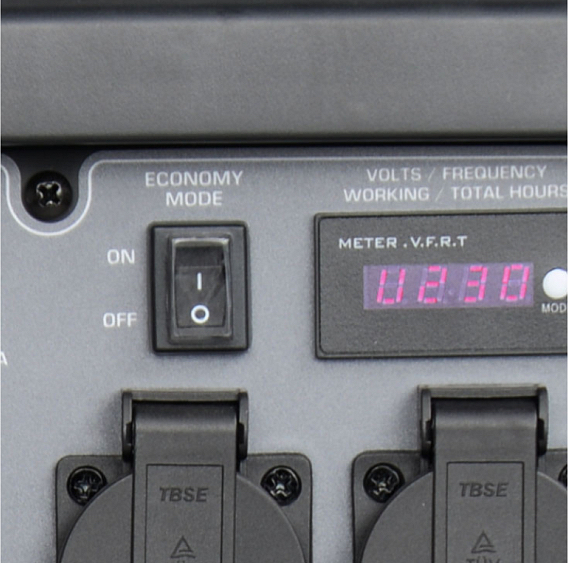

ECO MODE
The ergonomic control panel is equipped with an ECO mode switch. This mode reduces fuel consumption by up to 50% for small loads due to lower engine speeds.
3-IN-1 EASY ENGINE START
The 3-in-1 universal engine switch for the easiest and most convenient generator start combines the functions of a fuel valve, a starter flap and an electric starter.

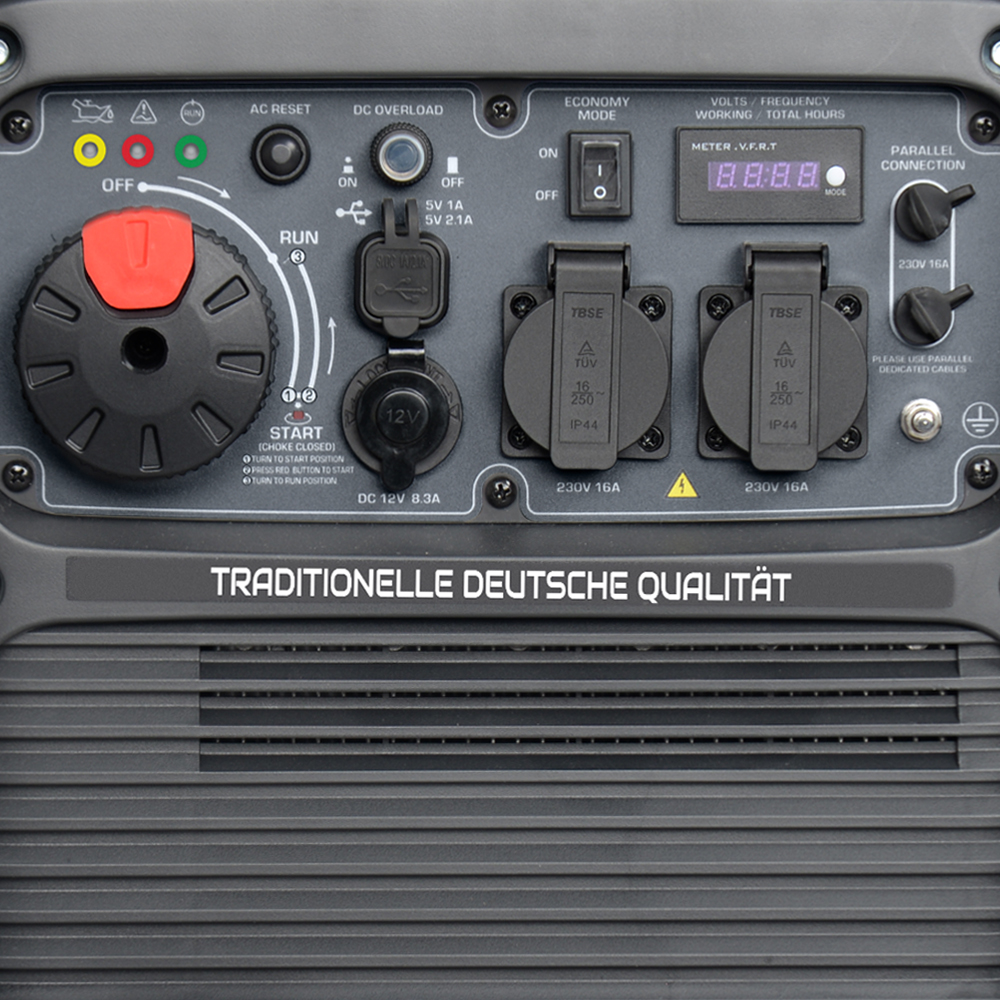

ERGONOMIC CONTROL PANEL
Convenient arrangement of all basic functions: Operating status indicators: overload and short-circuit protection, low oil protection, reset button for resetting the control system and restoring power, connection for parallel connection of generators, two USB outputs (5V/1A, 5V/2.1A), typical 12 V vehicle socket for a variety of vehicle devices, gadgets and battery charging, 230 V sockets and earth terminal.

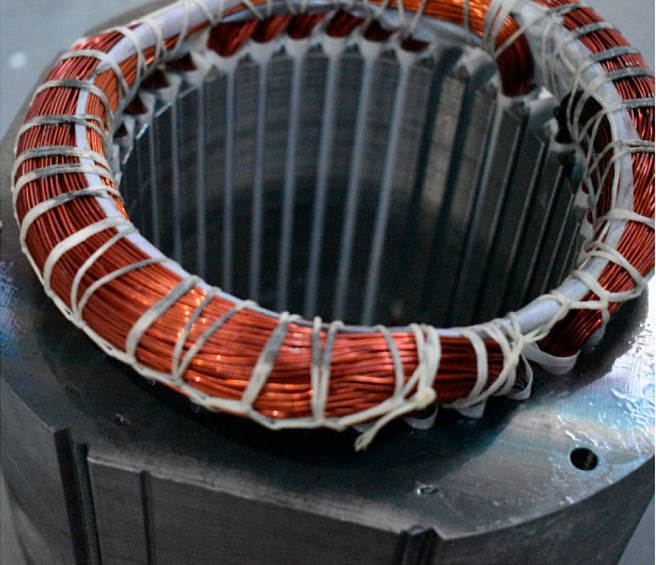

ALTERNATOR WITH 100% COPPER WINDING
The generators of the Könner & Söhnen brand are equipped with a high-quality synchronous alternator with 100% copper winding. Only the copper winding can withstand the highest voltage overloads without damage and thus ensure durable and reliable operation of the generator.

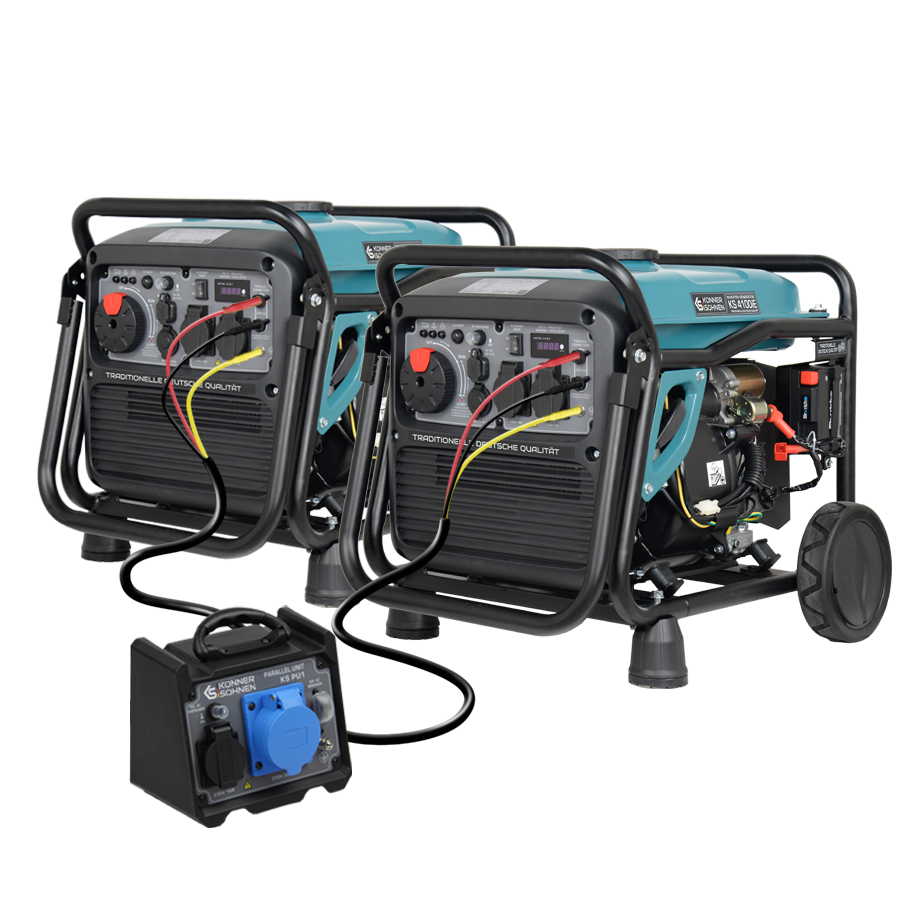

PARALLEL CONNECTION - KS PU1
Parallel connection doubles performance. You can pair individual power units and connect more powerful devices to them. To do this, use a parallel switching device (KS PU1) that you connect to a special output on the power station. The device is suitable for all Könner & Söhnen inverter power plants except the KS 8100 series models (KS 8100iE, KS 8100iEG, KS 8100iE ATSR, KS 8100iEG ATSR).
CONVENIENT TRANSPORTATION
Transport wheels make these models easier to move and allow a wider range of applications.
OTHER ACCESSORIES

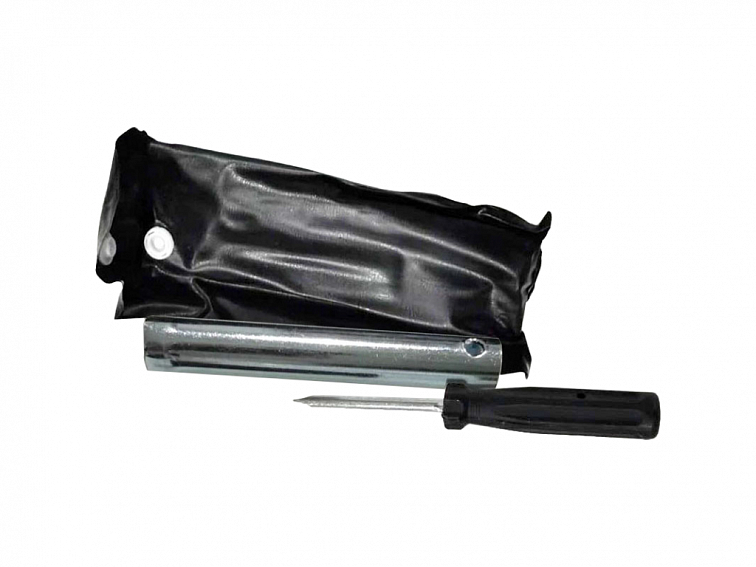

Included: screwdriver, spark plug wrench
ADDITIONAL ACCESSORIES CAN BE PURCHASED:
Battery charger KS B1A
Easy to use charging adapter that charges 6V/2V lead acid batteries.
It is used to charge batteries for power generators, cultivators, motors, boats, ATVs, etc. with a capacity of up to 32 Ah.
After selecting the appropriate voltage, charging starts automatically.
The automatic charger has protection against:
- overheating
- short-circuit
- reverse polarity
- overcharging the battery
Socket adapter KS EX3M-4S

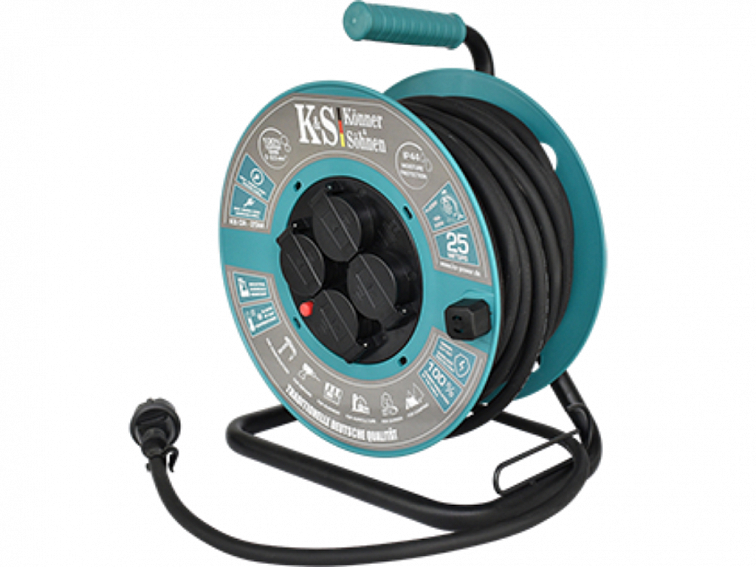

Extension cable with reel KS CR-25M

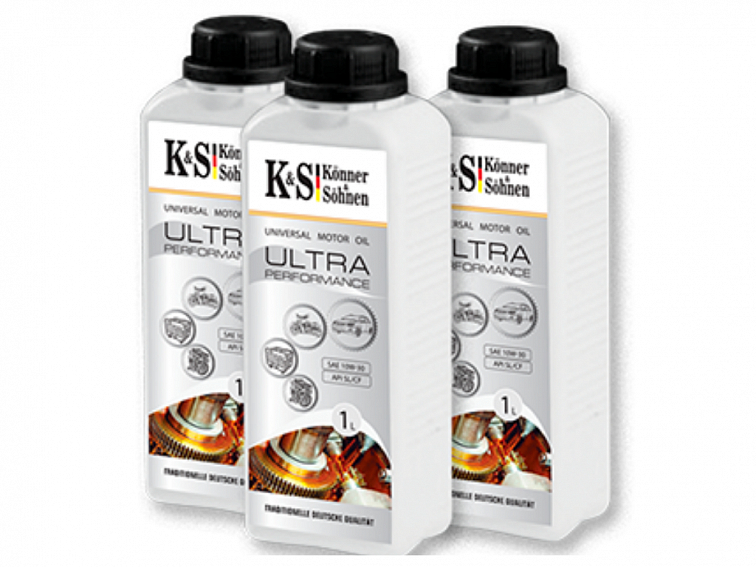

Könner & Söhnen 10W-30 engine oil
High quality semi-synthetic multigrade ULTRA Performace engine oil from "Könner & Sons" for gasoline and diesel engines.
Additional parameters
| Category: | Inverter |
|---|---|
| Weight: | 39 kg |
| Voltage, V: | 230 |
| Max. power kW: | 4,0 |
| Nominal power, kW: | 3,6 |
| Frequency: | 50 |
| Current, A (max): | 17,4 |
| Sockets: | 2 x Schuko 230 V |
| Engine start: | manual/electric |
| Fuel tank capacity, l: | 12,5 |
| Avg. working time (power 50%), h: | 8.1 |
| LED display: | voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB: | 70/95 |
| USB outputs: | 5V/1A, 5V/2.1A |
| Engine model: | KS 240i |
| Engine cylinder capacity, cm3: | 223 |
| Engine type: | Gasoline, single-cylinder, four-stroke, air-cooled |
| Engine power HP: | 7,5 |
| Socket for parallel connection: | + |
| Oil sump volume, cm3: | 0,6 |
| Lithium battery, Ah: | 1,6 |
| Protective class: | IP23M |
| Alternator winding: | Copper |
| Net dimensions (LxWxH), mm: | 530х410х430 |
| Gross dimensions (LxWxH), mm: | 605х420х425 |
| Net weight, kg: | 36,7 |
| Gross weight, kg: | 39 |
3v1 jednoduchý start
