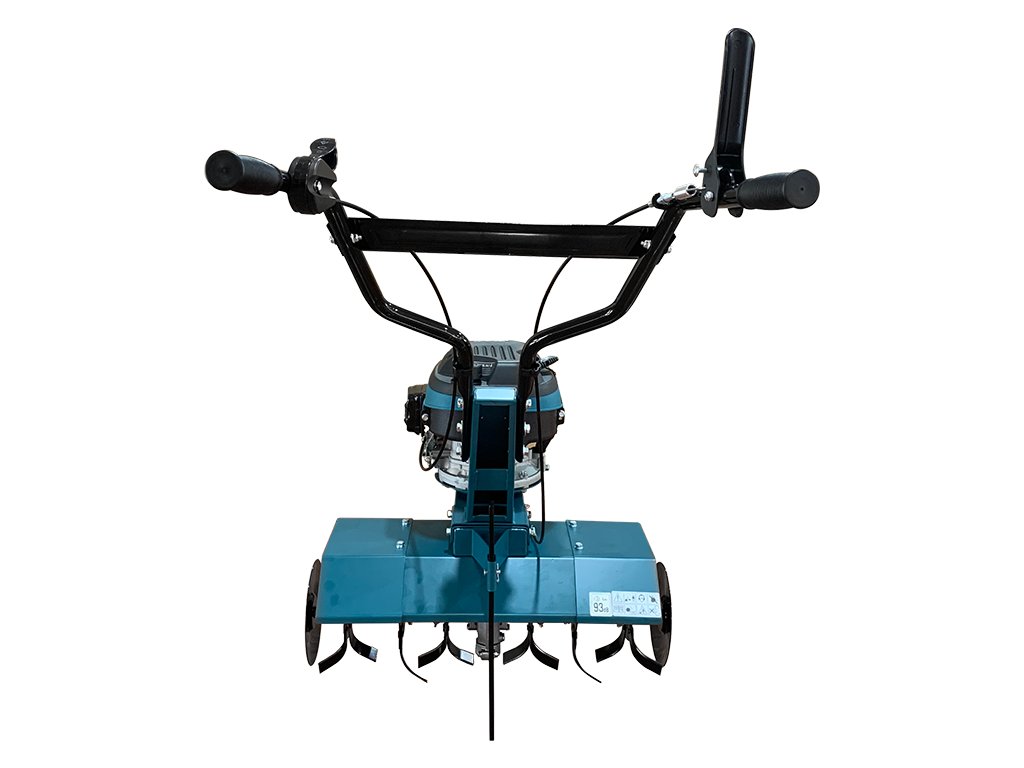

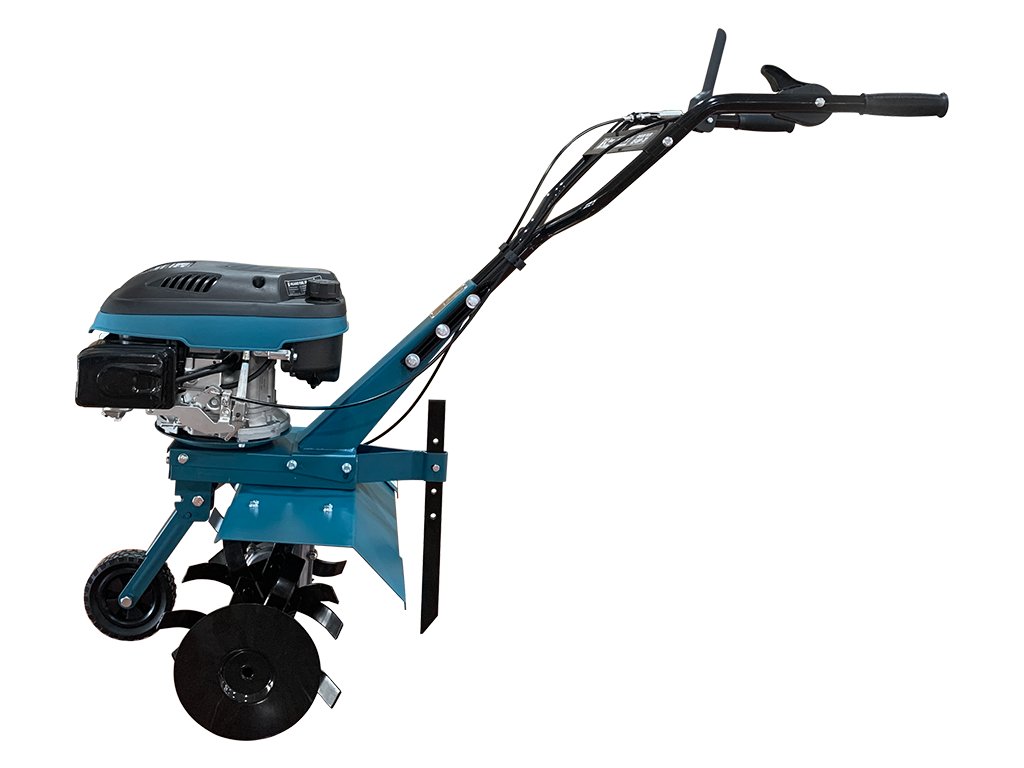

Könner & Söhnen Gasoline tiller KS 4HP-70
| Engine model | KS 160 |
| Engine power | 4.0 HP |
| Motor volume | 139 cm3 |
| Engine type | Gasoline engine |
| Plough width | 50-70 cm |
| Max. Ploughing depth | ≤ 27 cm |
| Fuel tank volume | 1.5 l |
| Gearbox type | snail drive |
| Number of gears | 1 |
| Adjustable handles | – |
| Net weight | 36 kg |
| Equipment | Cutter 24 St, Transport wheel |
Könner & Söhnen Gasoline tiller KS 4HP-70
Könner & Söhnen belt-driven gasoline tillers with 4 HP are designed for all soil types from loose to virgin soil. They are practical, reliable and multifunctional agricultural units for multiple tasks including soil preparation of different hardnesses, crop planting, harvesting, etc. The unique, stylish design uses advanced technology and has a compact footprint. Könner & Söhnen's high-performance and economical four-stroke tiller engines meet the latest EURO 5 emission standards, are designed for continuous operation and deliver high performance.

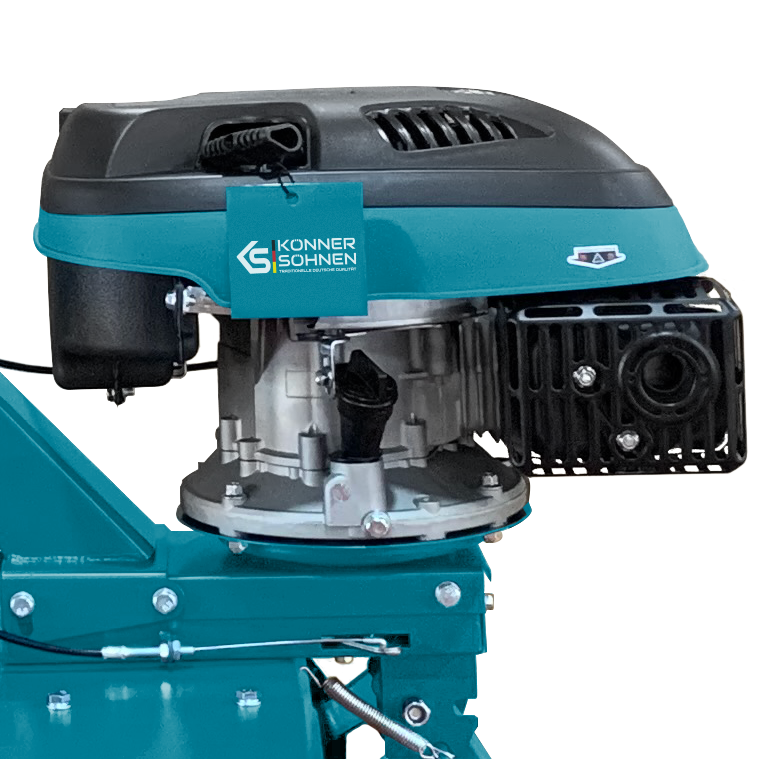

POWERFUL ENGINE

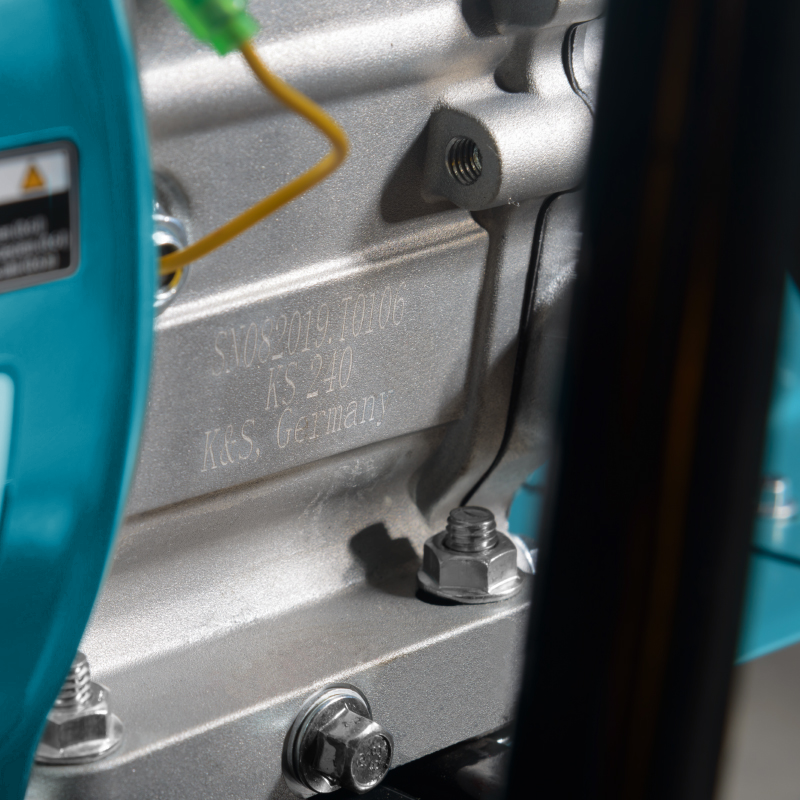

Powerful and robust engines K&S meet all European quality standards, including the latest EURO V emission standards. Each engine is marked with an individual serial number, which can be used to monitor production and service quality.

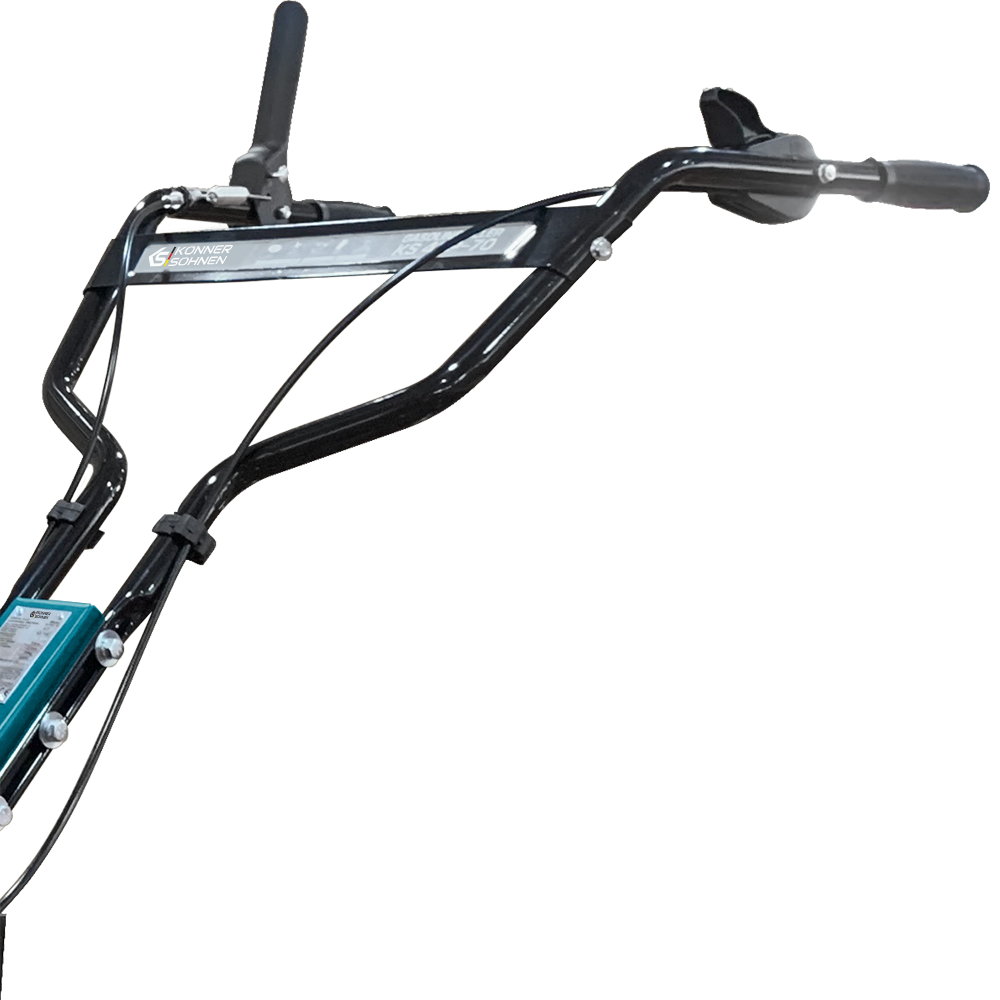

ERGONOMIC CONTROL PANEL
The ergonomic control panel allows you to operate and handle a cultivator quickly and easily.

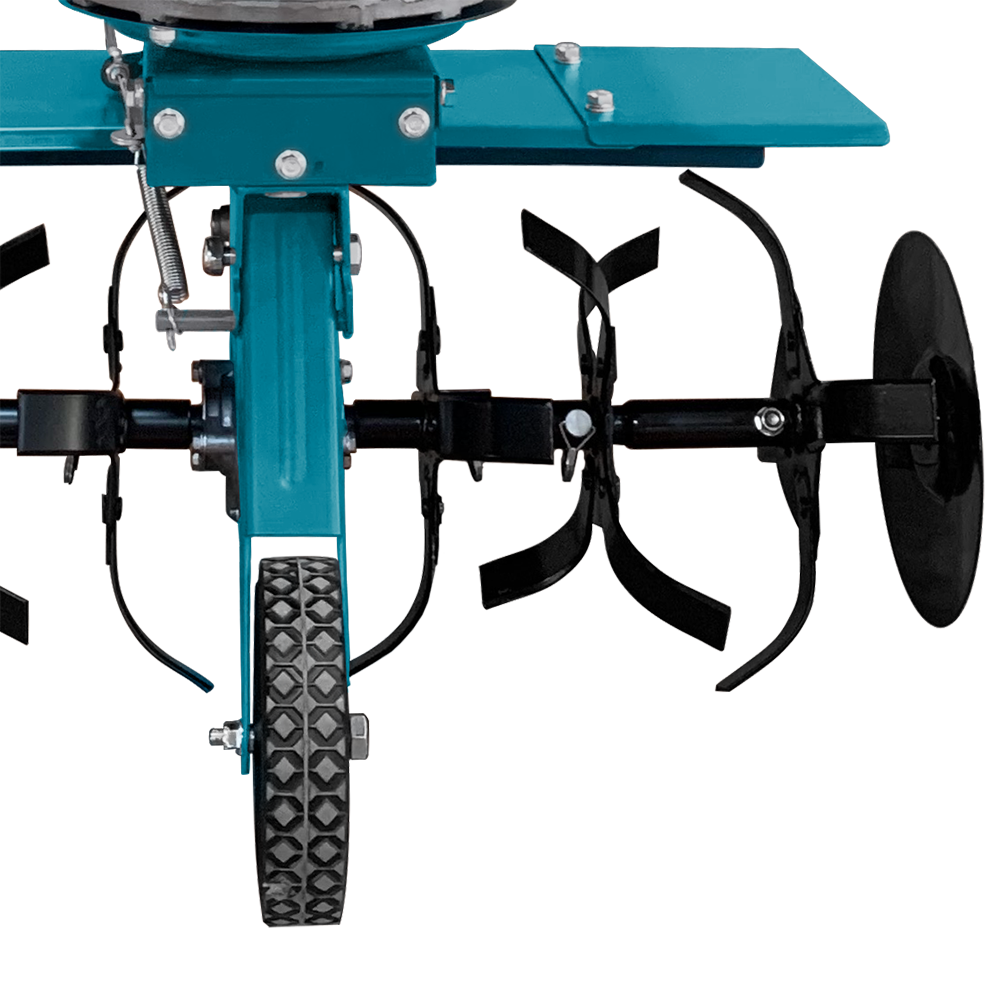

FORGED SABRE CUTTERS
Thanks to the forged sabre-shaped blades, the cultivator is suitable for any type of soil from virgin to well-cultivated. They are supplied with protective shields.
TRANSPORT WHEEL
The model is equipped with a mobile wheel for the most comfortable transport. The wheel can be easily lifted during operation.
QUALITY IN DETAIL
All connections and fastenings are perfectly thought out and designed with a certain resistance to breakage for the long-term and comfortable use of the cultivator. These models are equipped with an additional protective grille to prevent burns.
Additional parameters
| Category: | Gasoline cultivators |
|---|---|
| Weight: | 40 kg |
| Engine model: | KS 160 |
| Engine power, hp: | 5 |
| Engine volume, cm3: | 173 |
| Engine type: | Gasoline |
| Tilling width, cm: | 50-70 |
| Tilling depth, max., cm: | ≤ 27 |
| Fuel tank volume, l: | 1.5 |
| Crank case volume, l: | 0.6 |
| Gear: | Worm drive |
| Number of gears: | 1 |
| Reverse: | — |
| Adjustable handles: | Vertical |
| Transport wheels: | + |
| Noise level Lpa (7m)/Lwa, dB: | 68/93 |
| Net dimensions (LxWxH), mm: | 1350х600х800 |
| Gross dimensions (LxWxH), mm: | 680x380x650 |
| Net weight, kg: | 36 |
| Gross weight, kg: | 40 |
| Includes: | Blades 24 pcs., transport wheel |
