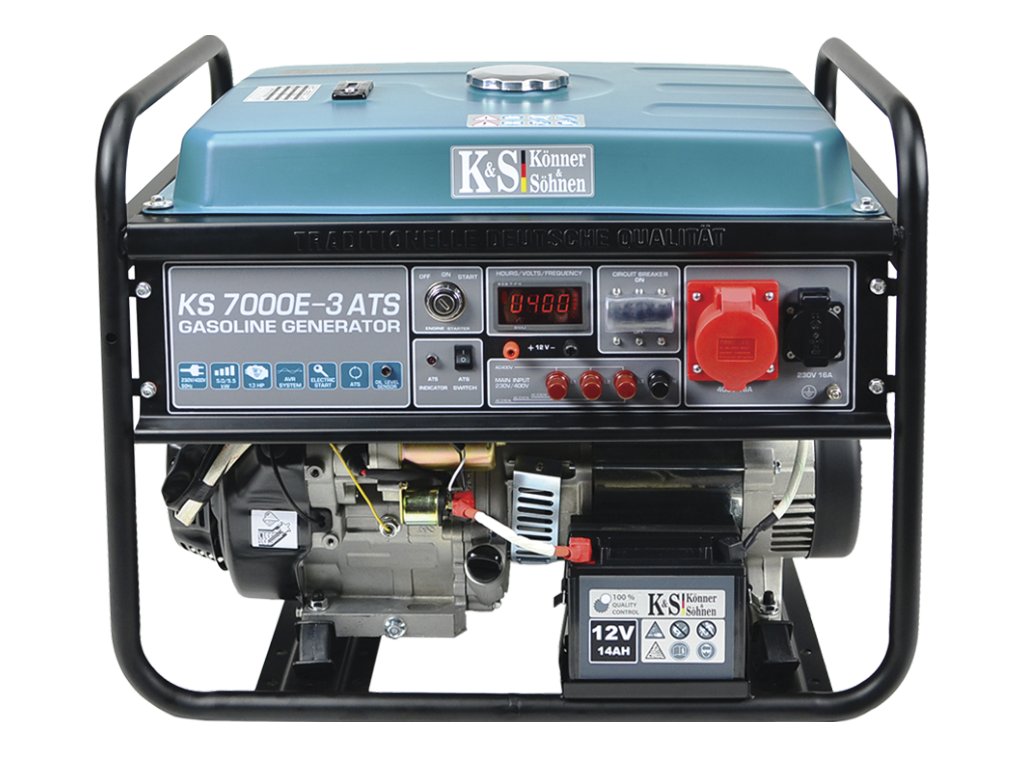

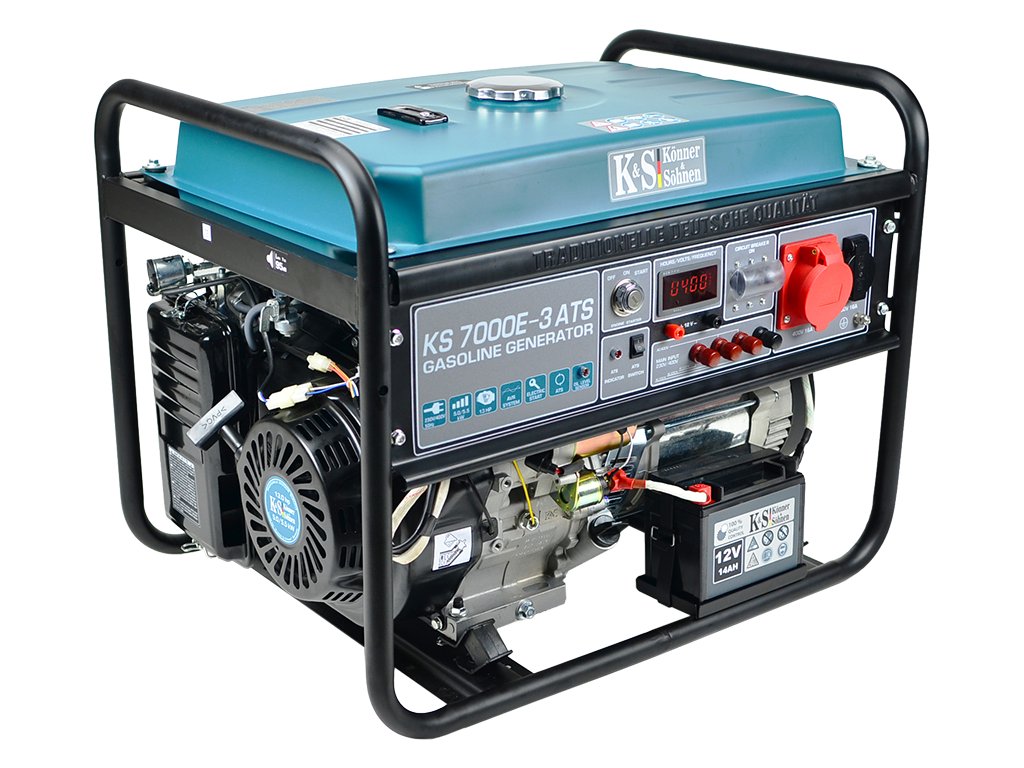

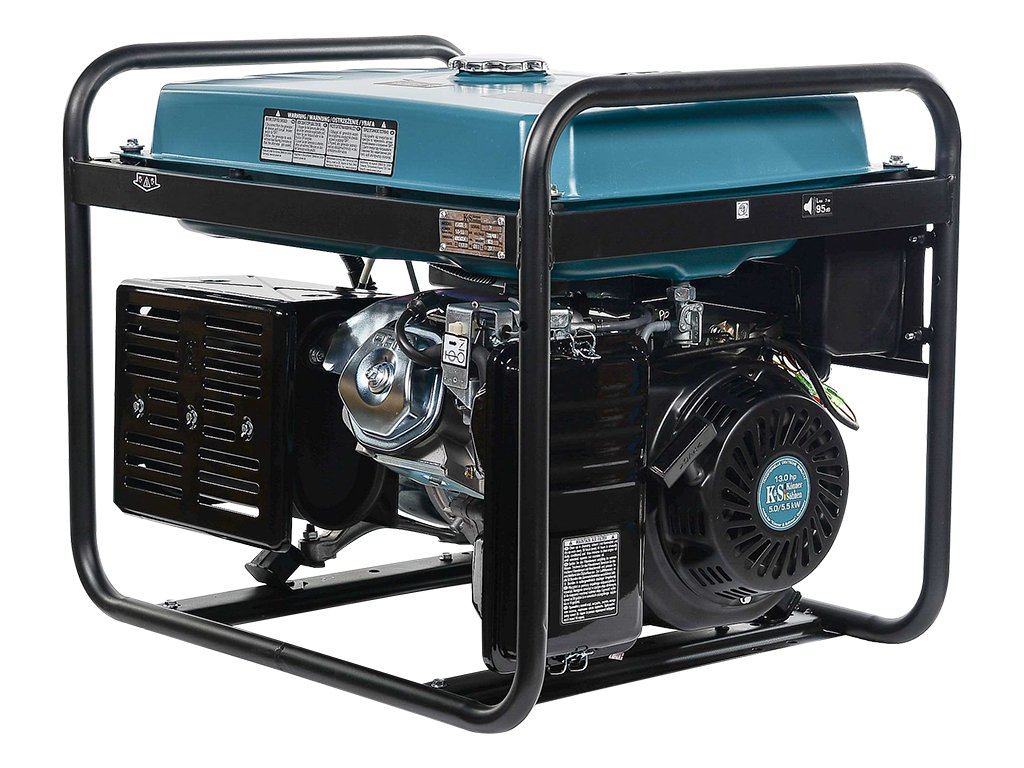

Könner & Söhnen Gasoline Generator KS 7000E-3 ATS
Maximum power: 5,5 kW
Nominal power: 5 kW
Weight: 85 kg
Max current: 9.93 A
GASOLINE GENERATORS WITH ATS SYSTEM
One of the unique features of our power generators is the built-in ATS (Automatic Transfer Switch) unit. This feature allows the power station to monitor the mains power and automatically switch on in the event of a power failure and then automatically switch off when the power is restored. This feature is indispensable and very useful in buildings with strict temperature or light control and in the absence of supervisory personnel.
ATS requires no sophisticated equipment or installation. The ATS unit is already built into the power generator. Installation is as simple as possible and these models are affordable on any budget.

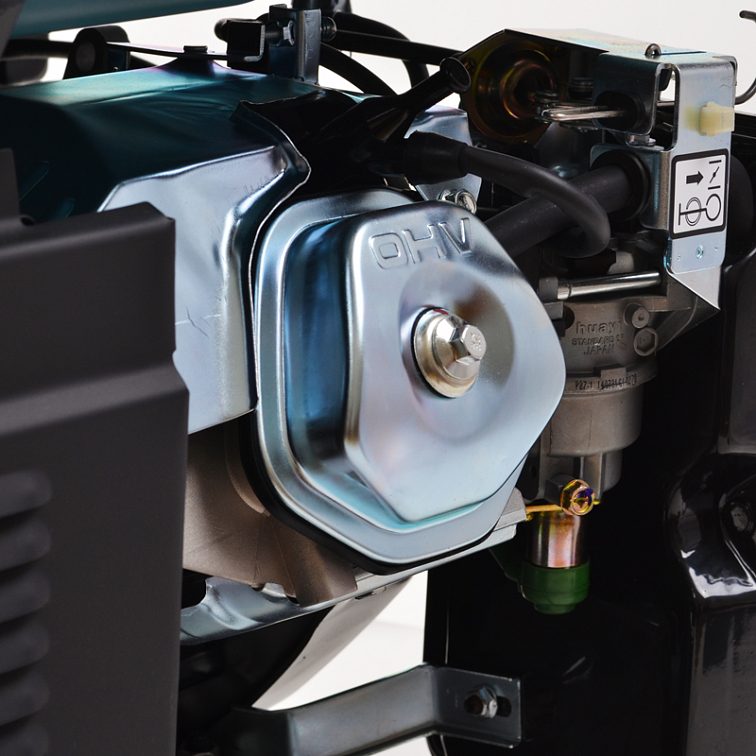

BRAND ENGINES
The engines of the K&S series were developed especially for the "Könner & Söhnen" trademark and have successfully passed several hours and multi-stage tests. The "Könner & Söhnen" brand engines are reliable, durable and cost-effective. The reliable "Könner & Söhnen" brand engine meets all European quality standards, including the latest EURO V exhaust emission standard.

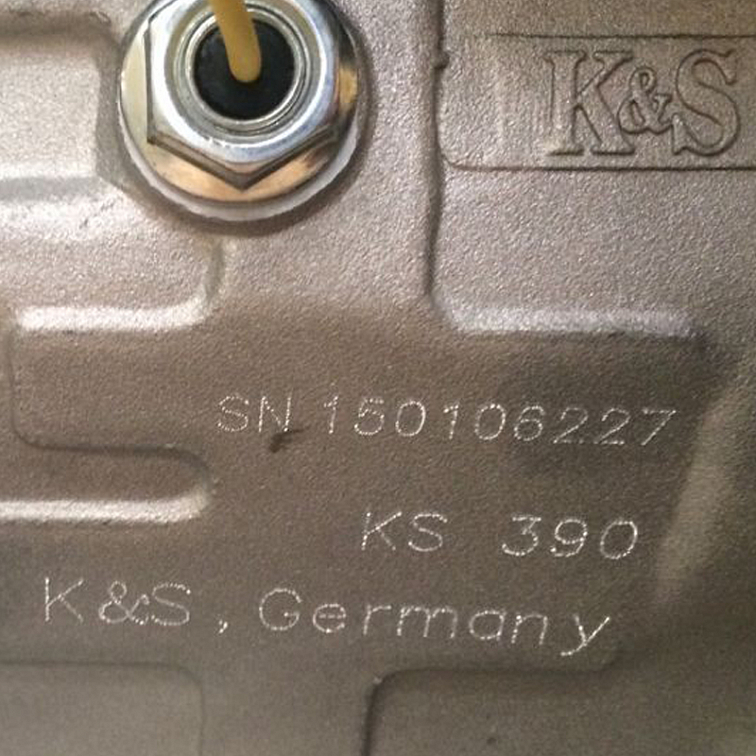

RELIABLE BRAND ENGINES
The engines from Könner & Söhnen are reliable, powerful, economical and meet European quality standards. Each engine has the company logo "K&S" and an individual serial number. This allows us to monitor the production or service quality.

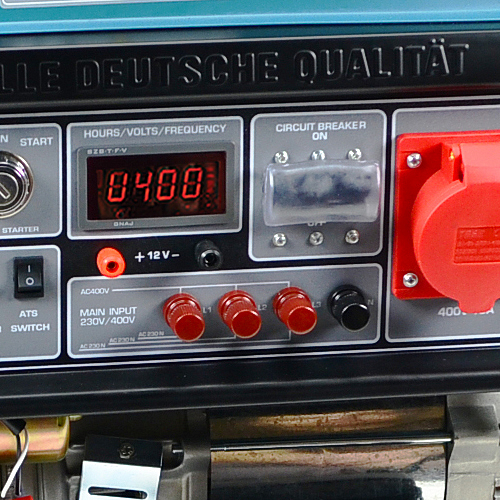

BUILT-IN ATS SYSTEM
The ATS (Automatic Transfer Switch) control panel is equipped with power terminals, ATS switch and ATS operation indicator.

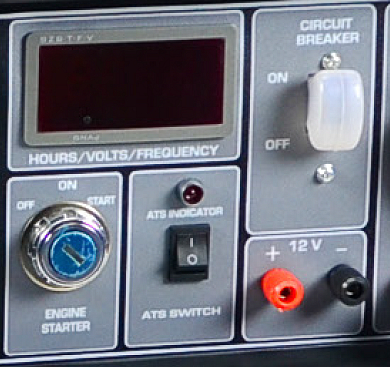

COMFORTABLE ERGONOMIC CONTROL PANEL
The comfortable and ergonomic panel makes the whole unit easy to operate and requires no additional skills. The modern intelligent LED display always shows the number of hours worked, frequency and output voltage. The information on the display helps to control the load on the equipment and ensure timely maintenance of the power unit, which extends the service life.
230V OR 400V
The introduced range includes models for single-phase and three-phase appliances. The control panel of the ATS function has corresponding 230V and 400V mains terminals.

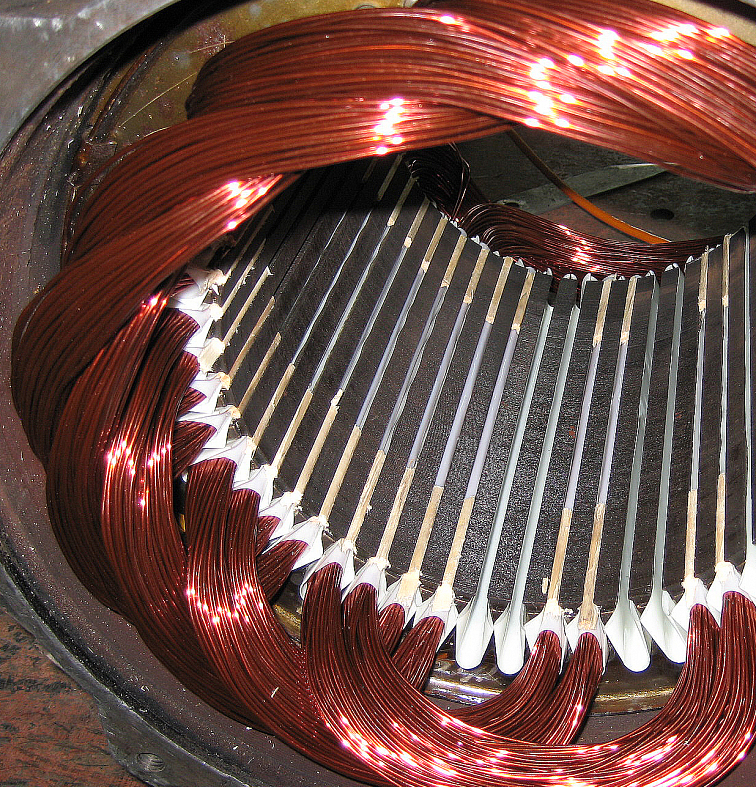

ALTERNATOR WITH 100% COPPER WINDING
Könner & Söhnen power generators are equipped with a top-of-the-range synchronous alternator with 100% copper winding. This is the only copper winding that can withstand maximum loads without damage to ensure long-term reliable operation of the power generator.

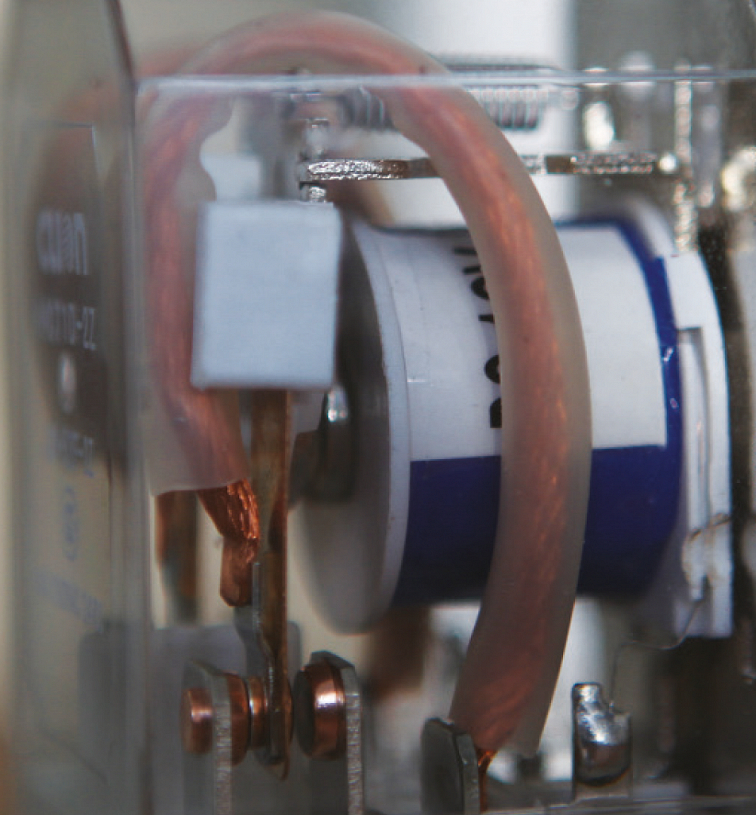

SWITCHING CONTACTORS
Reliable switching contactors made of 100% copper have an increased capacity of 40 A, which ensures long-term safe performance of the ATS system.

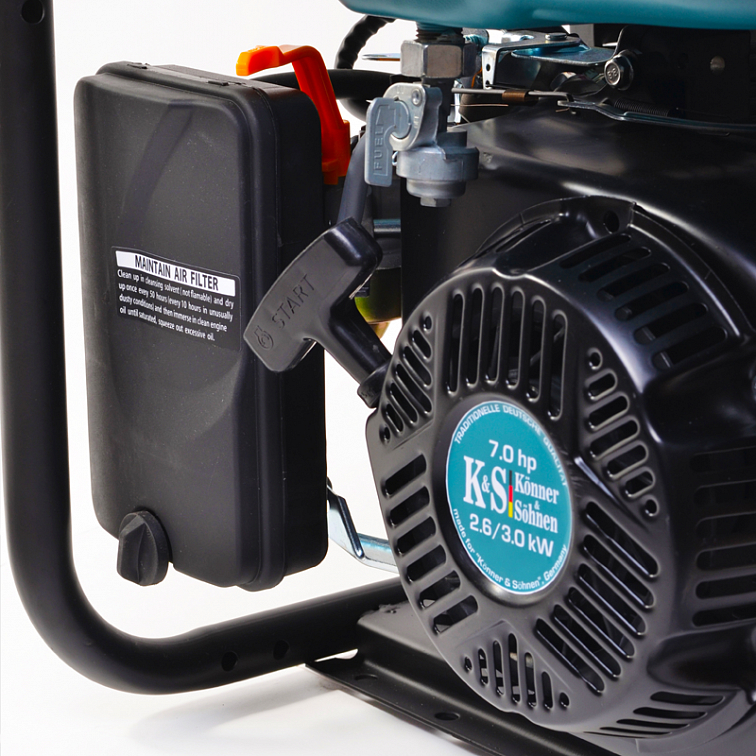

SIMPLE STARTING SYSTEM WITH ELECTRIC START
The easy start system allows you to start the engine quickly and without much effort. This model is also equipped with an electric starting system.

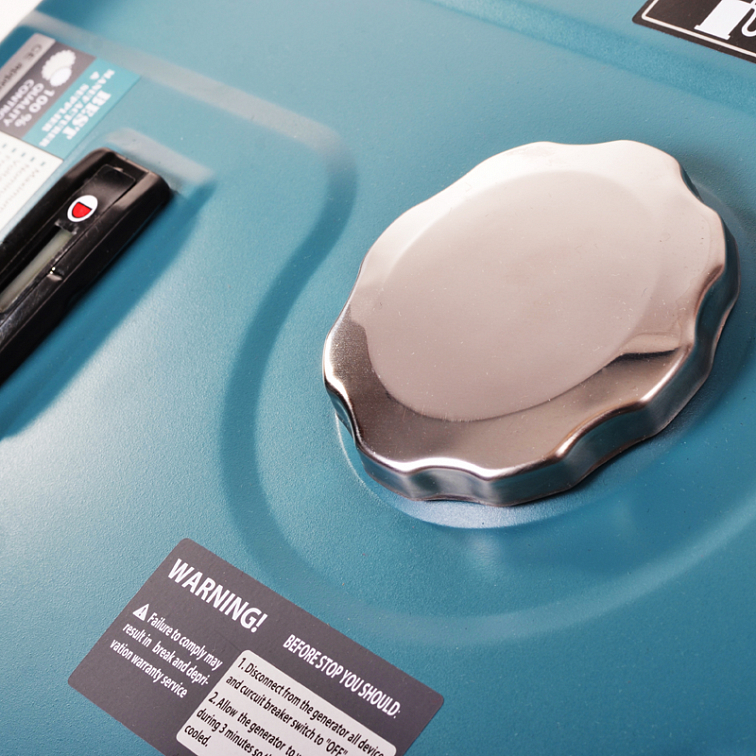

STEEL TANK
Könner & Söhnen power units are equipped with an enlarged steel fuel tank, which extends the operating time of the power generator without refuelling. The fuel level gauge is located on the tank for easy operation.

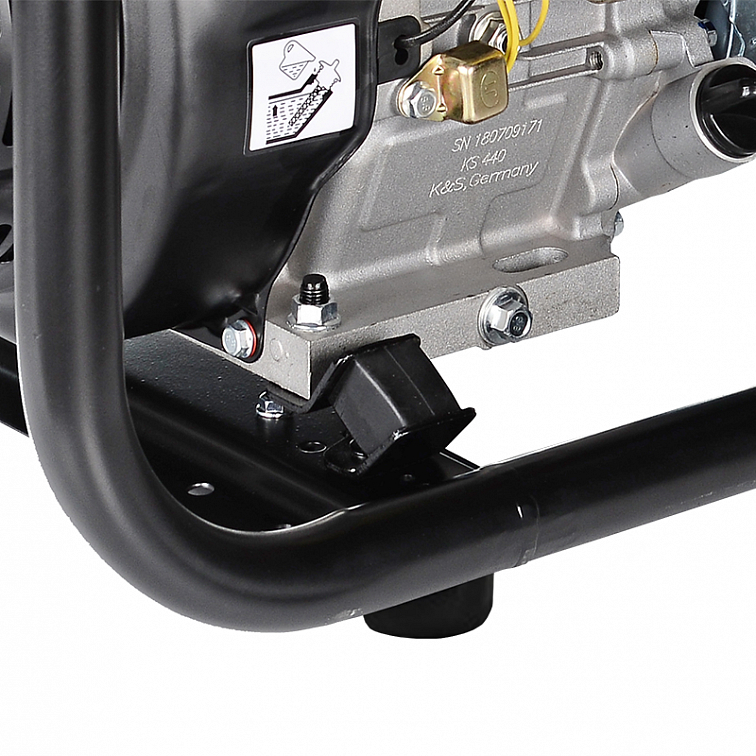

DAMPERS TO REDUCE VIBRATION
All Könner & Söhnen power centre models are equipped with rubber feet to reduce vibration. Thanks to the rubber shock absorber, the working electrocentrifuge will not damage the floor covering, nor will the frame finish be scratched.
Additional parameters
| Category: | Gasoline |
|---|---|
| Weight: | 83 kg |
| Weight: | 61 - 120kg |
| Nominal power: | 3,1 - 5 kW |
| ? Fuel tank capacity: | 20,1 - 30 l |
| Maximum power: | 4,7 - 7,6 kW |
| Voltage: | 230/400 V |
| Starter: | Manual/Electric |
| Voltage, V: | 400 |
| Max. power, kW: | 5.5 |
| Nominal power, kW: | 5.0 |
| Frequency (Hz): | 50 |
| Current, A (max): | 9.93 |
| Sockets: | 1 x Schuko 230 V, 1 x CEE 400 V 16 A |
| Fuel tank capacity, l: | 25 |
| Average working time (50% output), h: | 17 |
| LED display: | voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB: | 70/95 |
| Socket 12V, A: | 12/8.3 |
| Engine model: | KS 390 |
| Engine type: | gasoline, single-cylinder, four-stroke, air-cooled |
| Engine power, hp/kW: | 13.0/9.56 |
| Oil sump volume, l: | 1.1 |
| Engine cylinder capacity, cm3: | 389 |
| Output power regulator: | AVR |
| Engine start: | manual/electric/auto |
| Alternator winding: | Copper |
| Net dimensions (L*W*H), mm: | 680×545×550 |
| Gross dimensions (L*W*H), mm: | 700×545×590 |
| Net weight, kg: | 82.3 |
| Gross weight, kg: | 84.7 |
| Protective class: | IP23M |
