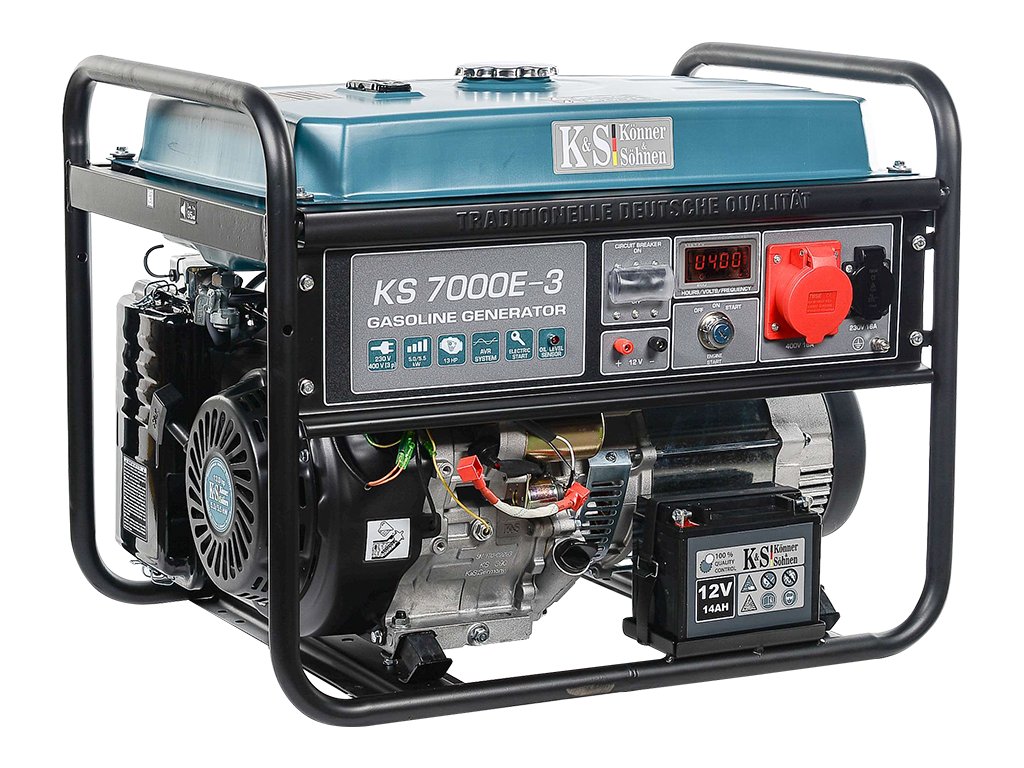

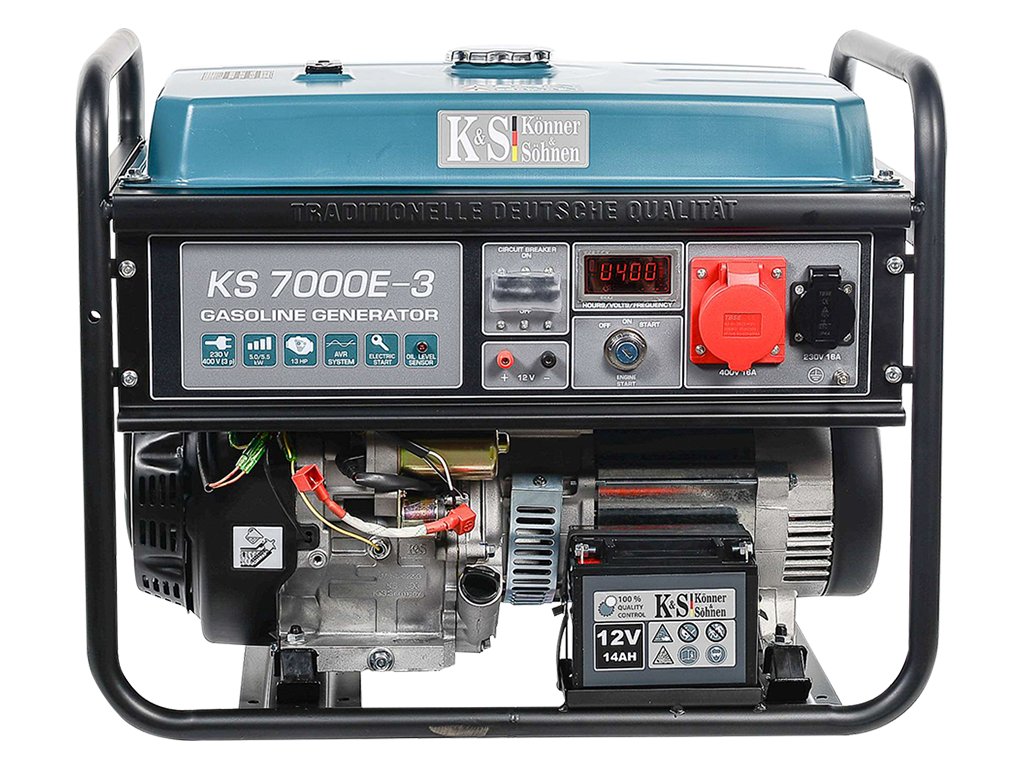

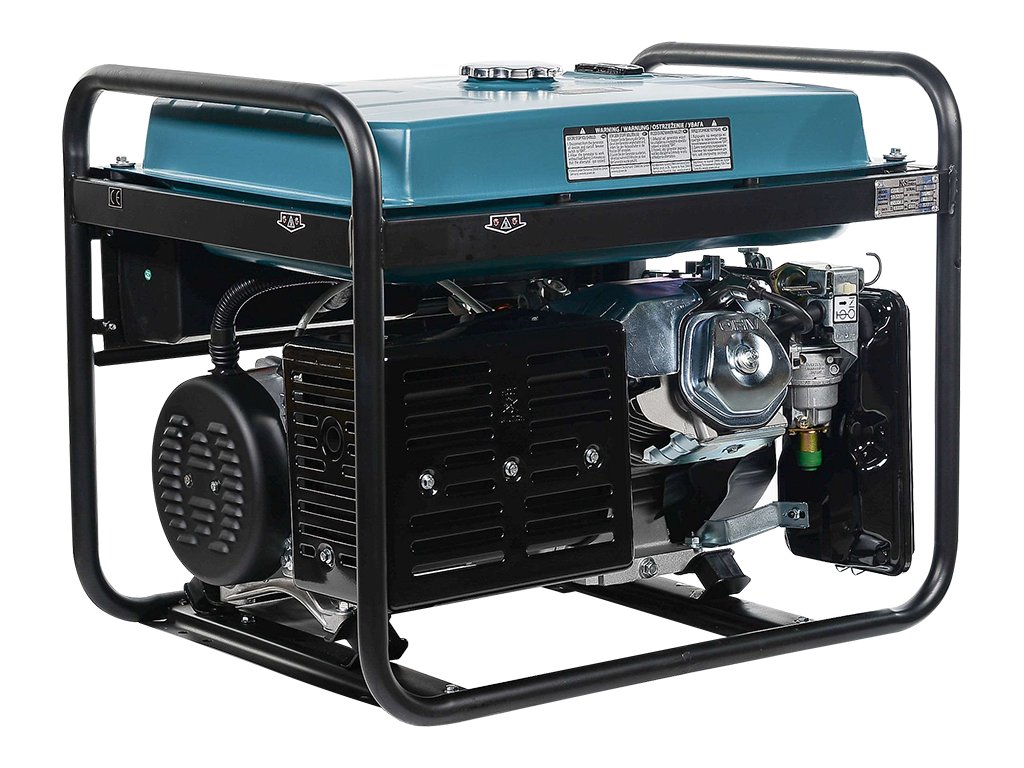

Könner & Söhnen Gasoline Generator KS 7000E-3
Maximum power: 5,5 kW
Nominal power: 5 kW
Weight: 83 kg
Max current: 9.93 A
Könner & Söhnen Gasoline Generator KS 7000E-3
The KS 7000E-3 petrol generator reaches a maximum output of 5.5 kW and is equipped with a modern LED display that shows frequency, voltage and time worked. The information on the display thus helps to control the load on the equipment and ensure timely maintenance of the power plant, thus extending the service life.
BRAND ENGINES
The engines of the K&S series were developed especially for the "Könner & Söhnen" trademark and have successfully passed several hours and multi-stage tests. The "Könner & Söhnen" brand motors are reliable, durable and cost-effective. The reliable "Könner & Söhnen" brand engine meets all European quality standards, including the latest EURO V exhaust emission standard.
INDIVIDUAL SERIAL NUMBERS ON THE ENGINES
Könner & Söhnen engines meet all global and European quality standards, including the latest EURO V emission standards. This is proven by European quality certificates. Each engine and each power unit has its own serial number, which enables us to control the quality of production and service.

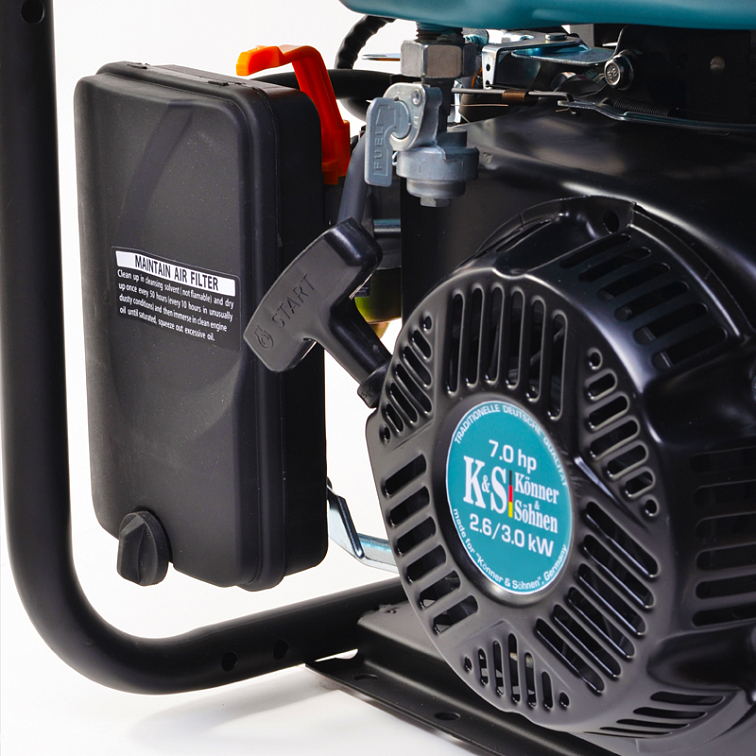

FLUENT AND CONVENIENT STARTING SYSTEM WITH ELECTRIC START
The simplified starting system allows the engine to start quickly without any significant effort. The more powerful models are additionally equipped with an electric and/or self-start system for convenience.

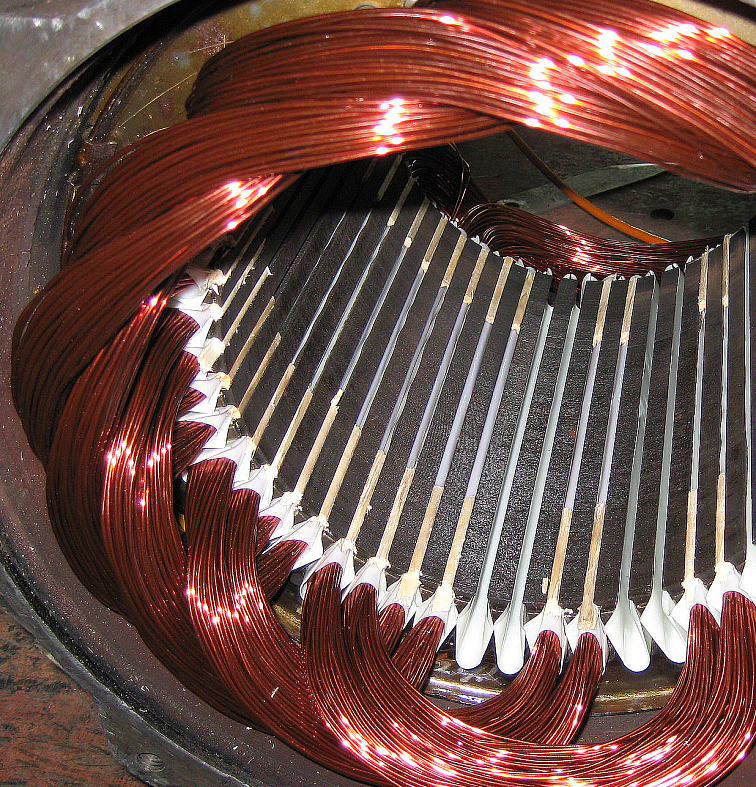

ALTERNATOR WITH 100% COPPER WINDING
The generators of the brand "Könner & Söhnen" are equipped with a high-quality synchronous alternator with 100% copper winding. Only the copper winding can withstand the highest voltage overloads without damage and thus ensure durable and reliable operation of the generator.

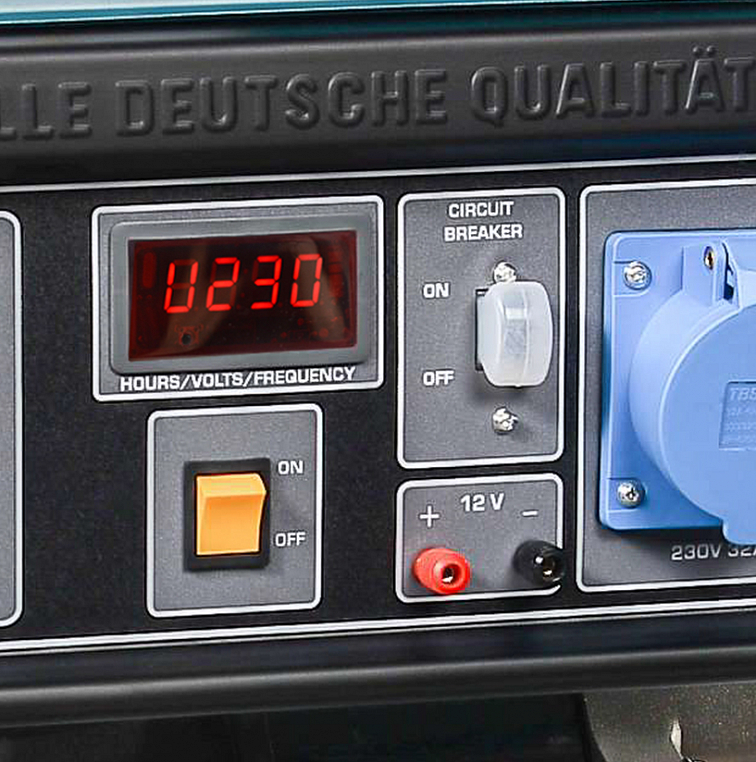

USER-FRIENDLY ERGONOMIC CONTROL PANEL
Thanks to the ergonomic generator control panel, you can get the job done comfortably as all functions are conveniently arranged: modern LED display (hour meter, frequency, voltage), electric start (optional), overload protection switch, oil level sensor, sockets, earthing plugs, terminals and more.
STEEL TANK
"Könner & Söhnen generators are equipped with an enlarged steel fuel tank, which increases the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling.

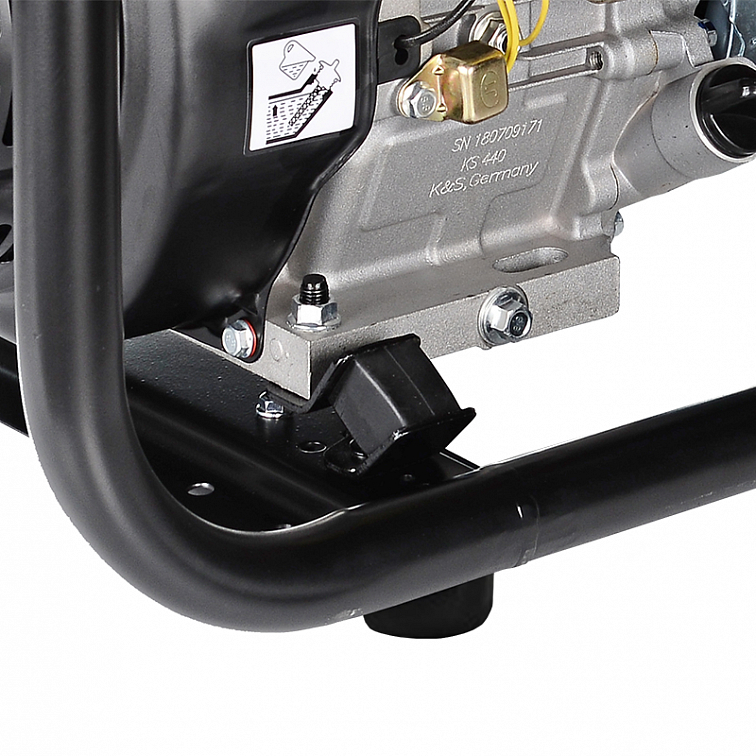

IMPROVED VIBRATION DAMPING SYSTEM
All models of the "Könner & Söhnen" brand generators are equipped with a double anti-vibration system, which ensures quiet and durable generator operation. The engines are mounted on high quality rubber pads. The reinforced steel frame is fitted with rubber feet, which provide additional protection against vibration, sliding and corrosion.
Additional parameters
| Category: | Gasoline |
|---|---|
| Weight: | 82 kg |
| Weight: | 61 - 120kg |
| Nominal power: | 3,1 - 5 kW |
| ? Fuel tank capacity: | 20,1 - 30 l |
| Maximum power: | 4,7 - 7,6 kW |
| Voltage: | 230/400 V |
| Starter: | Manual/Electric |
| Voltage, V: | 400 |
| Max. power, kW: | 5.5 |
| Nominal power, kW: | 5.0 |
| Frequency, Hz: | 50 |
| Current, A (max): | 9.93 |
| Sockets: | 1 x Schuko 230 V, 1 x CEE 400 V 16 A |
| Fuel tank capacity, l: | 25 |
| Average working time (50% output), h: | 17 |
| LED display: | voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB: | 70/95 |
| Socket 12V, A: | 12/8.3 |
| Engine model: | KS 390 |
| Engine type: | gasoline, single-cylinder, four-stroke, air-cooled |
| Engine power, hp/kW: | 13.0/9.56 |
| Oil sump volume, l: | 1.1 |
| Engine cylinder capacity, cm3: | 389 |
| Output power regulator: | AVR |
| Engine start: | manual/electric |
| Alternator winding: | Copper |
| Net dimensions (L*W*H), mm: | 680x545x550 |
| Gross dimensions (L*W*H), mm: | 700x545x590 |
| Net weight, kg: | 80.8 |
| Gross weight, kg: | 83.2 |
| Protective class: | IP23M |
