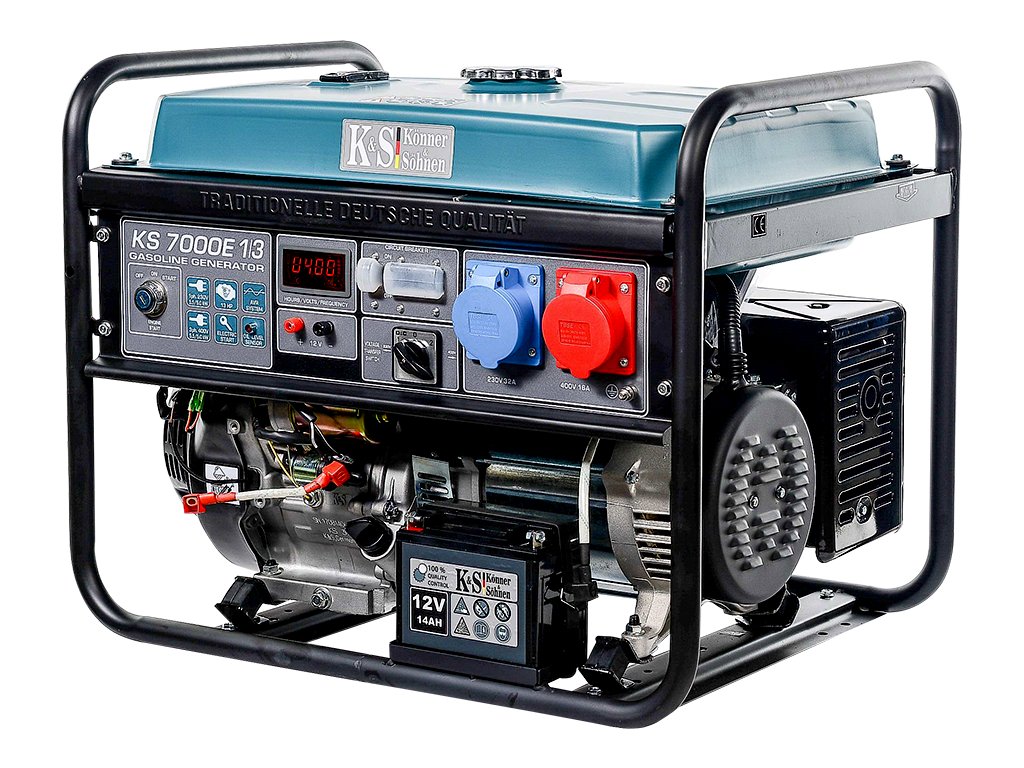

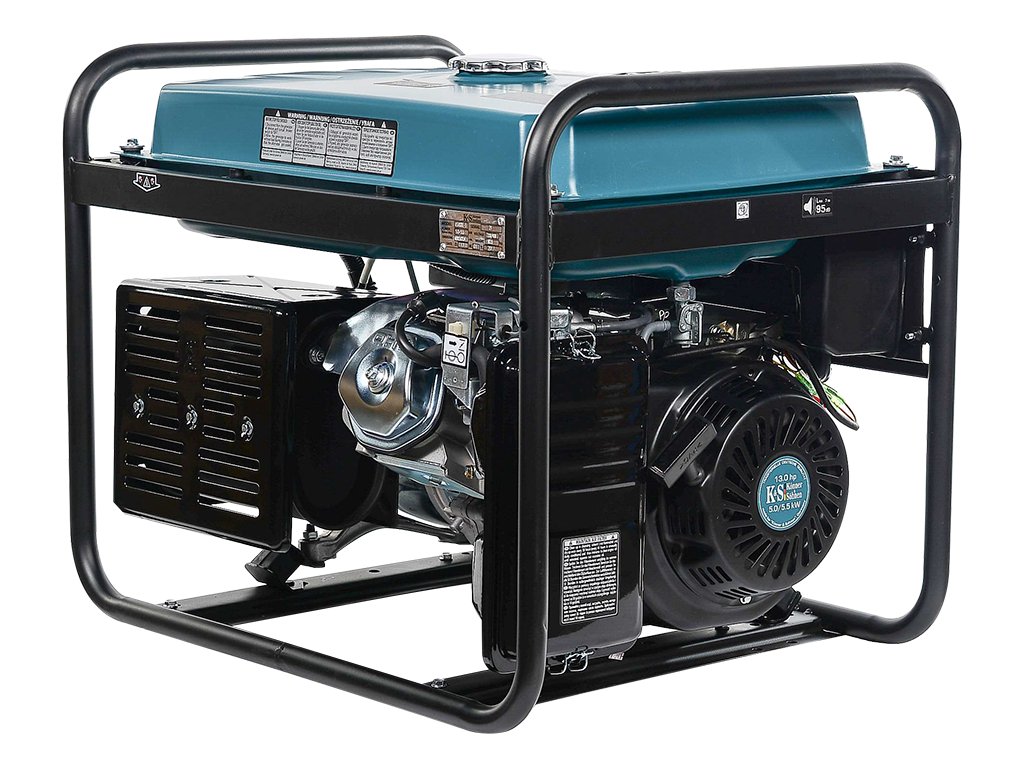

Könner & Söhnen Gasoline Generator KS 7000E 1/3
Max. power (230/400V): 5,5 / 5,5 kW
Nom. power (230/400V): 5 / 5 kW
Weight: 83 kg
Max. current (230/400V): 21.73 / 9.03 A
Könner & Söhnen Gasoline Generator KS 7000E 1/3
The KS 7000E 1/3 gasoline generator is equipped with the unique innovative VTS (voltage switching system), which allows the generator to be used in both three-phase mode (400 V) and single-phase mode (230 V) without loss of energy! Among other things, it is equipped with a modern LED display that shows the number of hours worked, frequency and output voltage. The power plant reaches a maximum output of 5.5 kW and has a fuel tank capacity of 25 l.
The unique innovative VTS (voltage switching system) allows the use of the power plant in both three-phase mode (400 V) and single-phase mode (230 V) without loss of energy! It is no longer necessary to buy two separate power units: simply switch the mode and use the Könner & Söhnen power unit with the phase switching system at the desired voltage.

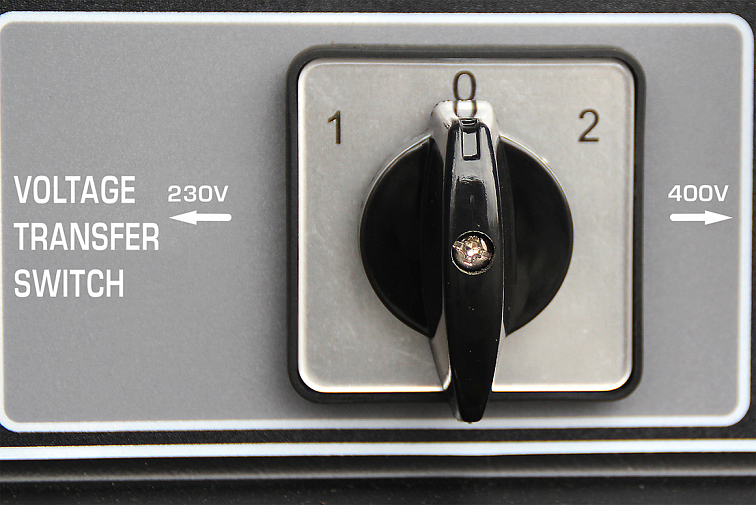

VTS SYSTEM
With the unique, innovative VTS (Voltage Transfer Switch) phase switching system, the generator can be used in both three-phase operation (380V) and single-phase operation (230V) without loss of power. There is no need to buy, store, operate and transport several generators to the site. One can simply switch the working mode and use the "Könner&Söhnen" generator with the phase switching system at the desired voltage.

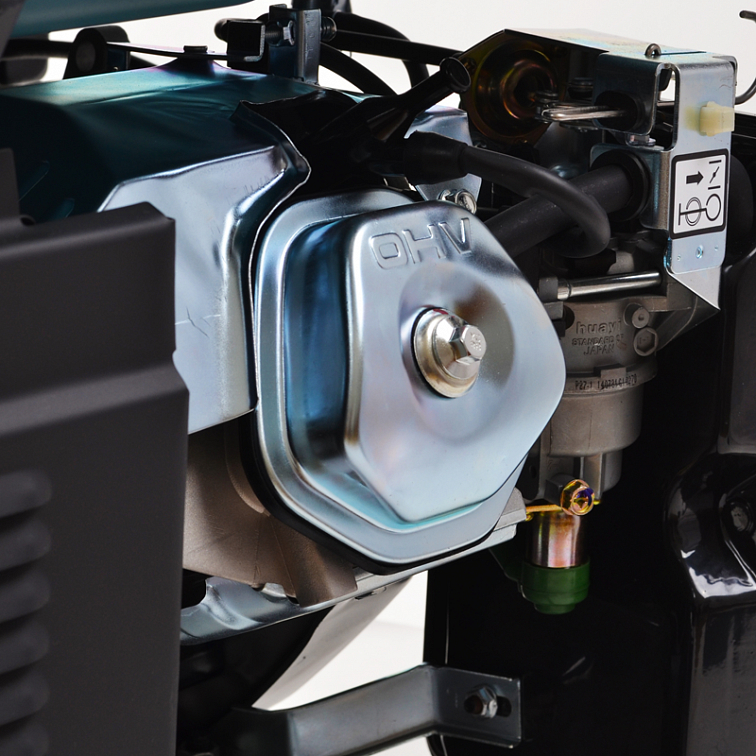

BRAND ENGINES
The engines of the K&S series were developed especially for the "Könner & Söhnen" trademark and have successfully passed several hours and multi-stage tests. The "Könner & Söhnen" brand motors are reliable, durable and cost-effective. The reliable "Könner & Söhnen" brand engine meets all European quality standards, including the latest EURO V exhaust emission standard.

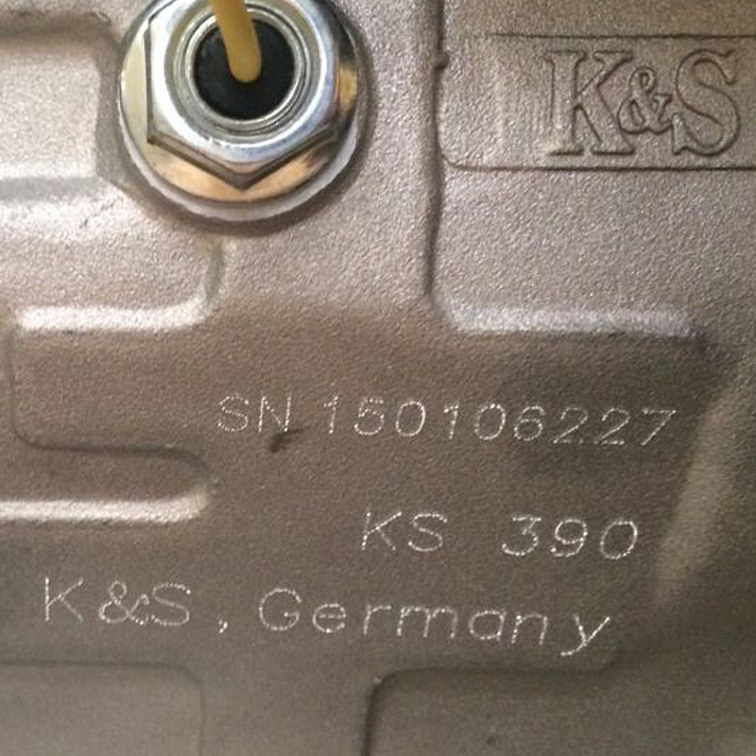

INDIVIDUAL SERIAL NUMBERS ON THE ENGINES
The engines comply with all international and European quality, consumption and environmental standards (including exhaust emission standards and machinery noise regulations). Each engine and each electric generator has an individual serial number to ensure high manufacturing and service quality. "Könner & Söhnen" engines are distinguished by their smooth start and reduced vibration. The power range of the engines offered is from 2 to 8 kW.

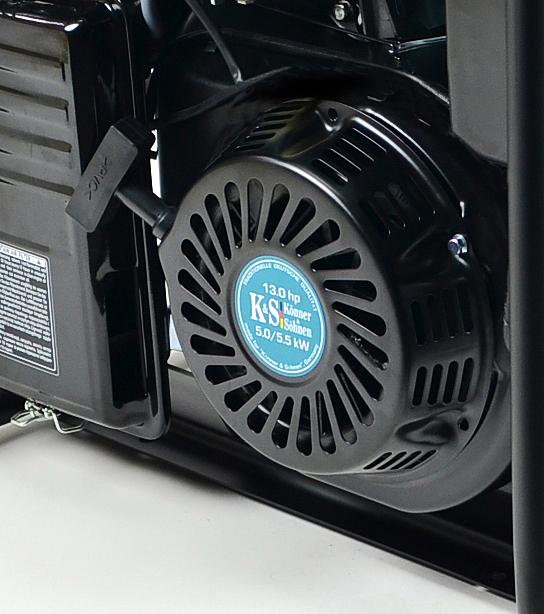

FLUENT AND CONVENIENT START SYSTEM
The simplified starting system allows the engine to start quickly without significant effort. The more powerful models are also equipped with an electric and/or self-starting system for convenience.

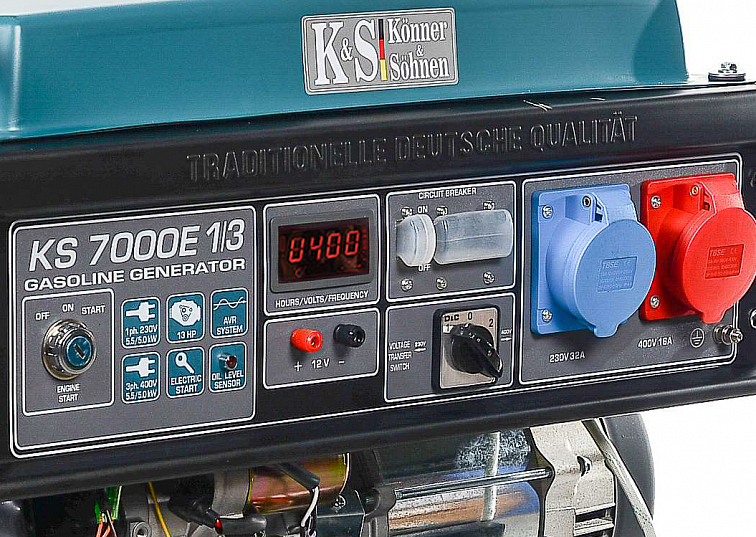

CONTORTABLE ERGONOMIC SWITCHBOARD
The convenient ergonomic switchboard makes the entire system easy to control and does not require any additional skills. The modern intellectual LED display always shows the number of hours worked, the current frequency and the output voltage. The display information helps to evaluate the system load correctly and to maintain the generator in time, which prolongs its service life.

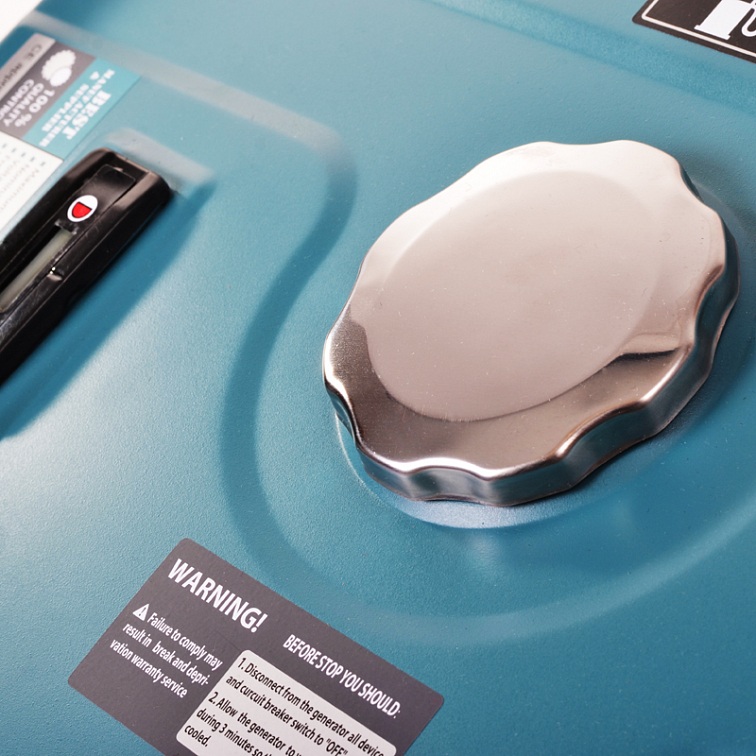

"Könner & Söhnen" generators are equipped with an enlarged steel fuel tank, which extends the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling.

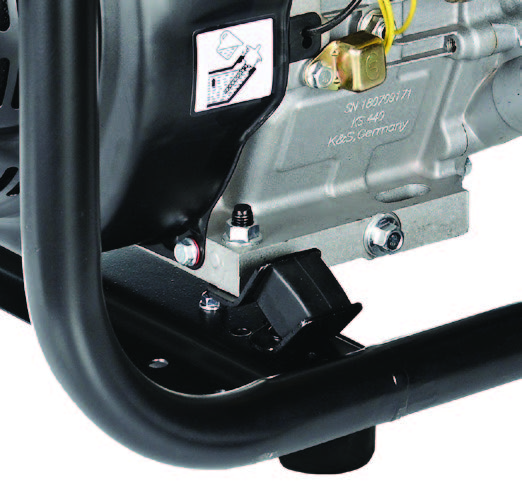

DAMPERS TO REDUCE VIBRATION
Additional parameters
| Category: | Gasoline |
|---|---|
| Weight: | 83 kg |
| Weight: | 61 - 120kg |
| Nominal power: | 3,1 - 5 kW |
| ? Fuel tank capacity: | 20,1 - 30 l |
| Maximum power: | 4,7 - 7,6 kW |
| Voltage: | 230/400 V |
| Starter: | Manual/Electric |
| Voltage, V: | 230 / 400 |
| Max. power (230/400V), kW: | 5.5 / 5.5 |
| Nominal power (230/400V), kW: | 5.0 / 5.0 |
| Frequency, Hz: | 50 |
| Current, A (max): | 21.73 / 9.03 |
| Sockets: | 1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A |
| Fuel tank capacity, l: | 25 |
| Average working time (50% output), h: | 17 |
| LED display: | voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB: | 70/95 |
| Socket 12V, A: | 12/8.3 |
| Engine model: | KS 390 |
| Engine type: | gasoline, single-cylinder, four-stroke, air-cooled |
| Engine power, hp/kW: | 13.0/9.56 |
| Oil sump volume, l: | 1.1 |
| Engine cylinder capacity, cm3: | 389 |
| Output power regulator: | AVR intelligent voltage stabilization system |
| Engine start: | manual/electric |
| Alternator winding: | Copper |
| Net dimensions (L*W*H), mm: | 680x545x550 |
| Gross dimensions (L*W*H), mm: | 700×545×590 |
| Net weight, kg: | 81 |
| Gross weight, kg: | 83 |
| Protective class: | IP23M |
