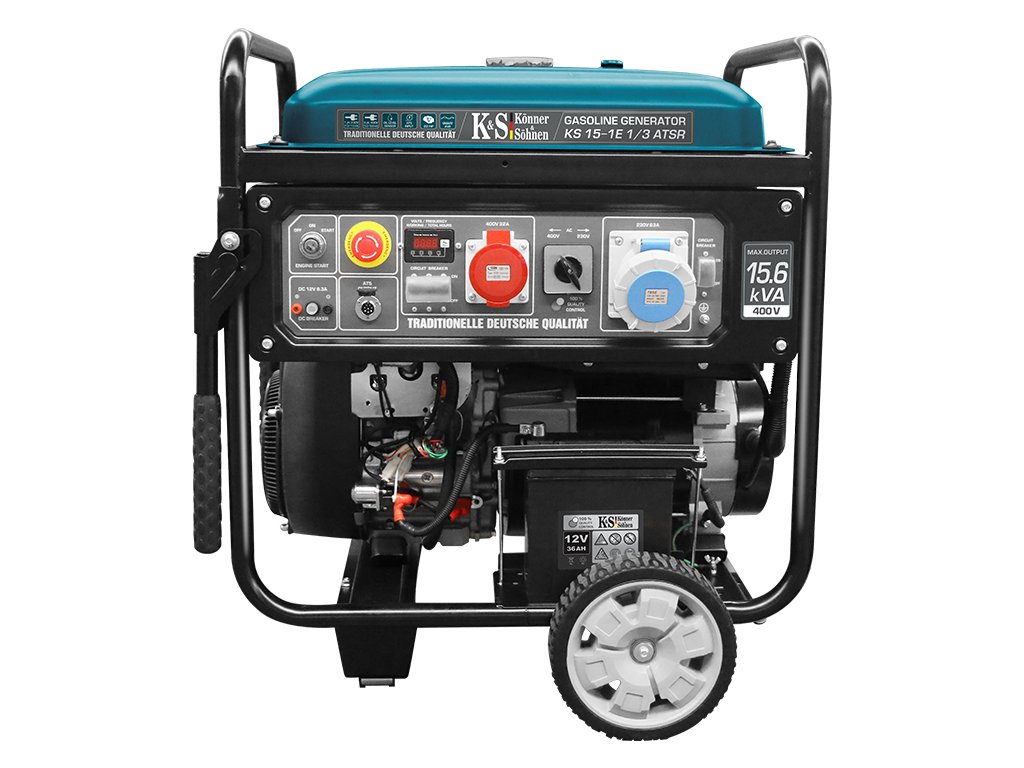

Könner & Söhnen Gasoline Generator KS 15-1E 1/3 ATSR
Max. power (230/400V): 11,5 / 13,5 kW
Nom. power (230/400V): 11 / 13 kW
Weight: 170 kg
Max. current (230/400V): 48 / 22 A
Könner & Söhnen Gasoline Generator KS 15-1E 1/3 ATSR
The powerful gasoline generator KS 15-1E 1/3 ATSR is based on a robust 22 hp two-cylinder company engine from "Könner & Söhnen", which meets all European quality standards, including the latest EURO 5 exhaust emission standards.
This generator is suitable for connection to an ATS unit and features a unique VTS phase switching system that allows the generator to be used in both single-phase (230 V) and three-phase (400 V) modes with minimal loss of power. A user-friendly ergonomic control panel with an engine emergency stop button and a multifunctional LED display allows monitoring of generator operation: voltage, frequency, operating hours and oil level. This model is equipped with sockets for complete draw-off of the current generated by the generator. These sockets are equipped with fuses and fitted with suitable plugs. The large fuel tank with a volume of 55 l ensures long and continuous operation.

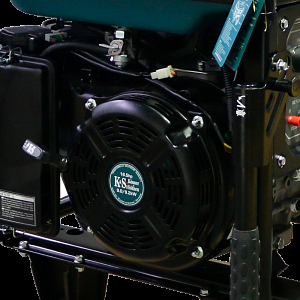

POWERFUL ENGINE
Powerful and robust single-cylinder air-cooled four-stroke engine (18.5 hp). Each engine meets European and international standards for quality, economy and environmental friendliness (including pollutant emissions and noise pollution).

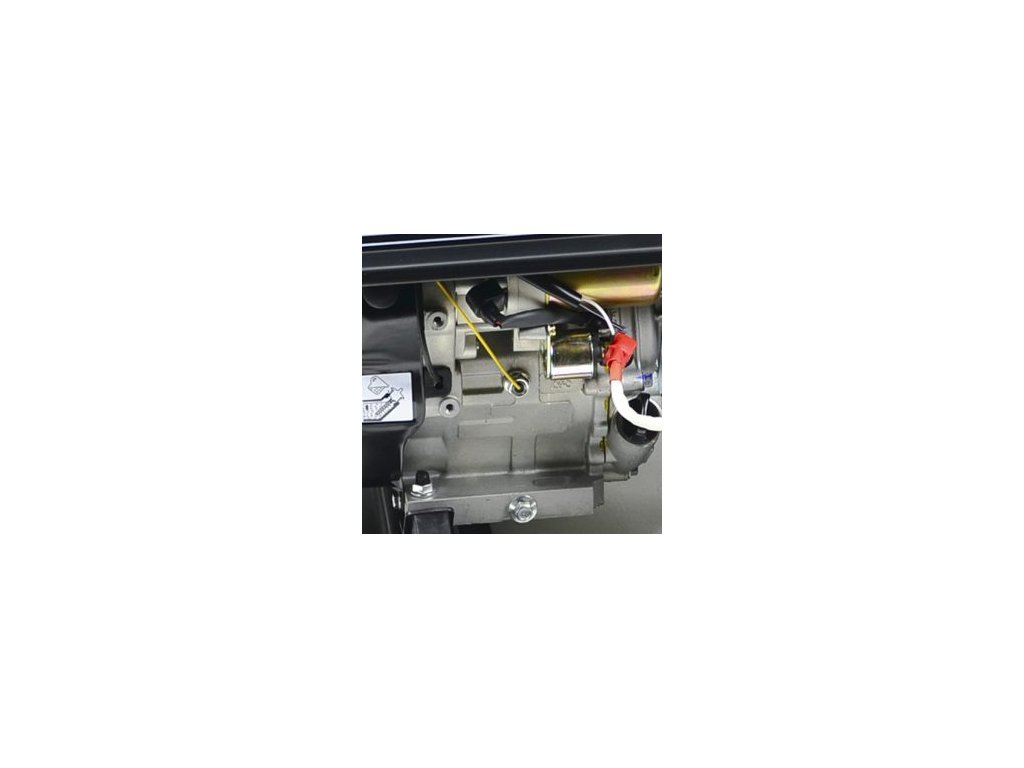

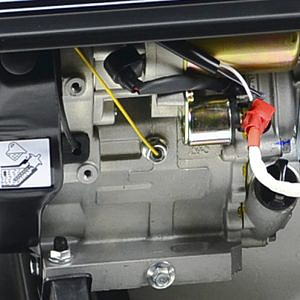

SIMPLE STARTING SYSTEM
The easy start system allows the engine to be started quickly and without much effort. The more powerful models are also equipped with an electric starting system. The overhead valve engine (OHV) extends engine life, reduces fuel consumption and noise levels.

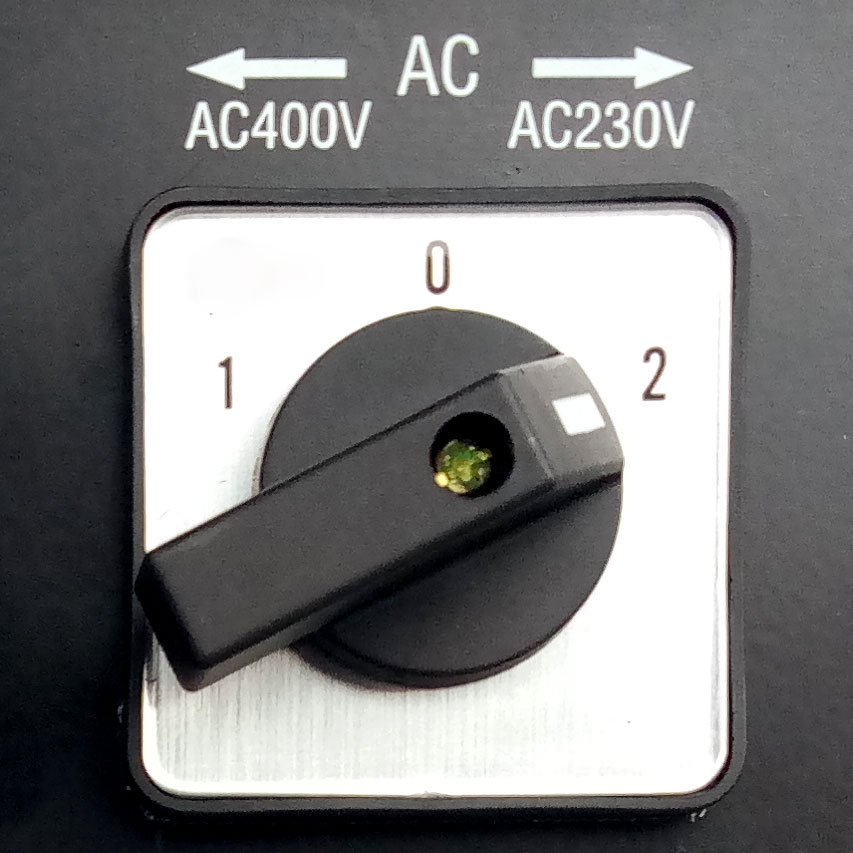

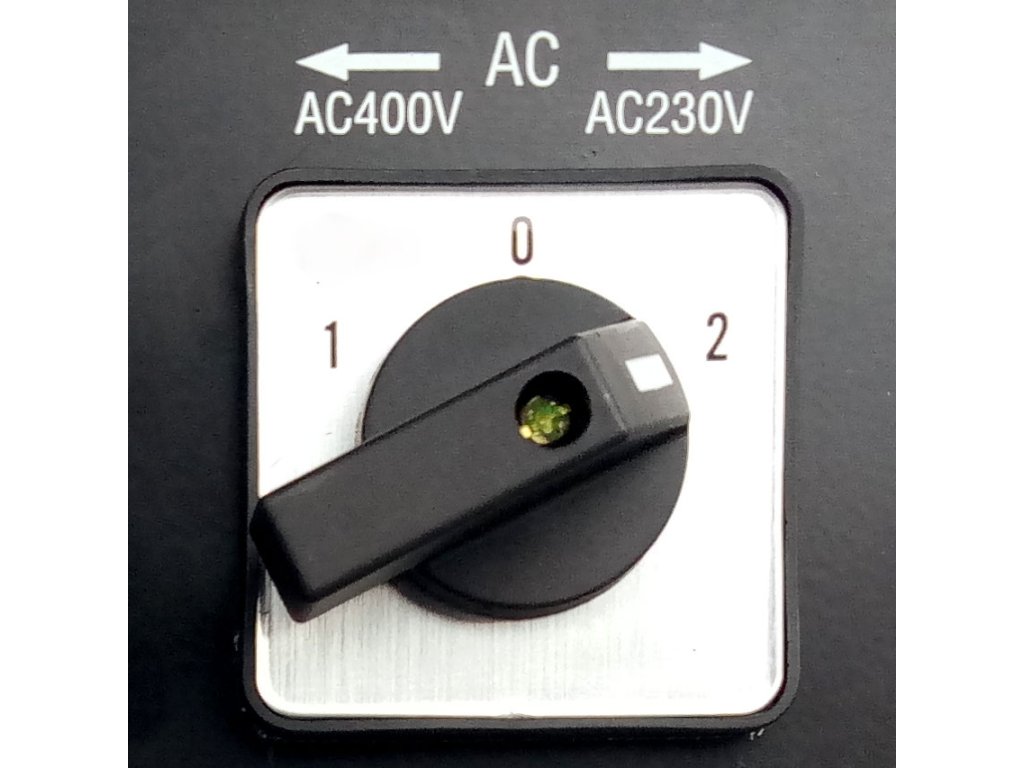

VTS SYSTEM
The unique innovative VTS (Voltage Transfer Switch) phase switching system with equivalent power for single-phase (230V) and three-phase (400V) loads. Each mode has its own circuit breaker.

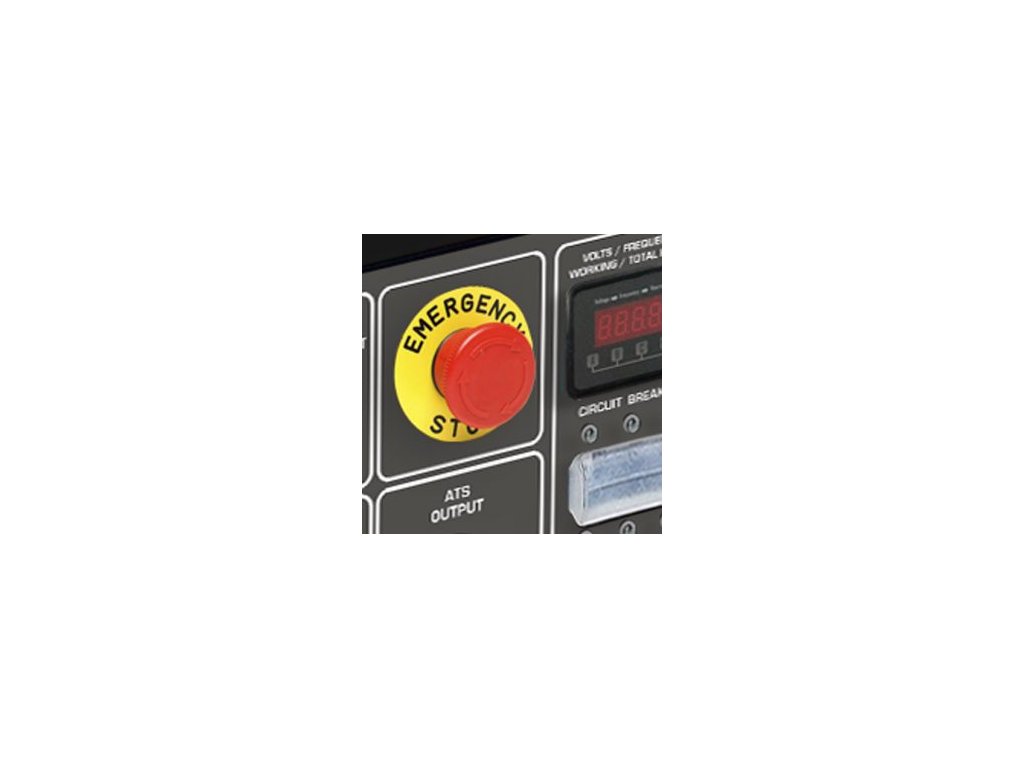

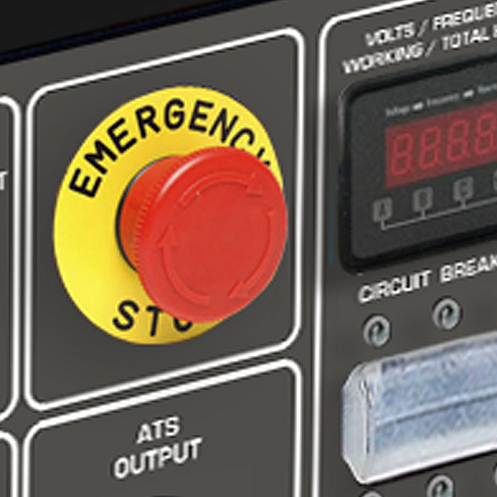

ERGONOMIC CONTROL PANEL
The user-friendly ergonomic control panel allows easy operation of the entire unit, requires no special skills and is equipped with sockets designed to ensure the full power supplied by the power unit, and a modern LED display (hour counter, frequency, voltage, oil alarm). The panel is equipped with an emergency stop button.

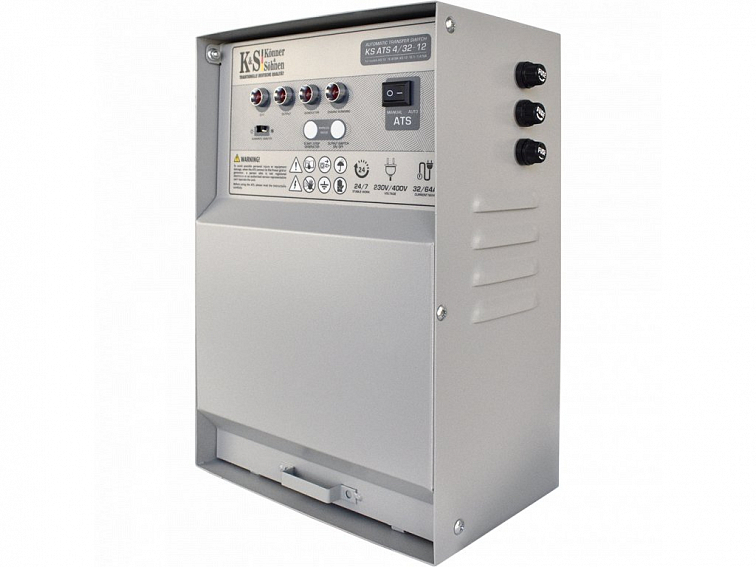

ATS CONNECTION - KS ATS 4/32-15
The ATS (Automatic Transfer Switch) unit automatically starts the power station and transfers the load to it when the main power supply is disconnected and automatically stops the power station when the central power supply is restored.

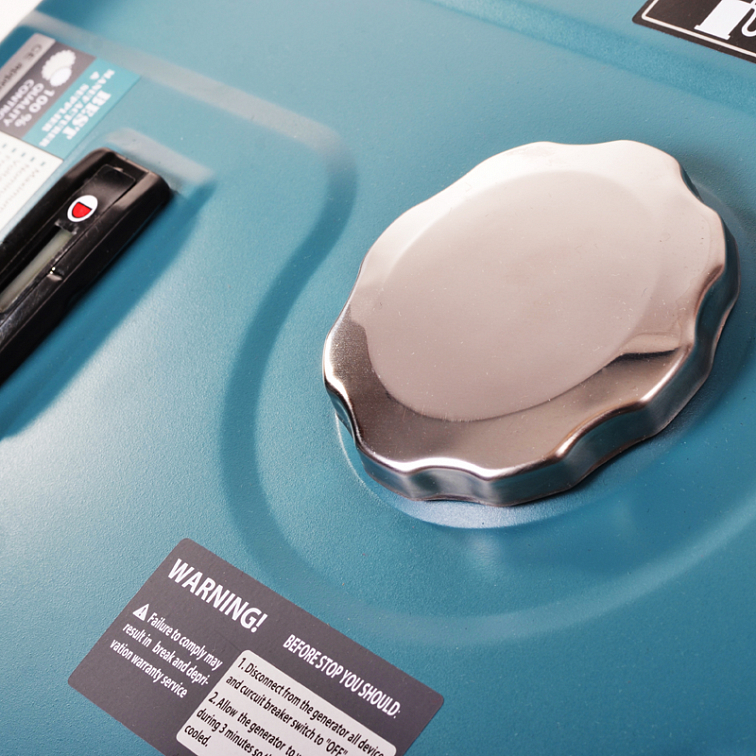

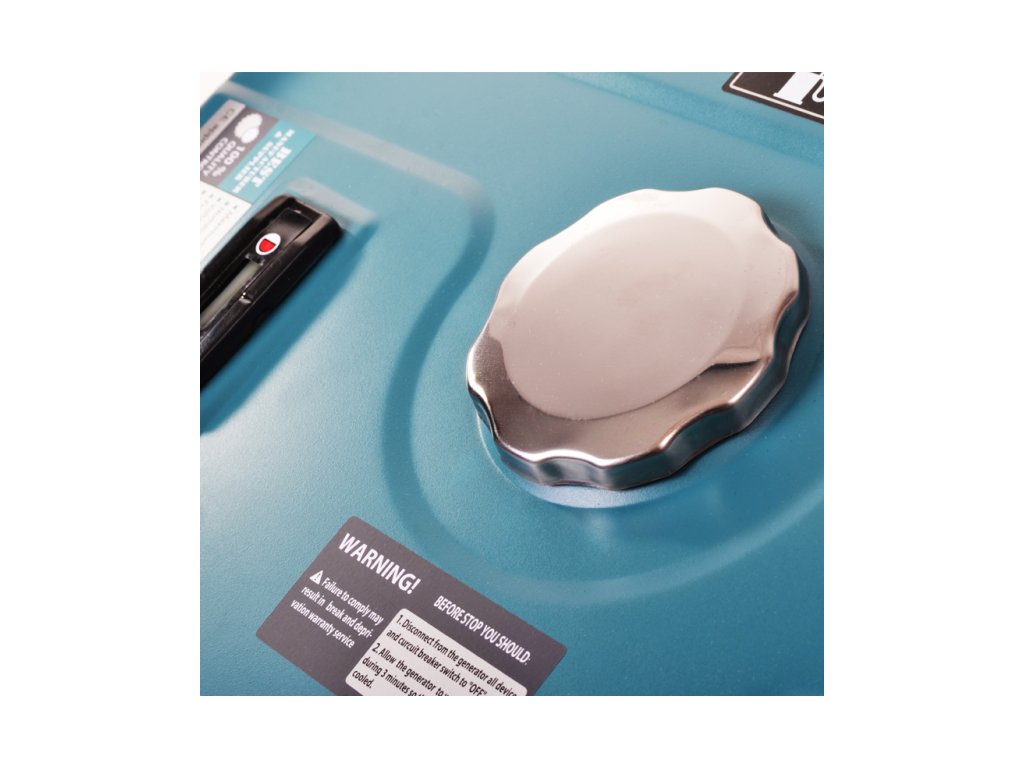

STEEL TANK
"Könner & Söhnen" generators are equipped with an enlarged steel fuel tank, which extends the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling.
Additional parameters
| Category: | Gasoline |
|---|---|
| Weight: | 157 kg |
| Voltage, V: | 230/400 |
| Max. power/nominal power 230 V: | 11.5/11.0 kW |
| Max. power/nominal power 400 V: | 15.6/15.0 kVA |
| Frequency, Hz: | 50 Hz |
| Current, A (max): | 48/22 |
| Sockets: | 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A |
| Fuel tank capacity, l: | 55 |
| LED display: | voltage, frequency, working hours, oil alarm |
| Noise level Lpa (7m)/Lwa, dB: | 72/97 |
| Output power 12V, A: | + |
| Engine model: | KS 780 |
| Engine type: | gasoline two-cylinder, four-stroke air-cooled |
| Engine power, hp/kW: | 22.0/16.18 |
| Oil sump volume, l: | 1.5 |
| Engine cylinder capacity, cm3: | 750 |
| Output power regulator: | AVR intelligent voltage stabilization system |
| Engine start: | Electric |
| Alternator winding: | Copper |
| Net dimensions (L*W*H), mm: | 797×705×805 |
| Gross dimensions (L*W*H), mm: | 807×715×905 |
| Net weight, kg: | 155 |
| Gross weight, kg: | 170 |
| Battery, Ah: | 36 |
| Protective class: | IP23M |
