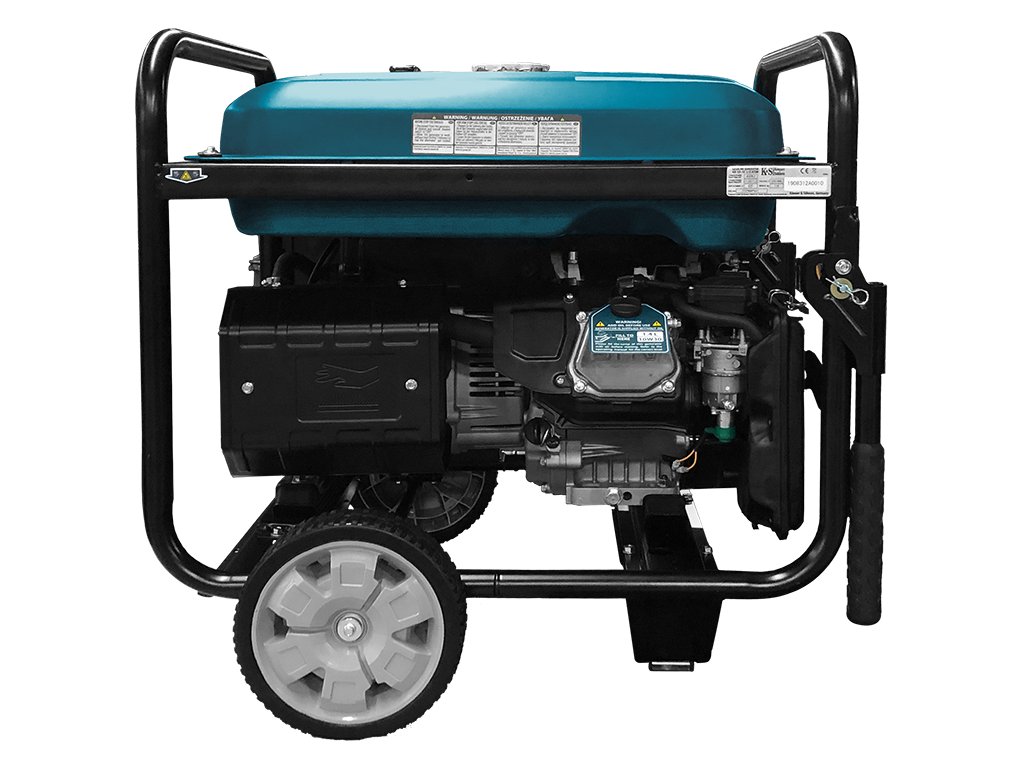

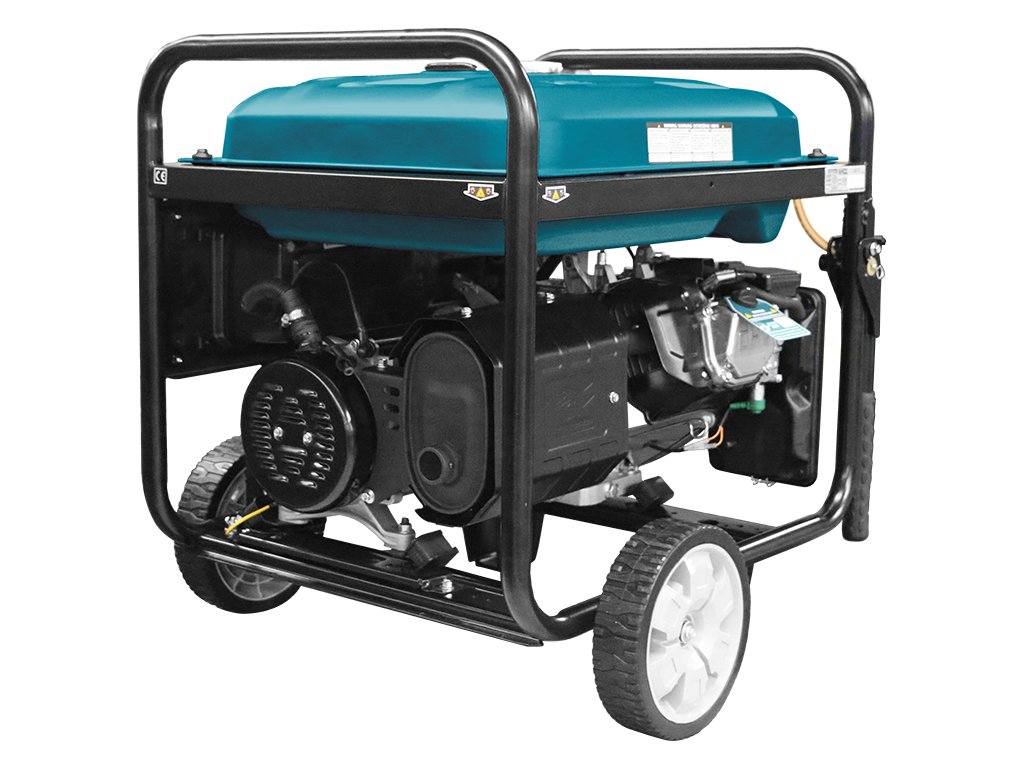

Könner & Söhnen Gasoline Generator KS 12-1E 1/3 ATSR
Max. power (230/400V): 8,2 / 10 kW
Nom. power (230/400V): 8 / 9,5 kW
Weight: 136 kg
Max. current (230/400V): 35 / 17 A
Könner & Söhnen Gasoline Generator KS 12-1E 1/3 ATSR
The gasoline generator KS 12-1E 1/3 ATSR offers maximum power with one cylinder!
The generator is suitable for connecting an ATS unit and features a unique VTS phase switching system that allows the generator to be used in both single-phase mode (230 V) and three-phase mode (400 V) without loss of power. A user-friendly ergonomic control panel with a generator emergency stop button and a multifunctional LED display allows monitoring of generator operation: voltage, frequency, operating hours and oil level. This model is equipped with sockets for complete draw-off of the current generated by the generator. These sockets are equipped with fuses and fitted with suitable plugs. The large fuel tank with a volume of 55 l ensures long and continuous operation.

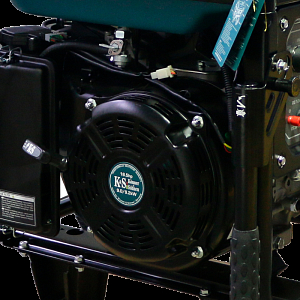

POWERFUL ENGINE
Powerful and robust single-cylinder air-cooled four-stroke engine (18.5 hp). Each engine meets European and international standards for quality, economy and environmental friendliness (including pollutant emissions and noise pollution).

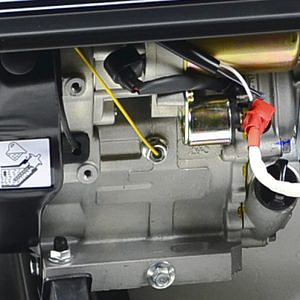

FLUENT AND CONVENIENT START SYSTEM
The simplified starting system allows the engine to start quickly without any significant effort. The more powerful models are additionally equipped with an electric and/or self-starting system for convenience.

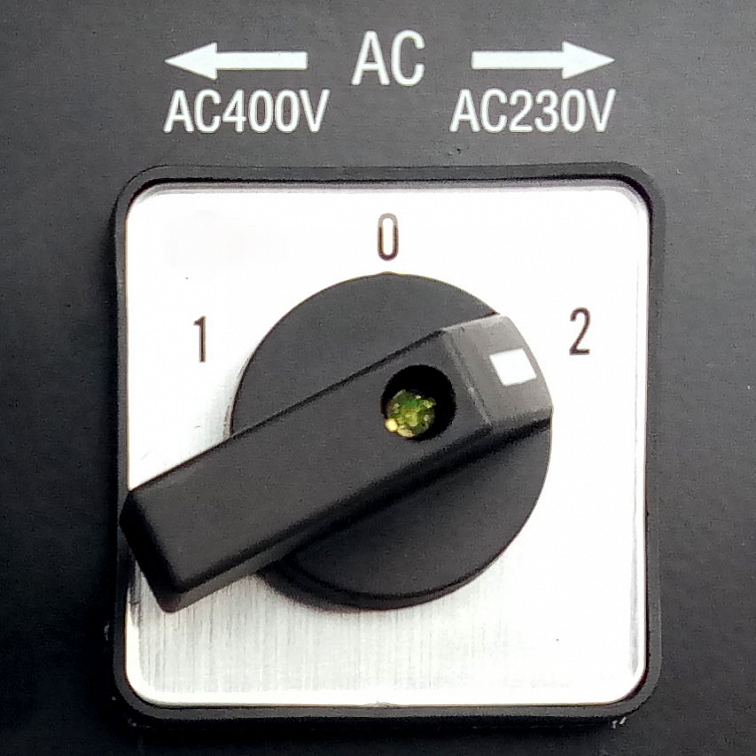

VTS SYSTEM
The unique innovative VTS (Voltage Transfer Switch) phase switching system with equivalent performance for single-phase (230V) and three-phase (400V) loads. Each mode has its own circuit breaker.

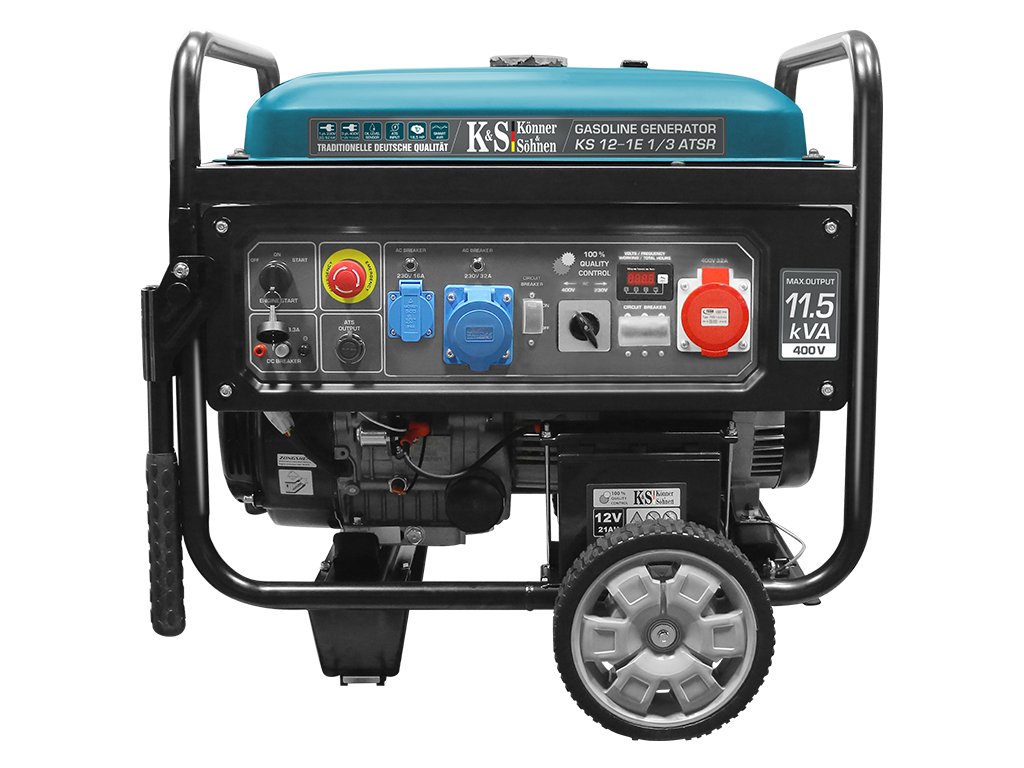

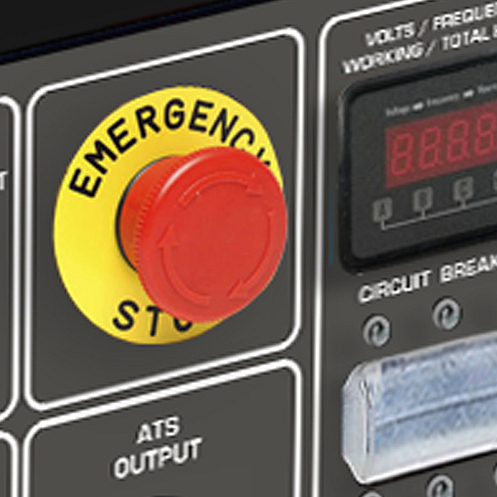

ERGONOMIC CONTROL PANEL
The user-friendly ergonomic control panel allows easy control of the entire unit, requires no special skills and is equipped with sockets for the complete collection of the current generated by the generator. Each socket is equipped with a corresponding plug and Emergency stop button.

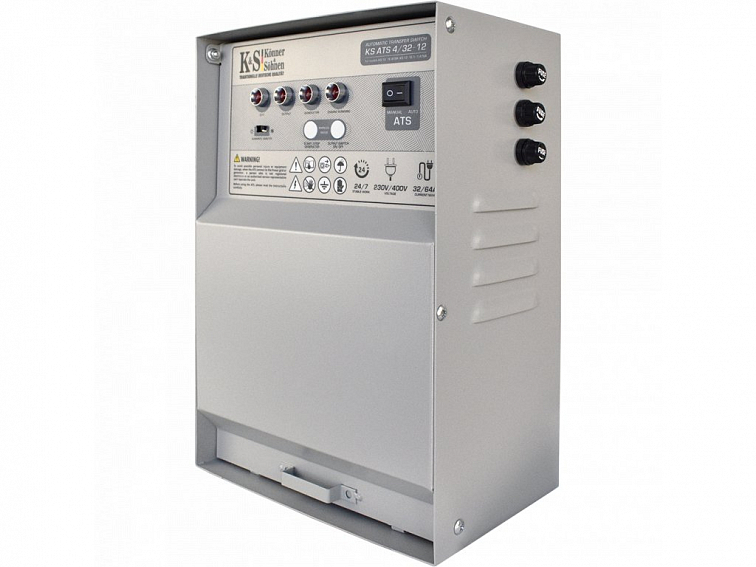

ATS CONNECTION - KS ATS 4/32-12
The generator is suitable for connection of an ATS system. The universal 8-pin connection socket does not limit the selection of the automatic transfer system (ATS).
STEEL TANK
"Könner & Söhnen generators are equipped with an enlarged steel fuel tank, which increases the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling.
Additional parameters
| Category: | Gasoline |
|---|---|
| Weight: | 145 kg |
| Weight: | 121 - 180kg |
| Nominal power: | 7,1 - 9 kW, 11,1 - 13 kW |
| ? Fuel tank capacity: | 50,1 - 60 l |
| Maximum power: | 7,7 - 9,6 kW, 9,7 - 12,6 kW |
| Voltage: | 230/400 V |
| Starter: | Electric |
| Voltage, V: | 230/400 |
| Max. power/nominal power 230 V: | 8.2/8.0 kW |
| Max. power/nominal power 400 V: | 11.5/11.25 kVA |
| Frequency: | 50 Hz |
| Current, A (max): | 35/17 |
| Sockets: | 1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 400 V 32 A |
| Fuel tank capacity, l: | 55 |
| LED display: | voltage, frequency, working time, oil alarm |
| Noise level Lpa (7m)/Lwa, dB: | 71/96 |
| Socket 12V, A: | 12/8.3 |
| Engine model: | KS 650 |
| Engine type: | gasoline, single-cylinder, four-stroke, air-cooled |
| Engine power, hp/kW: | 18.5/13.6 |
| Oil sump volume, l: | 1.4 |
| Engine cylinder capacity, cm3: | 625 |
| Output power regulator: | AVR intelligent voltage stabilization system |
| Engine start: | Manual/electric |
| Alternator winding: | 1/0.8 Copper |
| Net dimensions (L*W*H), mm: | 790×705×680 |
| Gross dimensions (L*W*H), mm: | 800×715×780 |
| Net weight, kg: | 120 |
| Gross weight, kg: | 136 |
| Battery, Ah: | 21 |
| Protective class: | IP23M |
