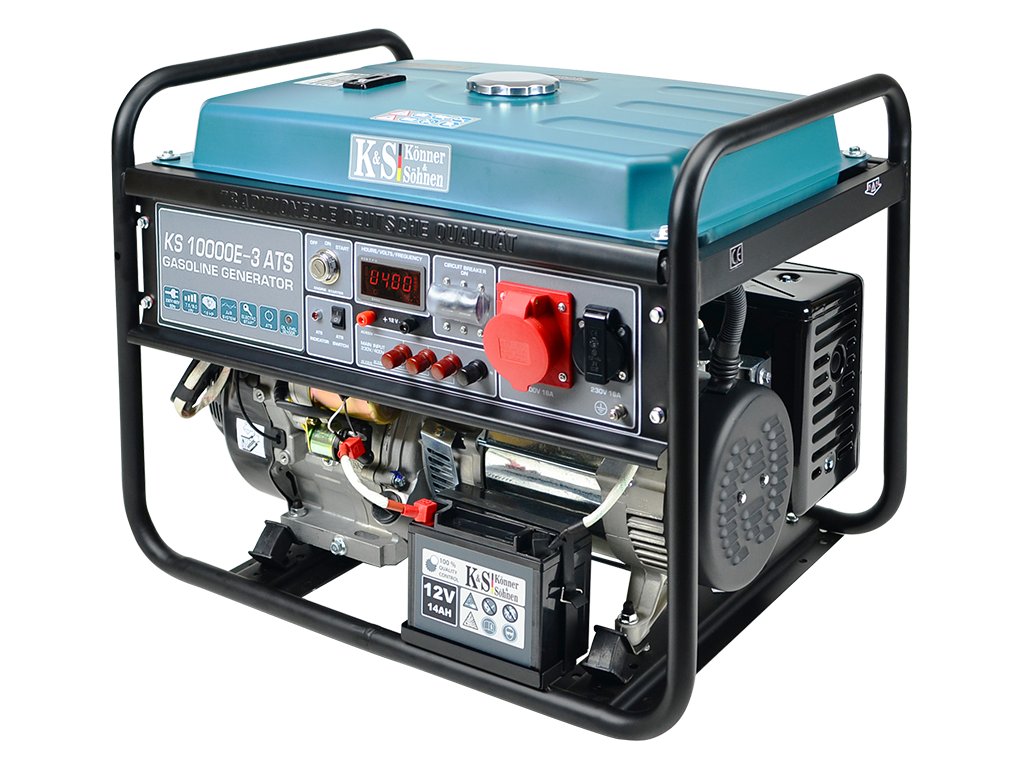

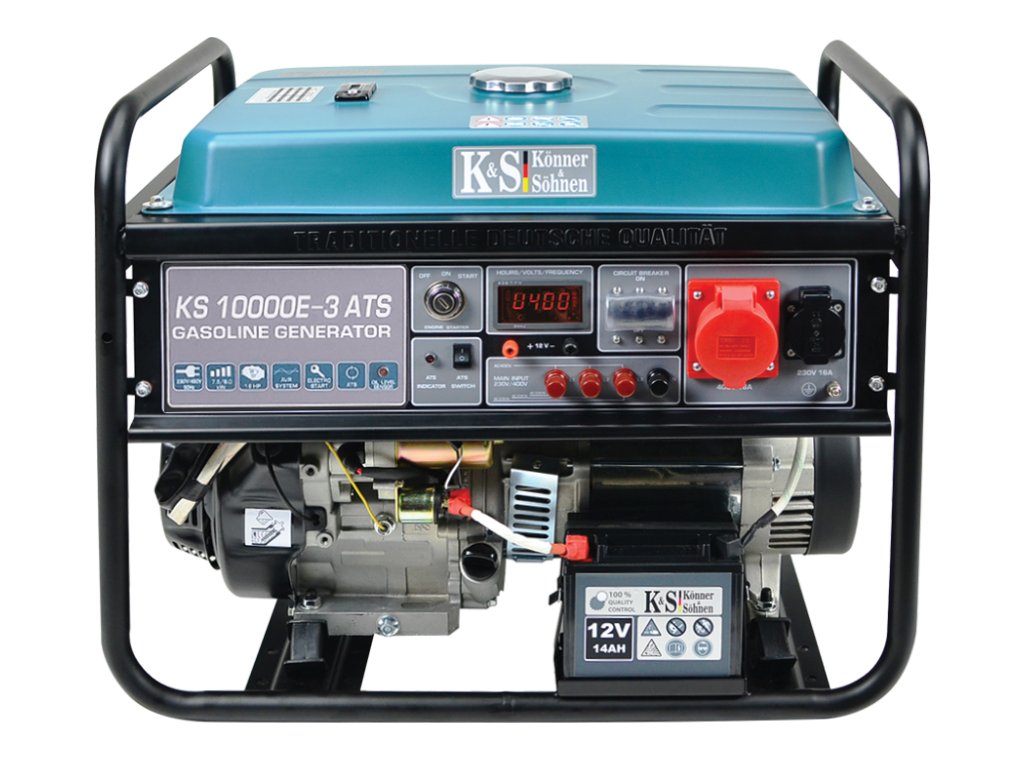

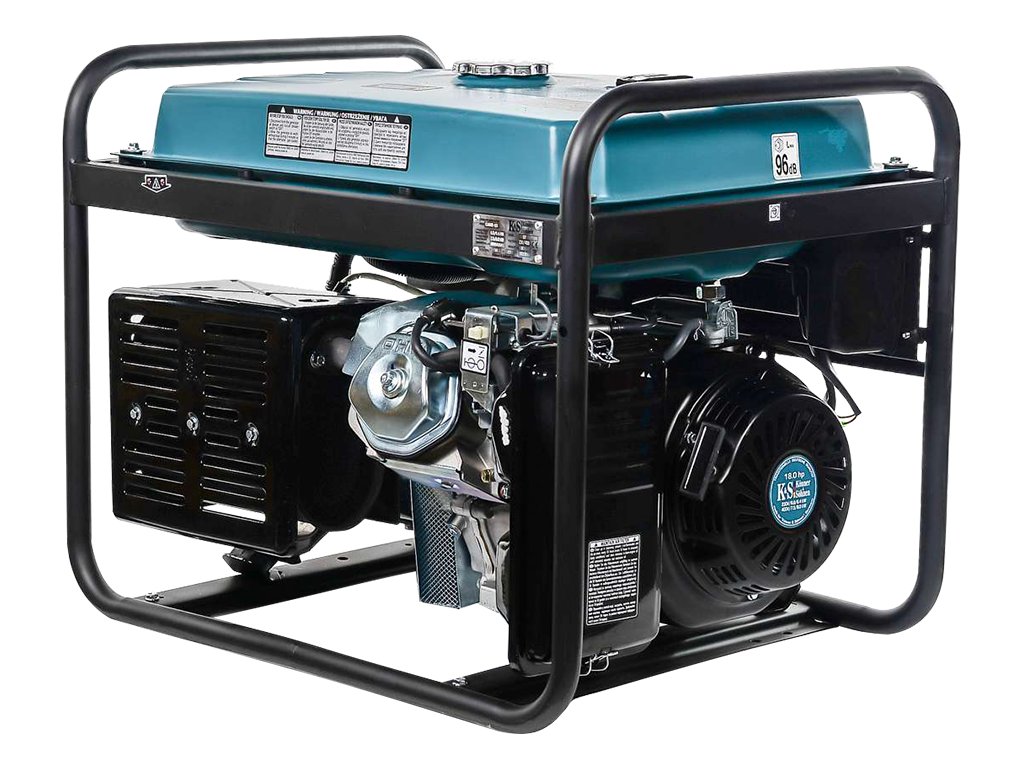

Könner & Söhnen Gasoline Generator KS 10000E 3 ATS
Maximum power: 8 kW
Nominal power: 7,5 kW
Weight: 92 kg
Max current: 14.45 A
Könner & Söhnen Gasoline Generator KS 10000E 3 ATS
GASOLINE GENERATORS WITH ATS SYSTEM
One of the special features of our generators is the use of the integrated ATS unit (automatic back-up switch-on). These are the generators with the ATS function. With this function, the generator can be connected to the main power grid. In the event of a power failure, this function is automatically triggered and is switched off when the power supply is restored. With our competitors, you have to purchase additional equipment for this function, which requires complicated assembly. With our generators, this unit is already integrated. Therefore, the installation is simple and the price is low.
BRANDS ENGINES
The engines of the K&S series were developed especially for the "Könner & Söhnen" trademark and have successfully passed several hours and multi-stage tests. The "Könner & Söhnen" brand engines are reliable, durable and cost-effective. The reliable "Könner & Söhnen" brand engine meets all European quality standards, including the latest EURO V exhaust emission standard.
INDIVIDUAL SERIAL NUMBERS ON THE ENGINES
Könner & Söhnen engines meet all global and European quality standards, including the latest EURO V emission standards. This is proven by European quality certificates. Each engine and each power unit has its own serial number, which enables us to control the quality of production and service.
ATS FUNCTION
The generator control panel with the ATS function (automatic switchover to emergency power) is equipped with the connections for external power supply, the ATS switch and the ATS operating light.
USER-FRIENDLY ERGONOMIC CONTROL PANEL
Thanks to the ergonomic generator control panel, you can get the job done comfortably as all functions are conveniently arranged: modern LED display (operating hours counter, frequency, voltage), electric start (optional), overload protection switch, oil level sensor, sockets, earthing plugs, terminals and more.
230V OR 400V
The series presented includes models for single-phase and three-phase consumers. The generator panel with the AVR function has the appropriate terminals for connecting 230 V and 400 V mains.
ALTERNATOR WITH 100% COPPER WINDING
The generators of the "Könner & Söhnen" brand are equipped with a high-quality synchronous alternator with 100% copper winding. Only the copper winding can withstand the highest voltage overloads without damage and thus ensure permanent and reliable operation of the generator.
CONTACTORS
Reliable contactors made of 100 % copper have an increased capacity of 40 A to ensure continuous trouble-free operation of the ATS system.
FLUENT AND CONVENIENT STARTING SYSTEM
The simplified starting system allows the engine to start quickly without significant effort. The more powerful models are also equipped with an electric and/or self-starting system for convenience.
STEEL TANK
Könner & Söhnen generators are equipped with an enlarged steel fuel tank, which increases the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling.
REINFORCED STEEL FRAME
This model is equipped with a sturdy steel frame with a diameter of ø 32 mm, which protects the generator from various damages and enables convenient transport.
IMPROVED VIBRATION DAMPING SYSTEM
All models of the "Könner & Söhnen" brand generators are equipped with a double anti-vibration system, which ensures quiet and durable generator operation. The engines are mounted on high-quality rubber pads. The reinforced steel frame is fitted with rubber feet for added vibration, slip and corrosion protection.
Accessories you can purchase for this power generator:
Automatic Battery Charger
User-friendly compact automatic battery charger for charging generator batteries.
The battery charger is protected against:
• Overheating
• Short circuit
• Reversed Polarity
• Overcharging of the battery
KS EX3M-4S
Socket adapter
KS CR-25M
Extension cable
Könner & Söhnen 10W-30
High-quality semi-synthetic multigrade engine oil ULTRA Performace from "Könner & Söhnen" for petrol and diesel engines.
Additional parameters
| Category: | Gasoline |
|---|---|
| Weight: | 90 kg |
| Weight: | 61 - 120kg |
| Nominal power: | 7,1 - 9 kW |
| ? Fuel tank capacity: | 20,1 - 30 l |
| Maximum power: | 7,7 - 9,6 kW |
| Voltage: | 230/400 V |
| Starter: | Manual/Electric |
| Voltage, V: | 400 |
| Max. power, kW: | 8.0 |
| Nominal power, kW: | 7.5 |
| Frequency, Hz: | 50 |
| Current, A (max): | 14.45 |
| Drawers: | 1x16A (230V), 1x16A (400V) |
| Fuel tank capacity, l: | 25 |
| Average working time (50% output), h: | 15 |
| LED display: | voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB: | 71 / 96 |
| DC output power, V/A: | 12 / 8.3 |
| Engine model: | KS 440 |
| Engine type: | Gasoline 1-cylinder, 4-stroke with air cooling |
| Engine power, hp/kW: | 18.0/13.24 |
| Oil sump volume, l: | 1.2 |
| Engine cylinder capacity, cm3: | 440 |
| Output power regulator: | AVR intelligent voltage stabilization system |
| Engine start: | manual/electric/auto |
| Alternator winding: | Copper |
| Net dimensions (L*W*H), mm: | 680x545x550 |
| Gross dimensions (L*W*H), mm: | 700х545х590 |
| Net weight, kg: | 89.2 |
| Gross weight, kg: | 91.6 |
| Protective class: | IP23M |
