The ATS unit (automatic transfer to emergency power) automatically starts the generator and transfers the load when the main power supply is interrupted and automatically stops the generator when the main power supply is restored.

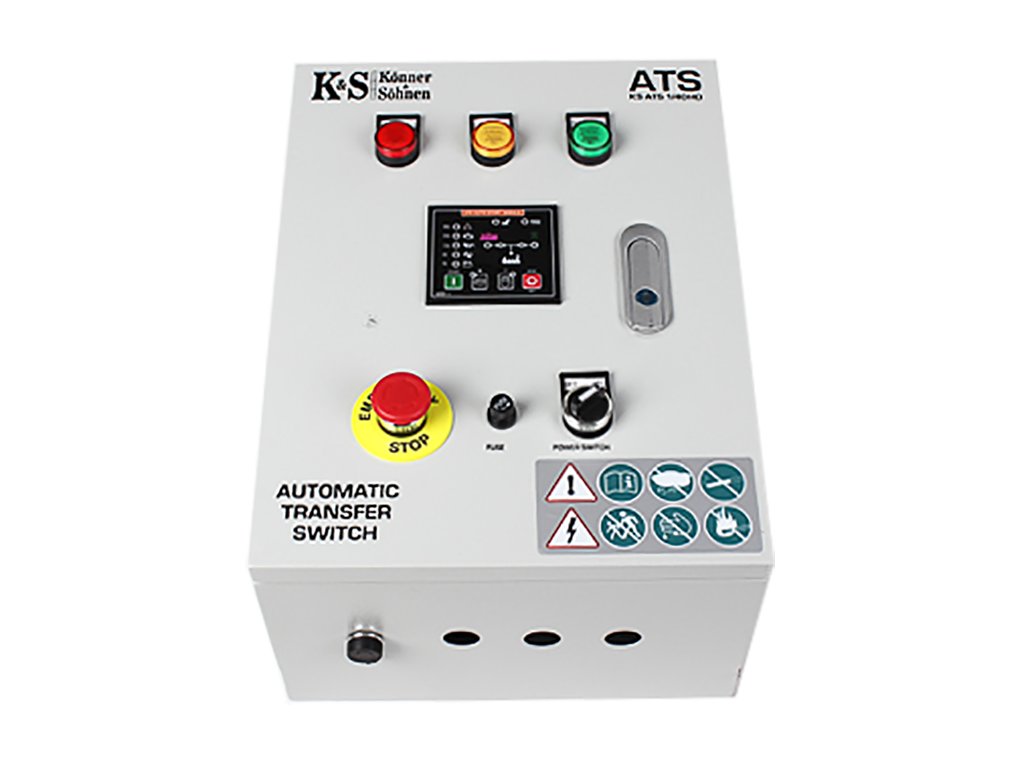

ATS-Connector ATS KS 4/63HD - for three-phase diesel generators from K&S
.png)
The ATS (Automatic transfer switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected.

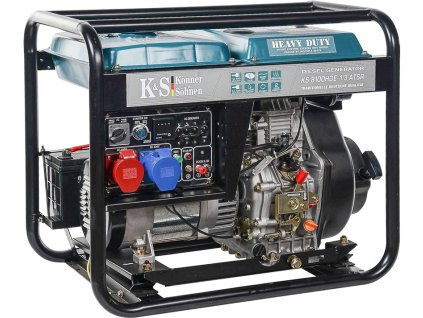

The KS ATS 4/63HD ATS unit is suitable for single-cylinder diesel generators from Könner & Söhnen with the ATSR abbreviation in the article, which are equipped with a universal 6-pin connector for connecting the automatic transfer switch (ATS input).
Gasoline and diesel generators with an electric starter are equipped with a universal 6-pin connector for an automatic transfer switch unit (ATS input). The ATS unit has a PLC that allows the automatic start/stop of the generator to be programmed in the event of a power outage and after its restoration.
PROGRAMMABLE LOGIC CONTROLLER OF THE ATS UNIT:
– Automatic/manual operation
– Programming of engine starting time after power outage
– Programming of engine warm-up time before connecting to consumer
– Setting of starter operation time
– Engine performance monitoring
– Battery charging when the generator is off
Additional parameters
| Category: | Accessories |
|---|---|
| Weight: | 10 kg |
| Battery voltage: | 12 V DC |
| Current (max), A: | 63 |
| Working environment: | from -10°C to +55°C; humidity: ⩽60% |
| Storage environment: | from -10°C to +70°C; humidity: ⩽60% |
| Insulation class: | AC1.5KV / 1min 1mA |
| Maximum battery charging current from the built-in power supply, A: | 2 |
| Control cable length, m: | 4.4 |
| Voltage, V: | 230/400 |
| Frequency, Hz: | 50 |
| IP protection class: | IP41 |
| Net dimensions (LxWxH), mm: | 320х190х400 |
| Gross dimensions (LxWxH), mm: | 420х220х520 |
| Net weight, kg: | 8.4 |
| Gross weight, kg: | 8.8 |
