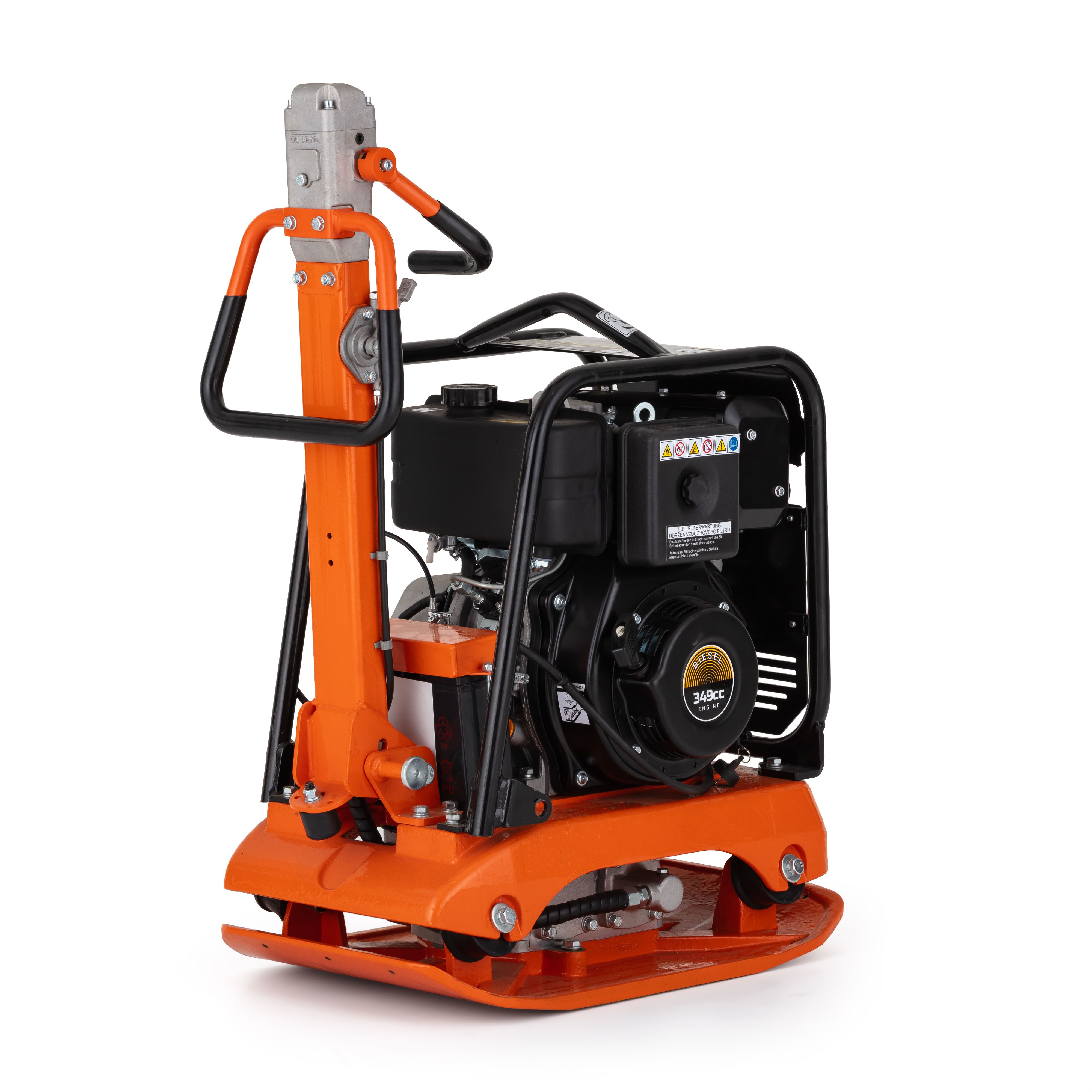

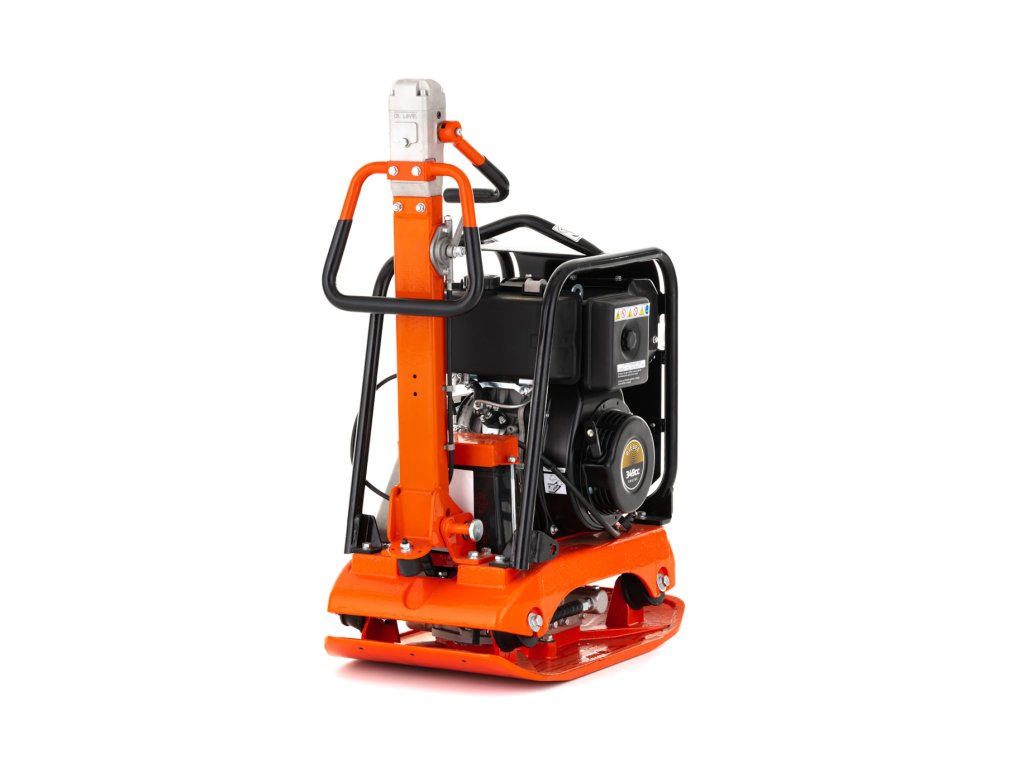

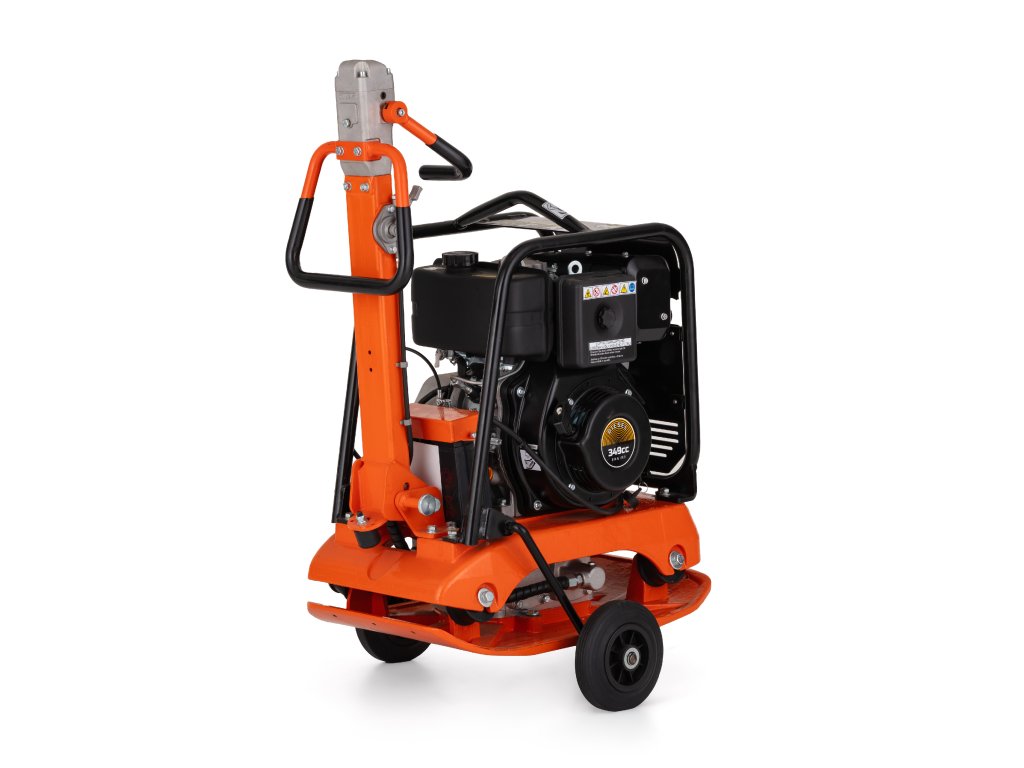

Hahn & Sohn Vibrating plate HCH170-HD350FE
Weight: 185 kg
Engine power: 4,9 kW
Lift volume: 349 cm³
Fuel: Unleaded gasoline (ROZ 95)
Hahn&Sohn Vibrating plate HCH170-HD350FE
Vibrating plates are among the most heavily loaded construction machines, which is why we focus on simple and solid construction solutions in our production. The most popular model in our range, the HCH170, is based on a solid vibrating plate for hard work and a durable motor with an output of 4.9 kW.
- Vibrating plate suitable for compacting a wide range of substrates
- Reliable, powerful Honda gasoline engine
- Ergonomic handle for comfortable working
- Vibration protection to protect the motor and for a long service life
Additional parameters
| Category: | Wacker plates & Vibrating tamper |
|---|---|
| Weight: | 185 kg |
| Frequency of undercutting/vibration: | 5400 vpm |
| Centrifugal force: | 30.5 kN |
| Maximum efficiency: | 650 m²/h |
| Plate size: | 700x435 mm |
| Dimensions: | 725x650x1150 mm |
| Engine displacement: | 349 cm³ |
| Maximum power: | 4,9 kW |
| Engine type: | 1-cylinder, four-stroke petrol engine, OHV, air-cooled |
| Tank volume: | 3,5 l |
| Oil tank volume: | 1,1 l |
