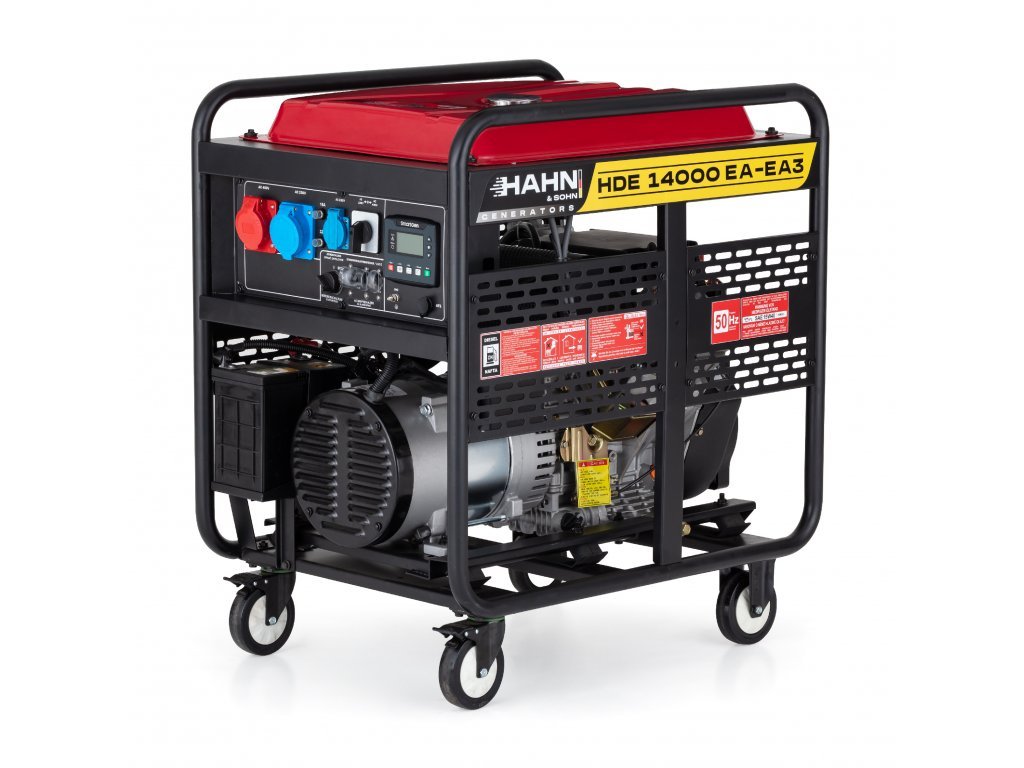

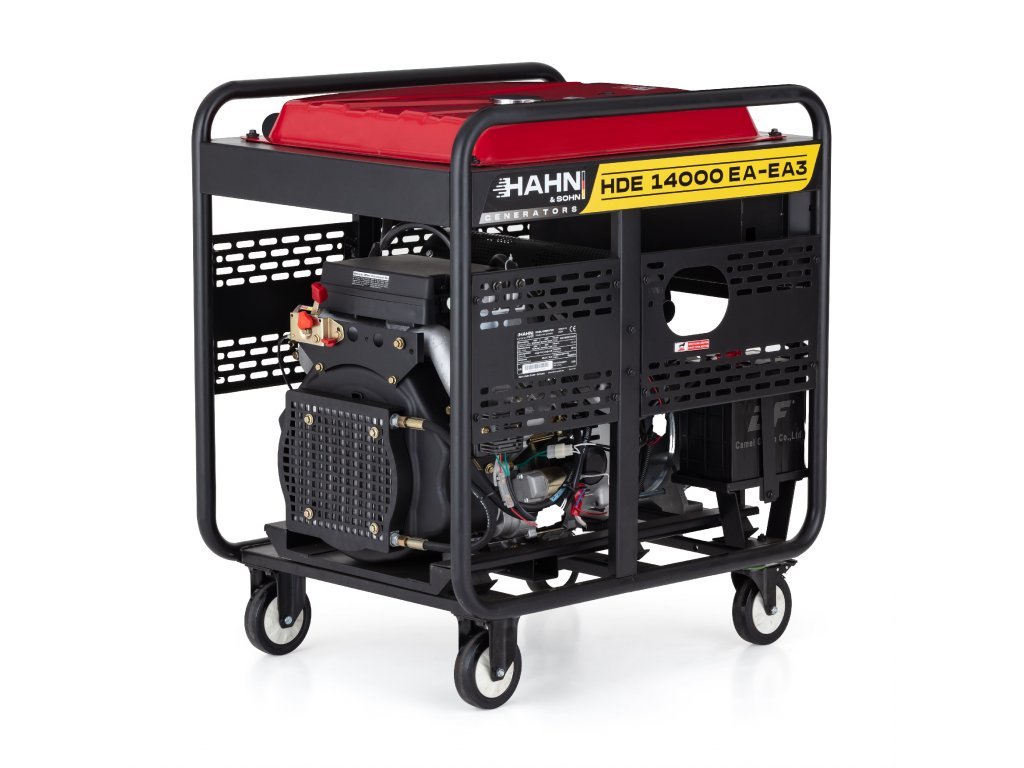

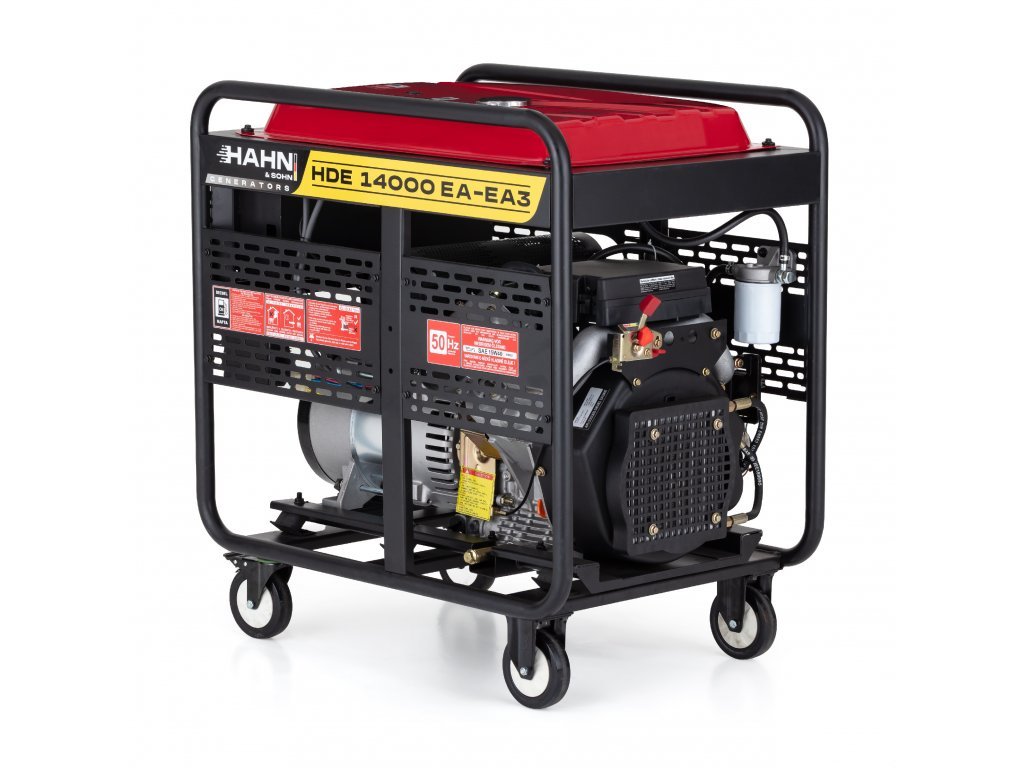

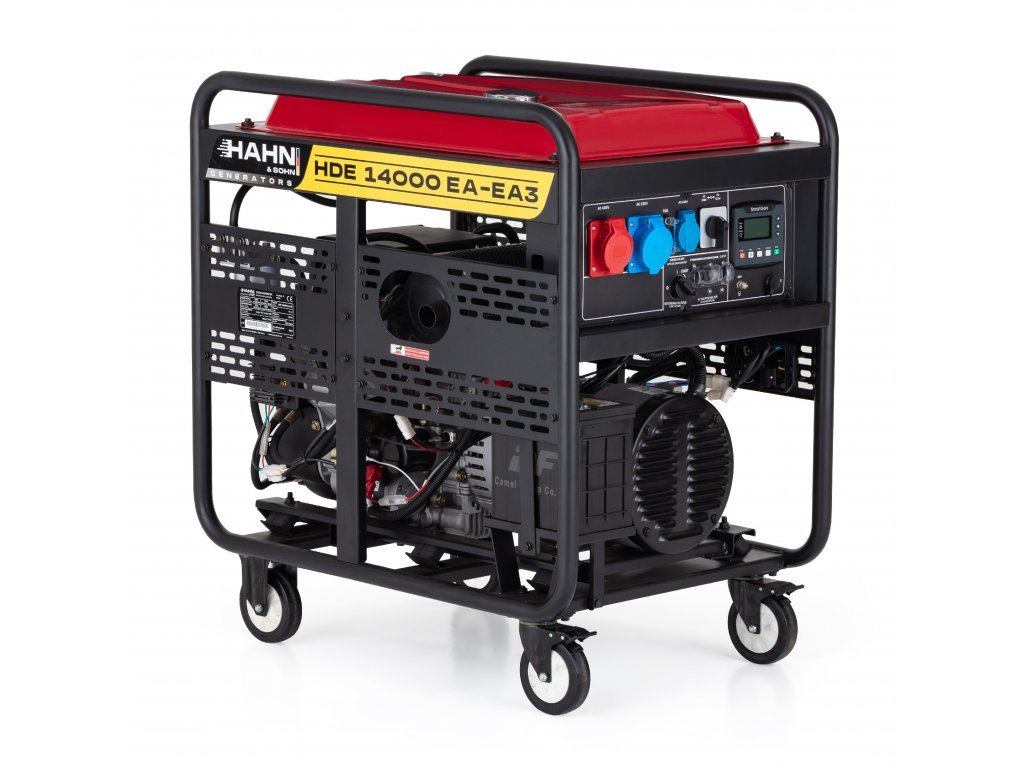

Hahn & Sohn Diesel Generator HDE14000EA-EA3
- Maximum power (230V/400V): 11000 W / 11000 W
- Nominal power (230V/400V): 10000 W / 10000 W
- Output voltage: 230V/400V
- Nominal current: 18.04 A
Hahn & Sohn Diesel Generator HDE14000EA-EA3
The modern diesel generator impresses with its powerful performance, reliability and trouble-free operation. The Hahn & Sohn HDE14000 EA-EA3 is versatile: on construction sites, events, in agriculture or in the household. The power generator is also suitable for emergency power supply.
Powerful engine
We have equipped the power generator with an engine of the highest quality. The air-cooled 2-cylinder engine with a displacement of 875 cm³ delivers an impressive 15 kW. With such power, you can rely on the generator even for very demanding operation or when used as an emergency power source.
Reliable and long operation

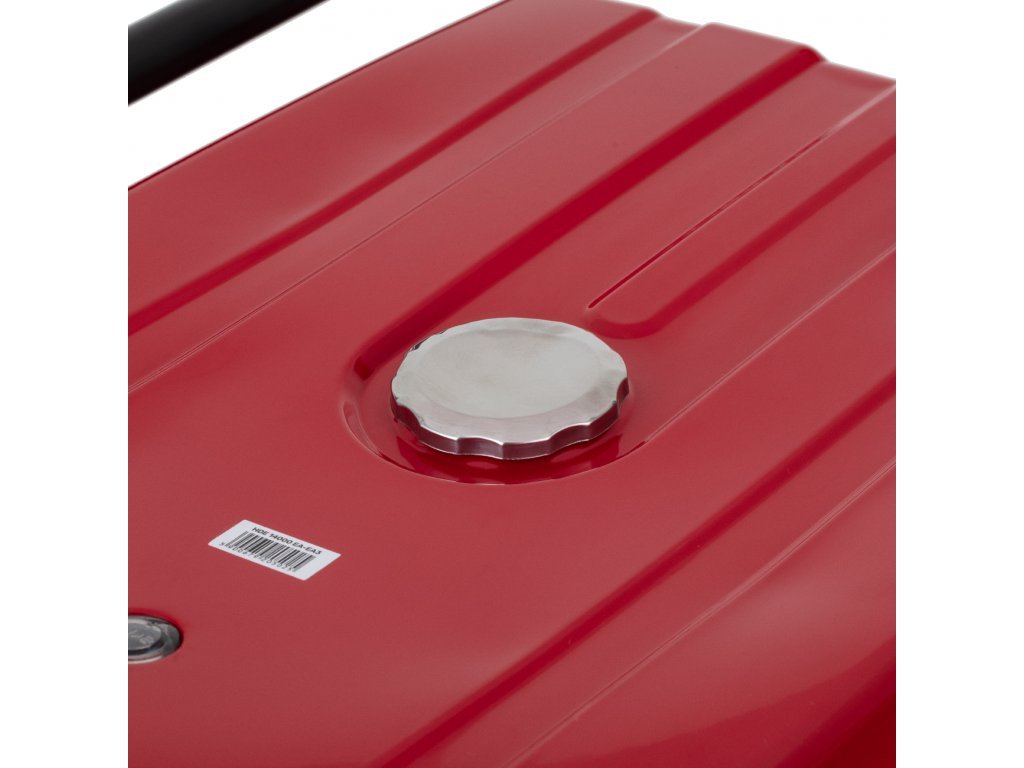

If you are looking for a power generator that can guarantee a long and steady power supply, the Hahn & Sohn HDE 14000 A3 is a good choice. Thanks to the large 46-litre diesel tank, the power generator can run for hours without the need to refill fuel.

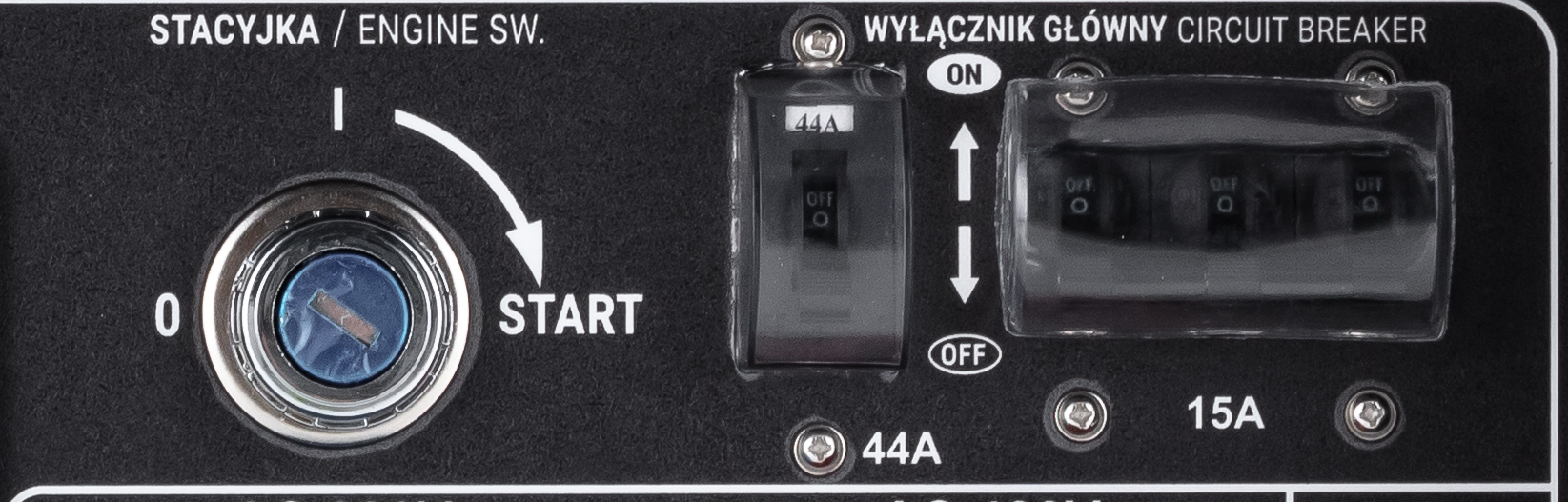

Electric starter
Only one button needs to be pressed to start the generator. The electric starter makes operating the unit much easier.

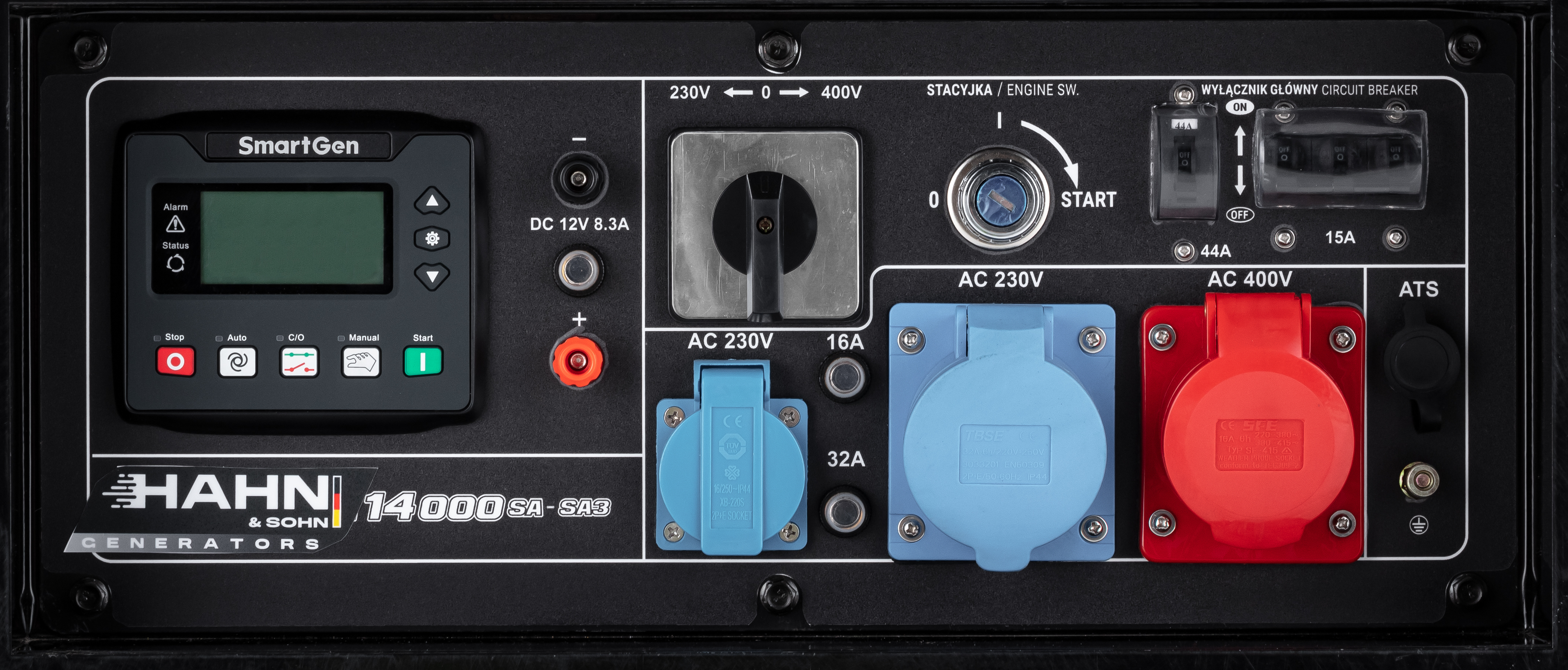

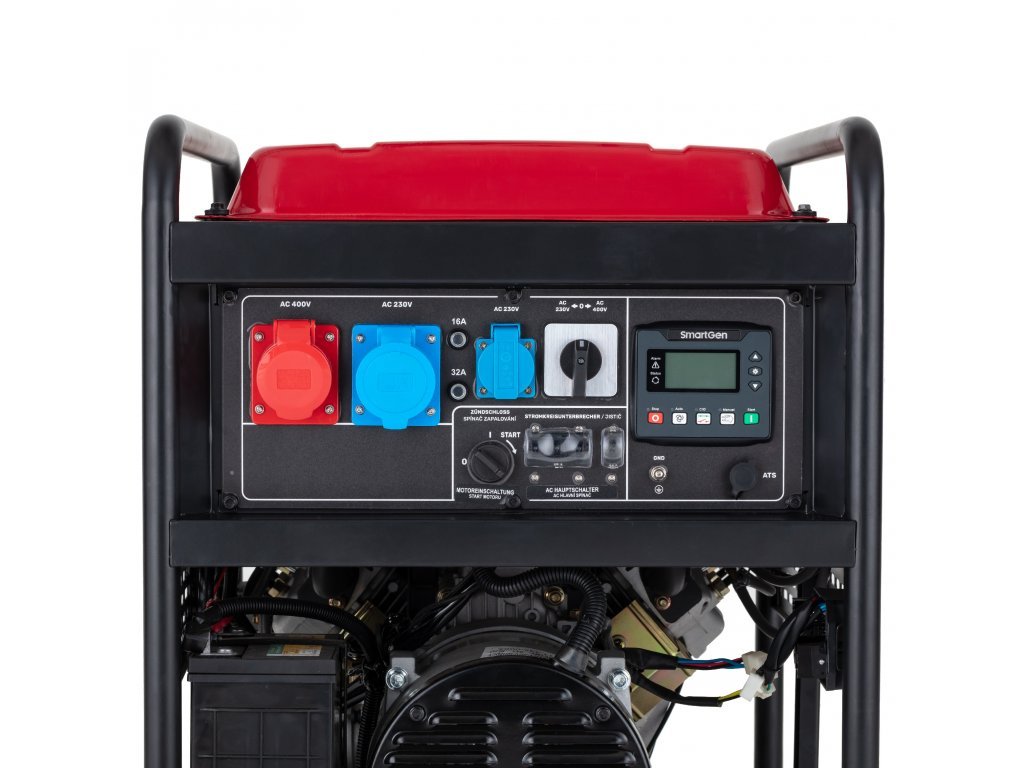

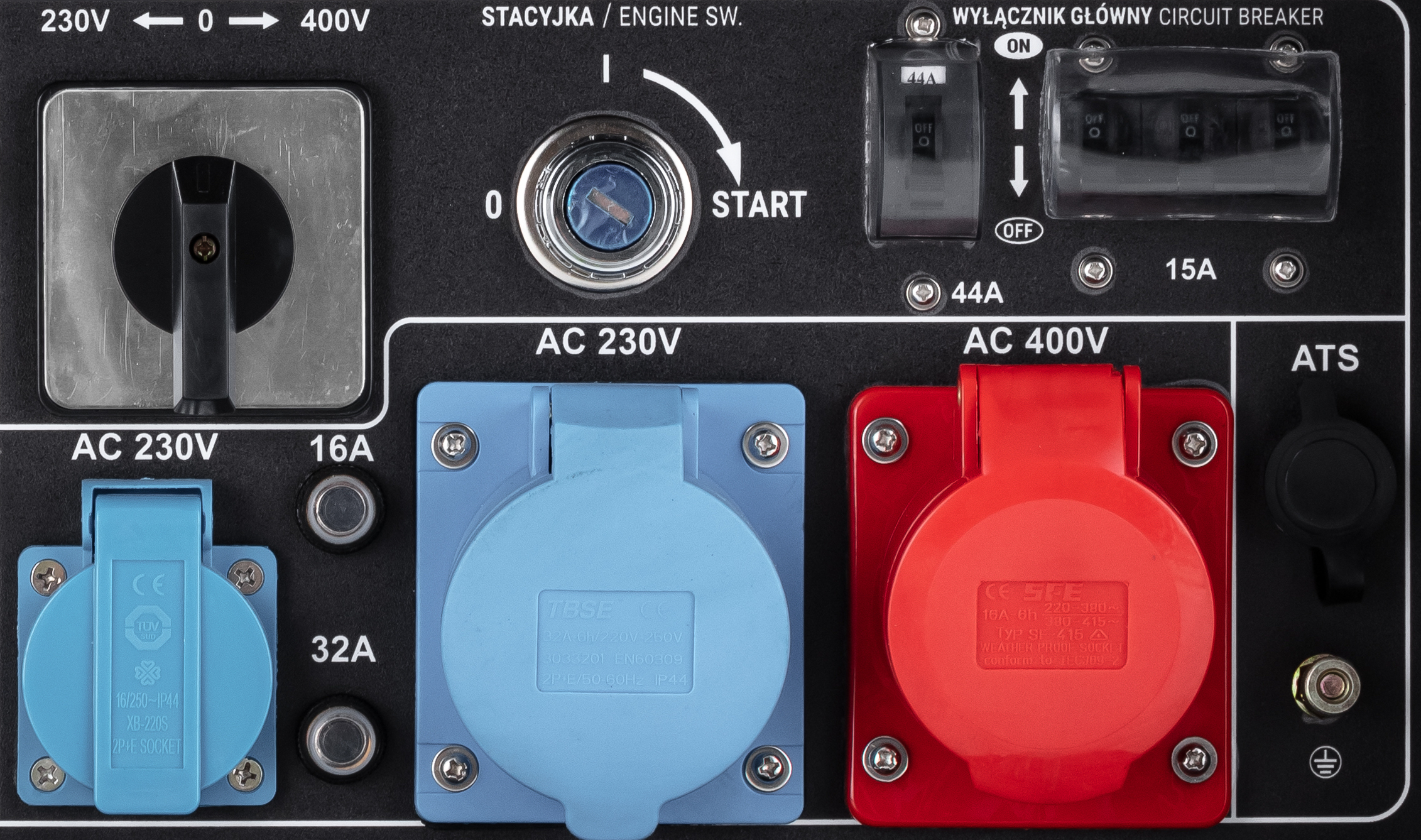

Practical control panel
An ergonomic control panel is located on the front of the generator. It informs you about the status of the power generator and enables you to operate it easily. This makes the operation of the unit very comfortable and easy right from the first start-up.
Single-phase and three-phase operation
The HDE14000 power generator can be operated both single-phase and three-phase. It then supplies either 230V (single-phase) or 400V (three-phase). The resulting power is either 10KW/10KVA at 230V and 10KW/12.5KVA at 400V (nominal power) or 11KW/11KVA at 230V and 11KW/13.75KVA at 400V (max. power). The control panel ensures easy switching between modes. The power generator is therefore an all-rounder and can be used at home, in the holiday home, as well as on construction sites or in the company.
Oil sensor
The power generator has an oil sensor that indicates in good time that oil needs to be topped up or changed. This helps to prevent possible damage to the engine.
Safe
The Hahn & Sohn HDE14000 EA-EA3 diesel generator is a professional and reliable power generator that has passed all necessary tests and certifications, including emissions testing.
Operations manual
Additional parameters
| Category: | Generators |
|---|---|
| Warranty: | 2 years |
| Weight: | 160 kg |
| Weight: | 121 - 180kg |
| Nominal power: | 9,1 - 11 kW |
| ? Fuel tank capacity: | 20,1 - 30 l |
| Maximum power: | 9,7 - 12,6 kW |
| Voltage: | 230/400 V |
| Starter: | Electric |
| Maximum power: | (230V/400V): 11000W / 11000W |
| Nominal power: | (230V/400V): 10000W / 10000W |
| Output voltage: | 230V/400V |
| Nominal current: | 18,04 A |
| Tank volume: | 26l |
| Engine: | Diesel engine Hahn & Sohn |
| Engine type: | 2-cylinder, 4-stroke, OHV, air-cooled |
| Engine power: | 15kW |
| Volume: | 875 cm³ |
| Weight: | ca. 160 kg |
| Dimensions: | 870 x 640 x 800 mm |
| Voltage regulation: | AVR |
| Engine speed: | 1500 RPM |
| Fuel consumption: | 1,8 - 2,5 l/h |
| Sockets: | 400V (16A), 230V (32A), 230V (16A) |
| Oil tank volume: | 1,5 l |
