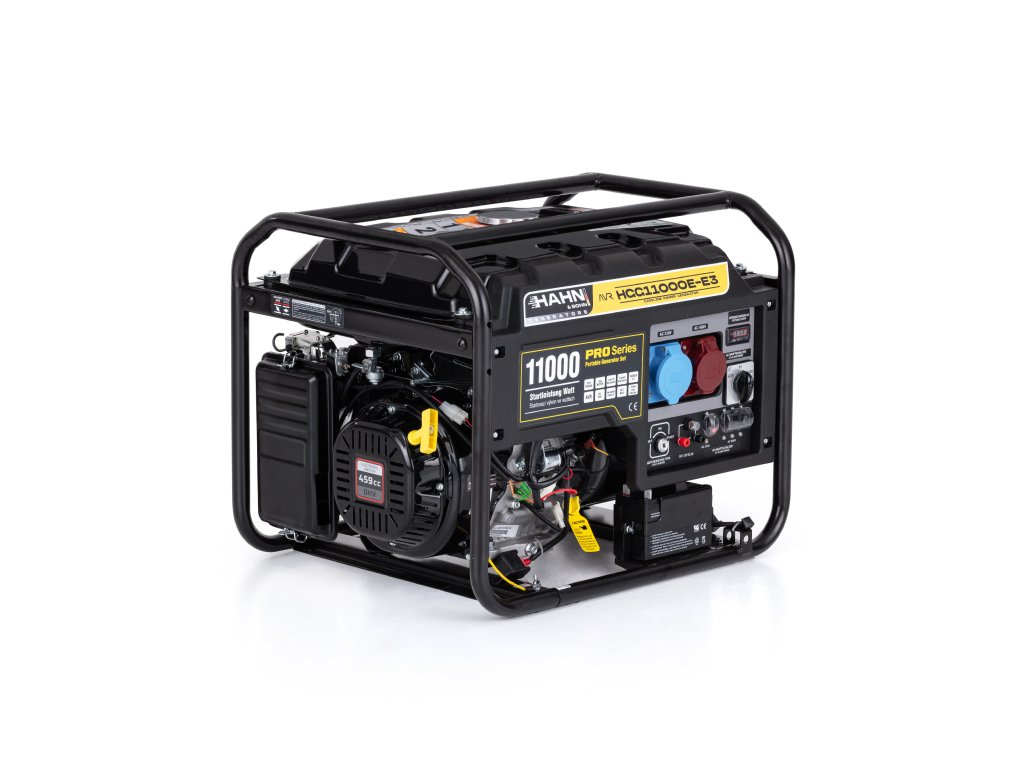

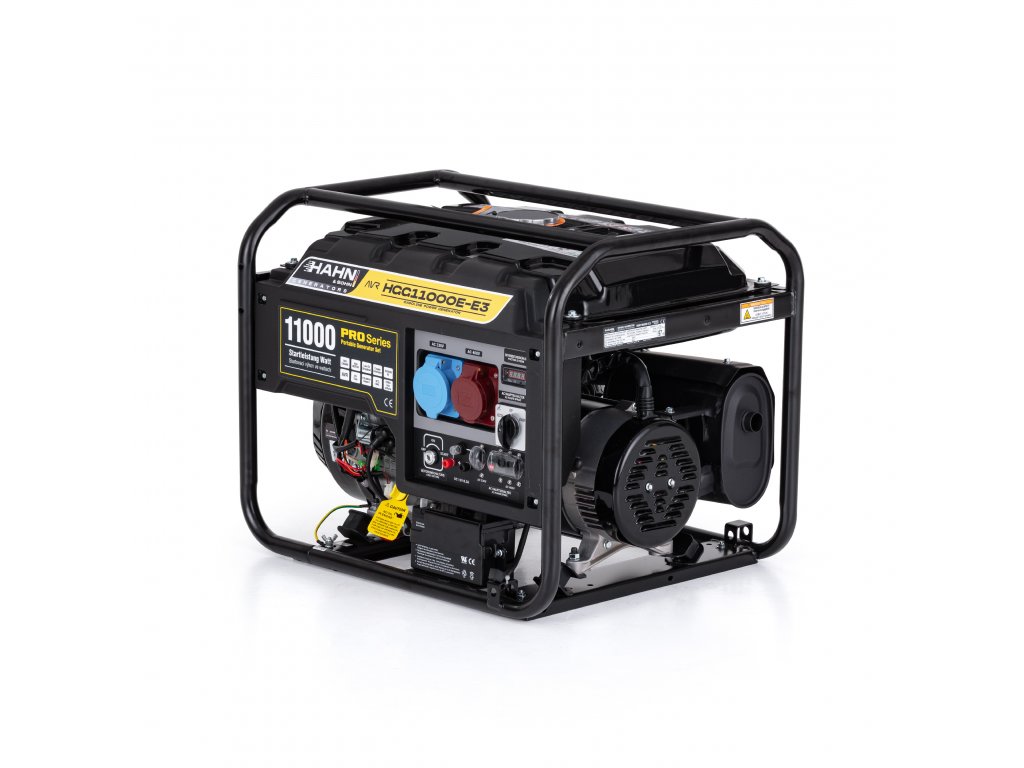

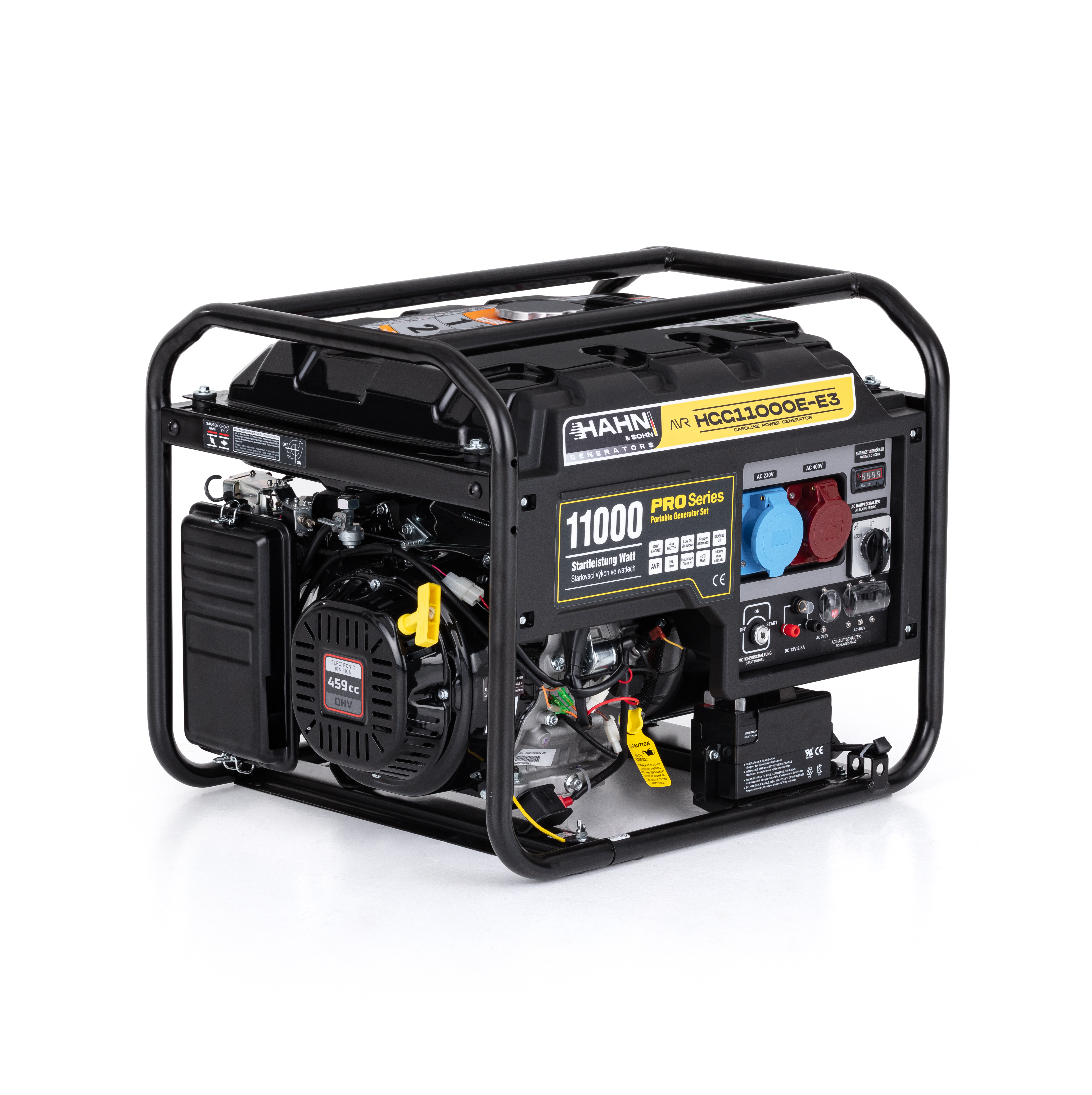

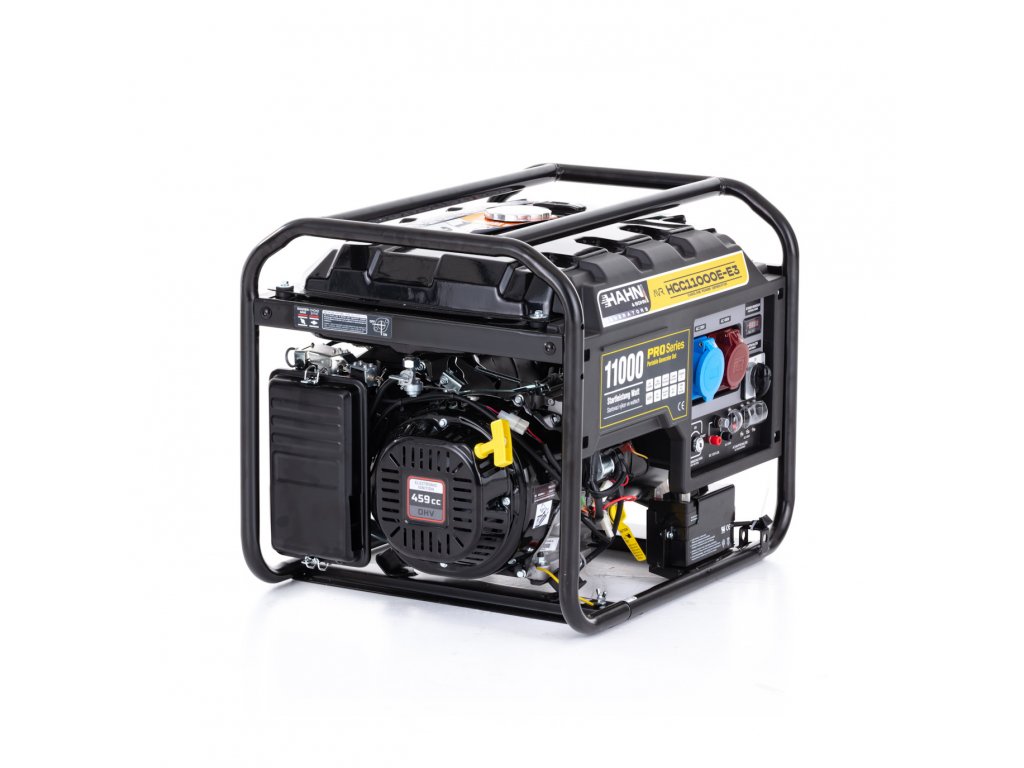

Hahn & Sohn Gasoline Generator HGG 11000E-E3
Maximum power 230V: 8.5 kVA / 8.5 kW
Maximum power 400V: 10.6 kVA / 8.5 kW
Nominal power 230V: 8.0 kVA / 8.0 kW/
Nominal power 400V: 10.0kVA / 8.0kW
Output voltage: 230V / 400V
Voltage Regulation: AVR
Nominal current 230V: 34.8 A
Nominal current 400V: 14.4A
Hahn & Sohn Gasoline Generator HGG 11000E-E3 - 8,5 kW three-phase
The Hahn & Sohn HGG 11000E-E3 is a modern gasoline power generator that knows how to impress with its reliability and trouble-free operation. This makes the Hahn & Sohn HGG 11000E-E3 an all-rounder for construction sites, events, in agriculture or at home. The generator is also suitable for emergency power supply.
Hahn & Sohn HGG 11000E-E3 Description:
The air-cooled four-stroke engine has a large 25l tank, which allows long and trouble-free operation of up to 8 hours. The generator has manual and electric start and is three-phase - supplies 230V and 400V. The resulting output of 10.6 kVA / 8.5 kW (maximum output, 400V) and 10.0 kVA / 8.0 kW (Nominal output 400V) makes the generator a powerful companion.
Thanks to the automatic voltage regulator - AVR, voltage fluctuations - and thus possible damage to connected devices - are avoided. In this way, you can safely connect sensitive devices or consumers that start up with difficulty.
Hahn & Sohn HGG 11000E-E3 Features:
- Single-phase and three-phase operation possible
- Reliable gasoline engine that guarantees many years of trouble-free operation
- Robust, compact housing that facilitates transport and protects against damage
- Vibration isolation that dampens the vibrations of the device well, which translates into its durability
- AVR voltage stabilization system
- Large fuel tank
Additional parameters
| Category: | Gasoline |
|---|---|
| Warranty: | 2 years |
| Weight: | 89 kg |
| Weight: | 61 - 120kg |
| Nominal power: | 7,1 - 9 kW, 9,1 - 11 kW |
| ? Fuel tank capacity: | 20,1 - 30 l |
| Maximum power: | 7,7 - 9,6 kW, 9,7 - 12,6 kW |
| Voltage: | 230/400 V |
| Starter: | Manual/Electric |
| Nominal voltage: | 230V/400V |
| Maximum power 230V: | 8,5 kVA / 8,5 kW |
| Maximum power 400V: | 10,6 kVA / 8,5 kW |
| Nominal power 230V: | 8,0 kVA / 8,0 kW |
| Nominal power 400V: | 10,0 kVA / 8,0 kW |
| Nominal current (230V/400V): | 34,8 A /14,4 A |
| Frequency: | 50 Hz |
| Starting: | Manual + electric start |
| Fuel tank capacity: | 25 l |
| Working time per full tank at 100% load: | 8 h |
| Overall dimensions: | 681x546x550 mm |
| Net weight: | 89 kg |
| Engine: | spark-ignition, 4-stroke |
| Oil tank volume: | 1,1 l |
