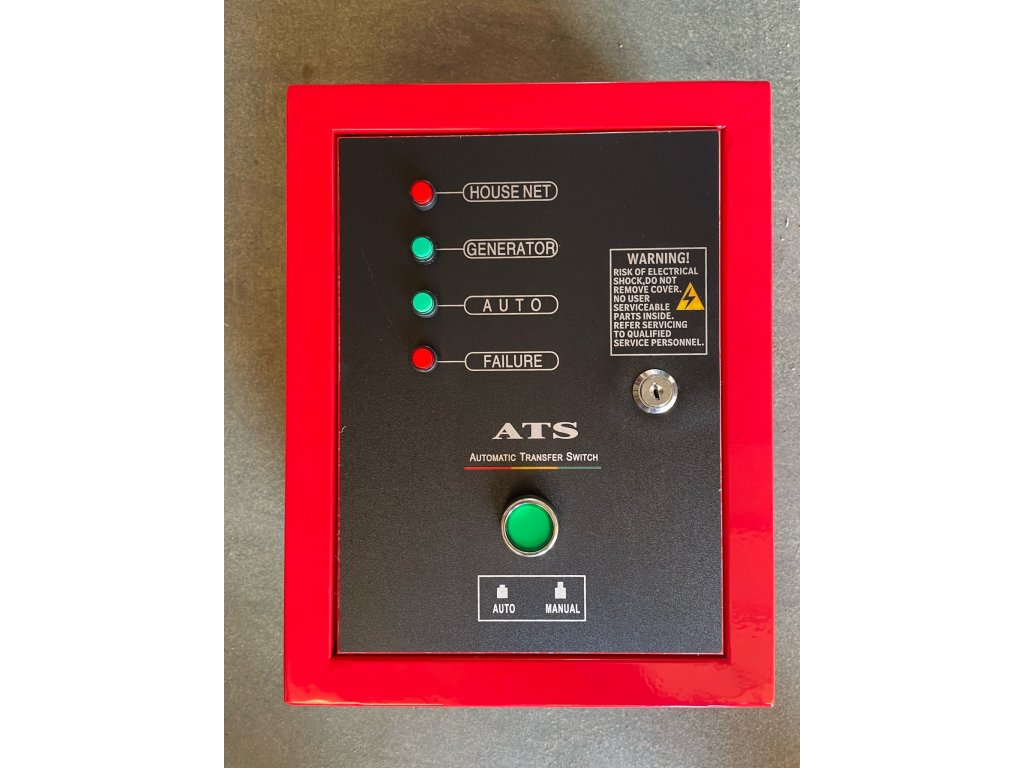

Hahn & Sohn ATS Connector 63A Indoor
ATS connector for automatic start of Hahn&Sohn industrial generators. Suitable for types HDE22RST3, HDE31RST3 and HDE40RST3.
Hahn & Sohn ATS Connector 63A Indoor
Hahn & Sohn ATS Connector 63A
ATS connector for automatic start of Hahn&Sohn industrial generators. Suitable for types HDE22RST3, HDE31RST3 and HDE40RST3.
This type is designed for indoor installation.
Additional parameters
| Category: | ATS Switches |
|---|---|
| Nominal current: | 63 A |
| Nominal insulation voltage: | 750 V |
| Nominal impulse withstand voltage: | 8 kV |
| Nominal contact voltage: | AC440V |
| Maximum cable cross-section: | 50 mm2 |
| Maximum rail width: | 20 mm |
| Switching time: | 0,45 s |
