Hahn & Sohn Gasoline generator HGG14000E3A
Maximum power: 11,5 kW
Nominal power: 10 kW
Weight: 143 kg
Max current: 18 A

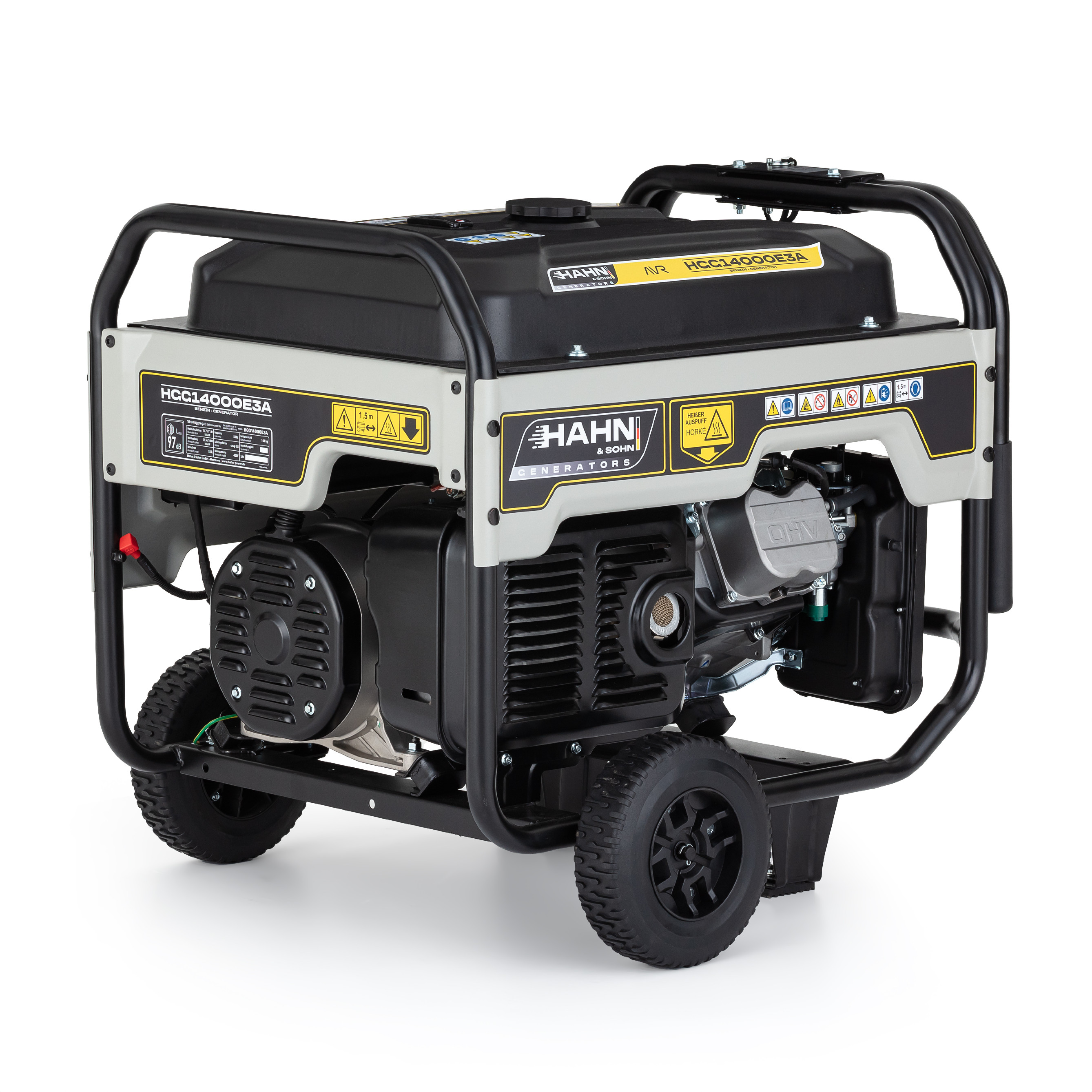

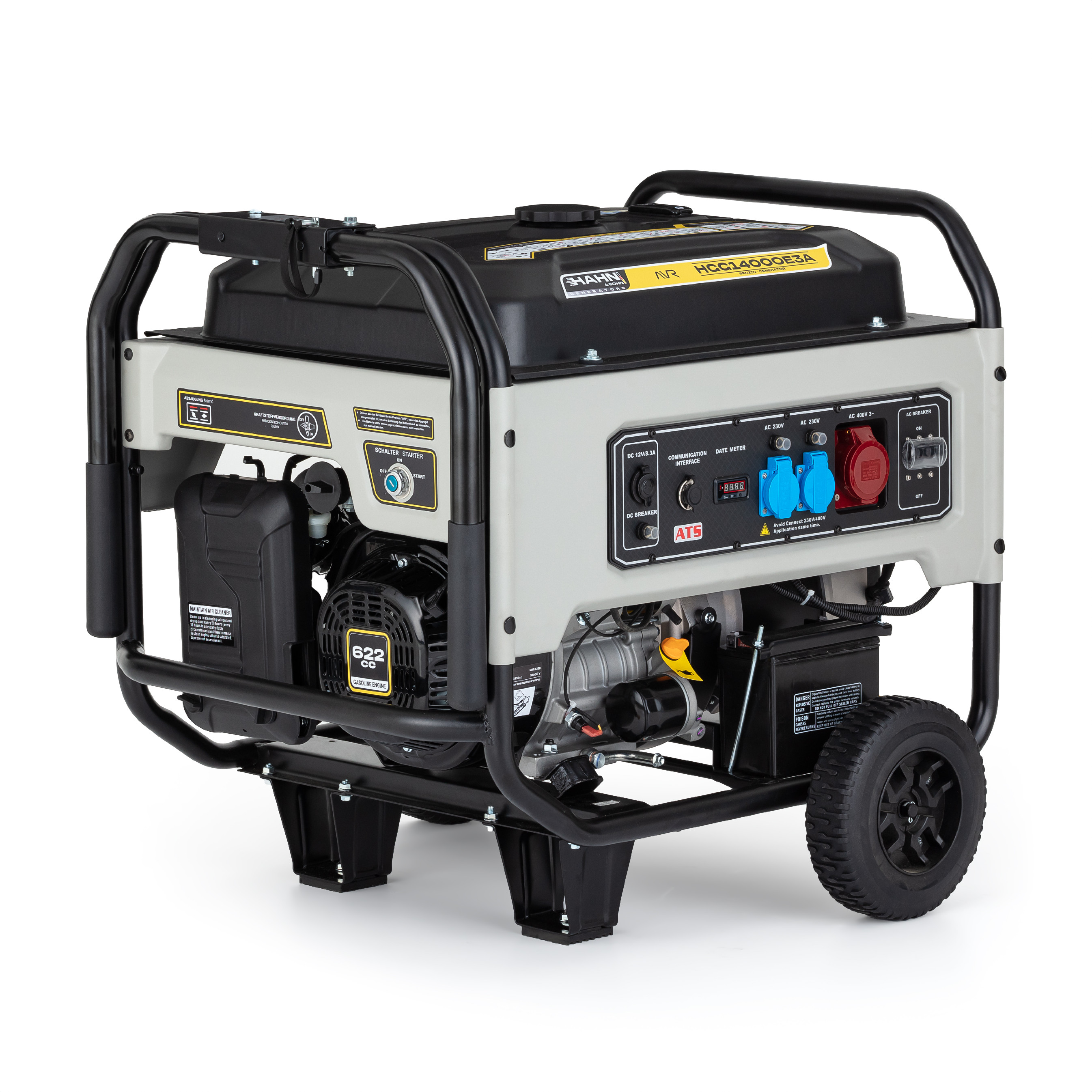

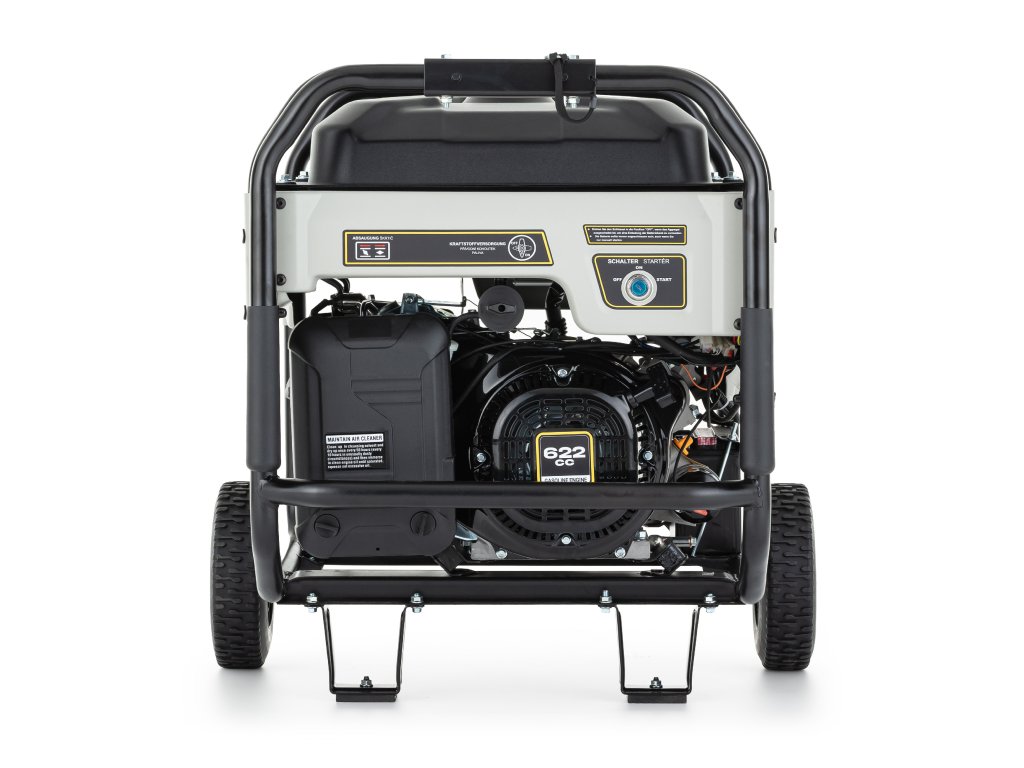

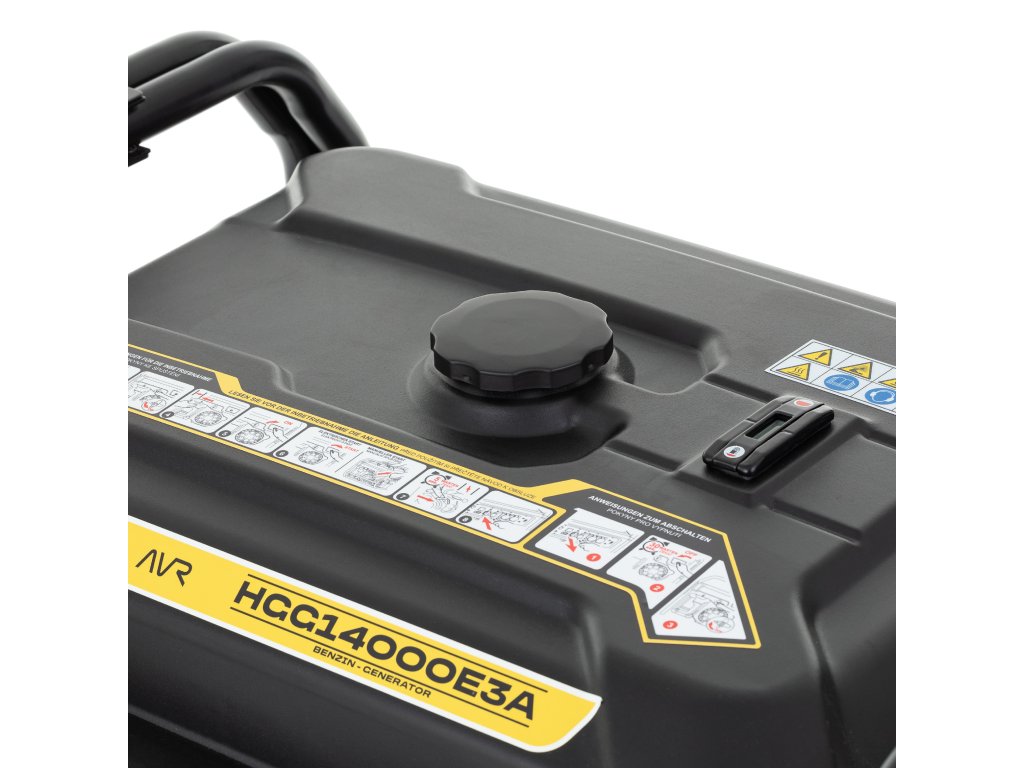

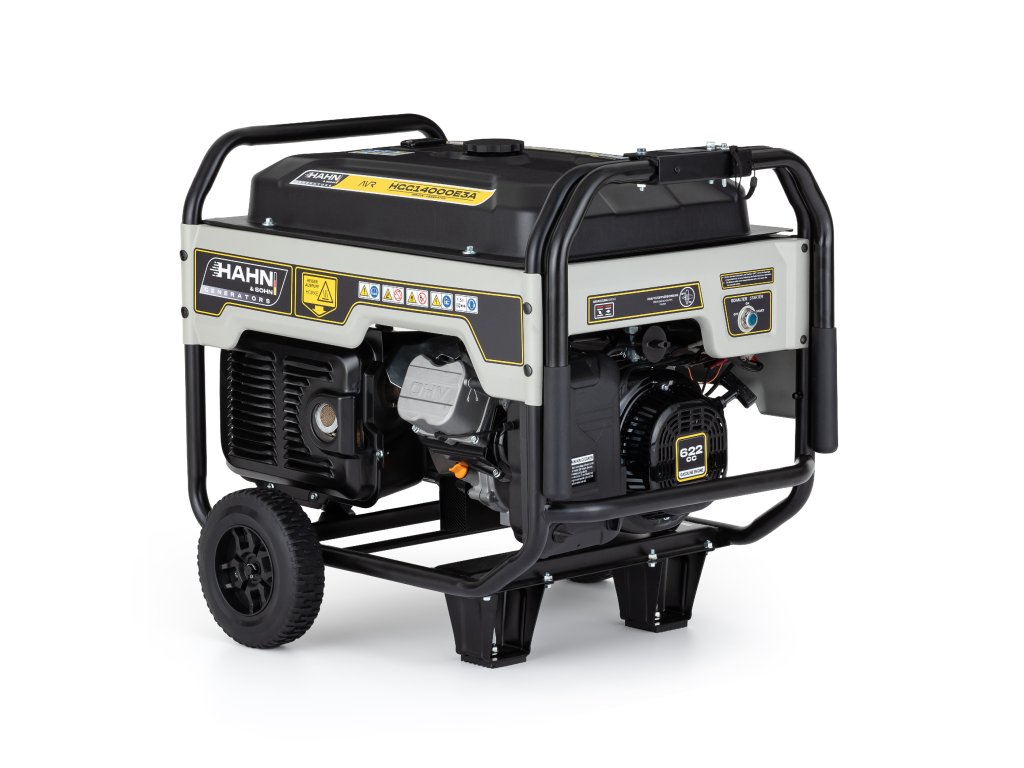

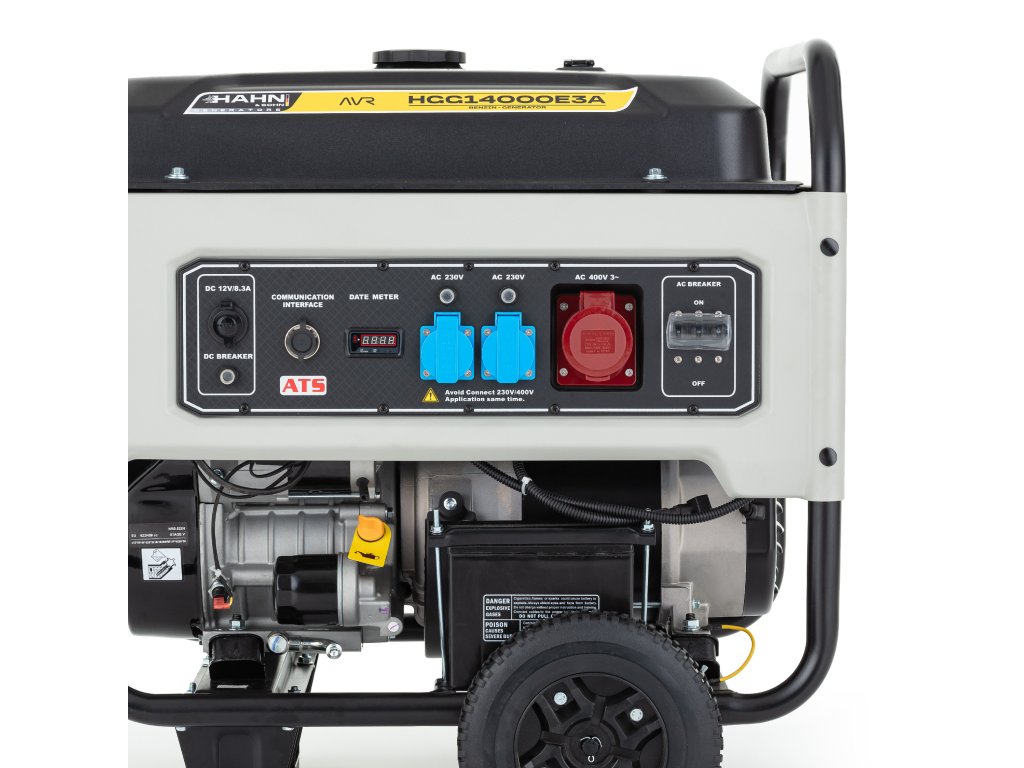

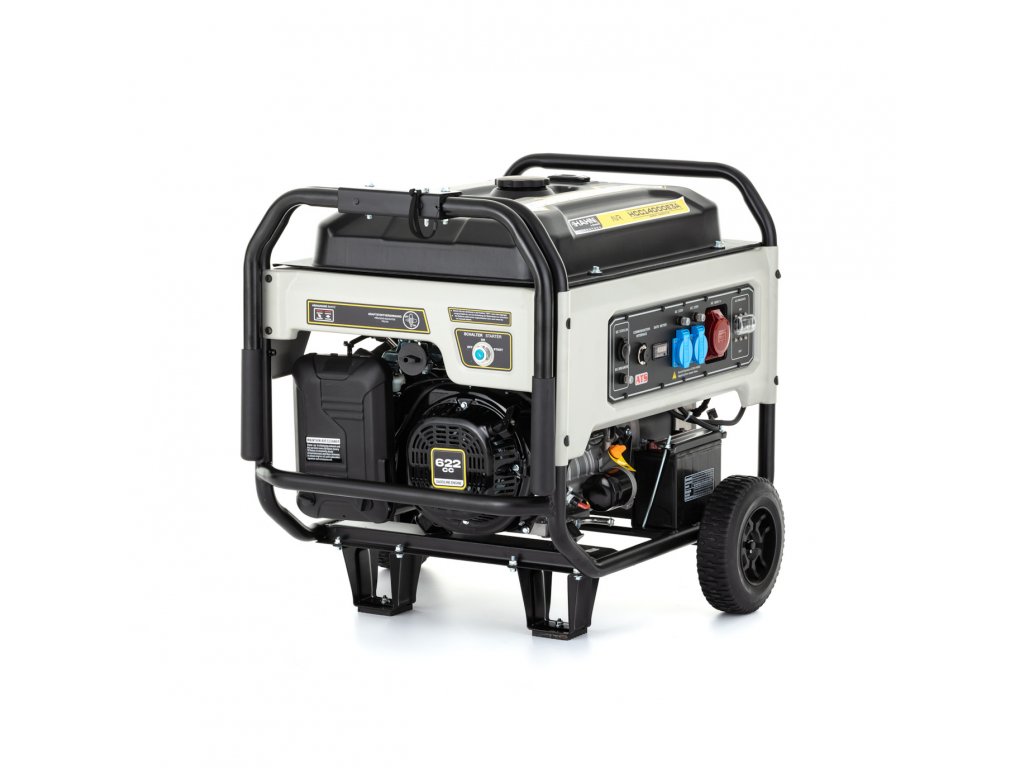

Hahn & Sohn Gasoline Generator HGG14000E3A
The Hahn & Sohn HGG HGG14000E3A is a modern gasoline generator that impresses with its reliability and trouble-free operation. This makes the Hahn & Sohn HGG14000E3A a versatile helper for construction sites, events, in agricultureor in your own home. The generator is also suitable for emergency power supply.
Hahn & Sohn HGG14000E3A Description
The air-cooled four-stroke engine has a large 48 litre tank that allows long and trouble-free operation for up to 10 hours. The generator is manually and electrically started and delivers 230V and 400V. The resulting output of 11 kW(maximum output, 400V) and 10 kW(nominal output, 400V) makes the generator a powerful companion.
Thanks to the automatic voltage regulator - AVR - voltage fluctuations - and thus possible damage to connected devices - are prevented. In this way, you can safely connect sensitive devices or appliances that are difficult to start.
Hahn & Sohn HGG14000E3A Features:
- Electric starter
- Reliable gasoline engine that guarantees many years of trouble-free operation
- A solid, compact housing facilitates transport and protects against damage
- Vibration isolation that absorbs the vibrations of the device well, which translates into its durability
- AVR voltage stabilization system
- Large fuel tank
Additional parameters
| Category: | Gasoline |
|---|---|
| Warranty: | 2 years |
| Weight: | 143 kg |
| Weight: | 121 - 180kg |
| Nominal power: | 3,1 - 5 kW, 9,1 - 11 kW |
| ? Fuel tank capacity: | 40,1 - 50 l |
| Maximum power: | 9,7 - 12,6 kW |
| Voltage: | 230/400 V |
| Starter: | Manual/Electric |
| Nominal voltage: | 230V/400V |
| Maximum power 400V: | 11 kW |
| Nominal power 400V: | 10 kW |
| Nominal power 230V: | 3,5 kW |
| Nominal current (400V): | 18 A |
| Frequency: | 50 Hz |
| Starting: | Manual + electric start |
| Fuel tank capacity: | 48 l |
| Working time per full tank at 100% load: | 10 h |
| Overall dimensions: | 800x620x650 mm |
| Net weight: | 143 kg |
| Consumption: | 4,8 l/h |
| Engine power: | 20 HP / 13.3 kW at 3600 RPM |
| Max. speed: | 3600 RPM |
| Nominal speed: | 3000 RPM |
| Engine model: | PG622 |
