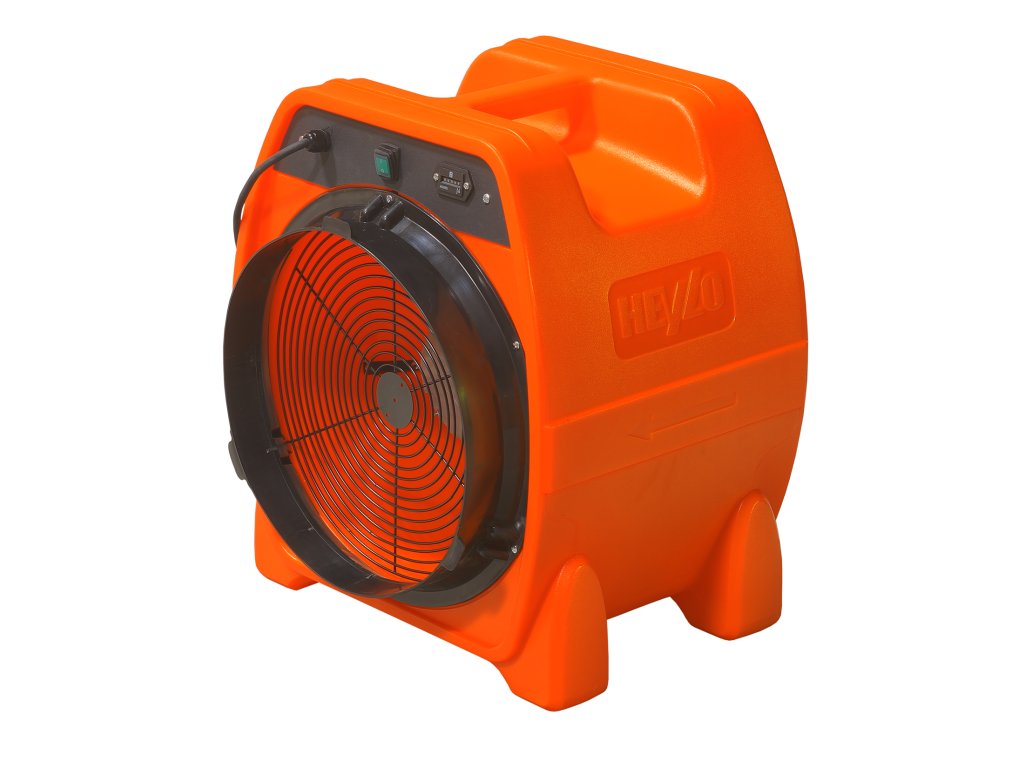

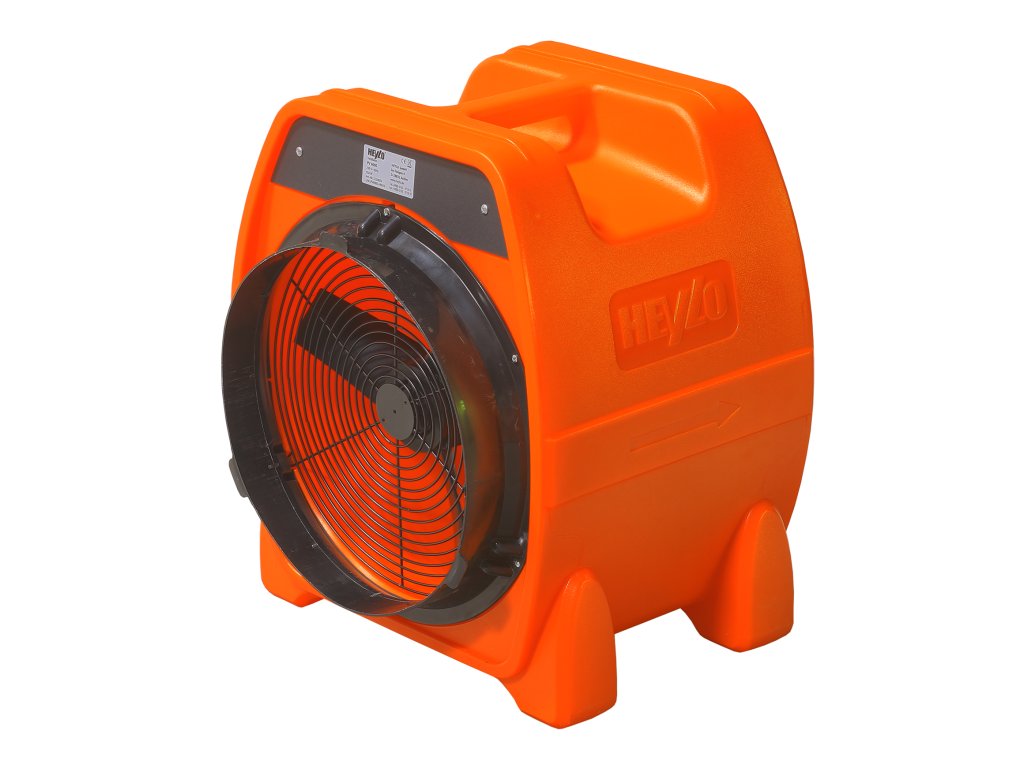

Axial fan HEYLO PowerVent 6000
Air performance max. (m³/h): | 5.410 |
Volume (dB(A) / 3 m): | 84 |
Weight (kg) | 18,3 |
Protection class (IP) | 44 |
Recommended number of shows á 7,6 m (St.) | 6 |
Axial fan HEYLO PowerVent 6000
USAGE
- rapid drying and ventilation of large areas such as buildings, shafts and tunnels
- use in construction and industry
- dust extraction, ventilation and cooling
FEATURES
- High air compression for long ducts. Air can also be transported over long distances and at high back pressure
- Ventilation can be even more targeted with multiple tubes connected thanks to different manifolds
- Robust housing (ABS plastic)
- Stackable, saves space
- Very comfortable service thanks to the upper control box
- Power cable suitable for construction sites (H07RN-F)
- Easy transport thanks to practical handle and low weight
- Protection class IP 44
- Class M dust bag can be attached
Additional parameters
Category: | Axial fans |
---|---|
Weight: | 18.3 kg |
Air flow (m³/h): | 5410 |
? Effective volume flow EVF (m³/h): | 1994 |
Pressure (Pa): | 377 |
Electrical power supply (V/Hz): | 230/50 |
Max. power consumption (kW): | 0,818 |
Power consumption max. (A): | 3,6 |
Length (mm): | 615 |
Width (mm): | 515 |
Height (mm): | 500 |
Weight (kg): | 18,3 |
Noise level (dB(A)/3 m): | 84 |
Protection class (IP): | 44 |

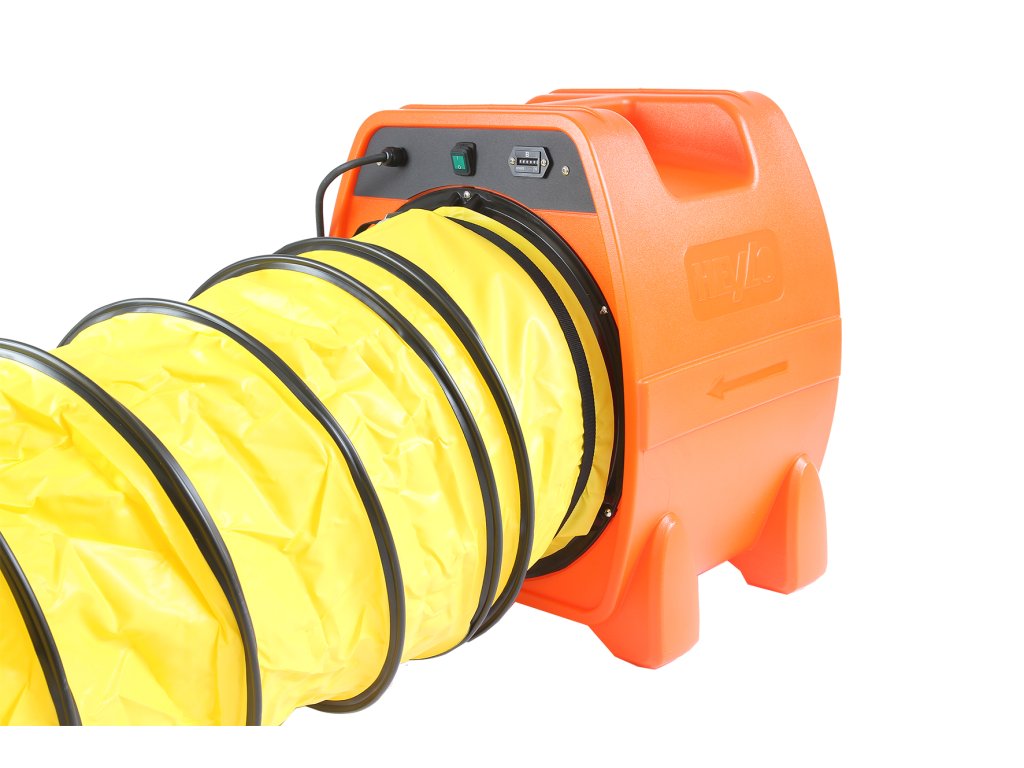

Hose (Ø in mm): | 420 |
The recommended length of each pipe is 7.6 m: | 6 |
