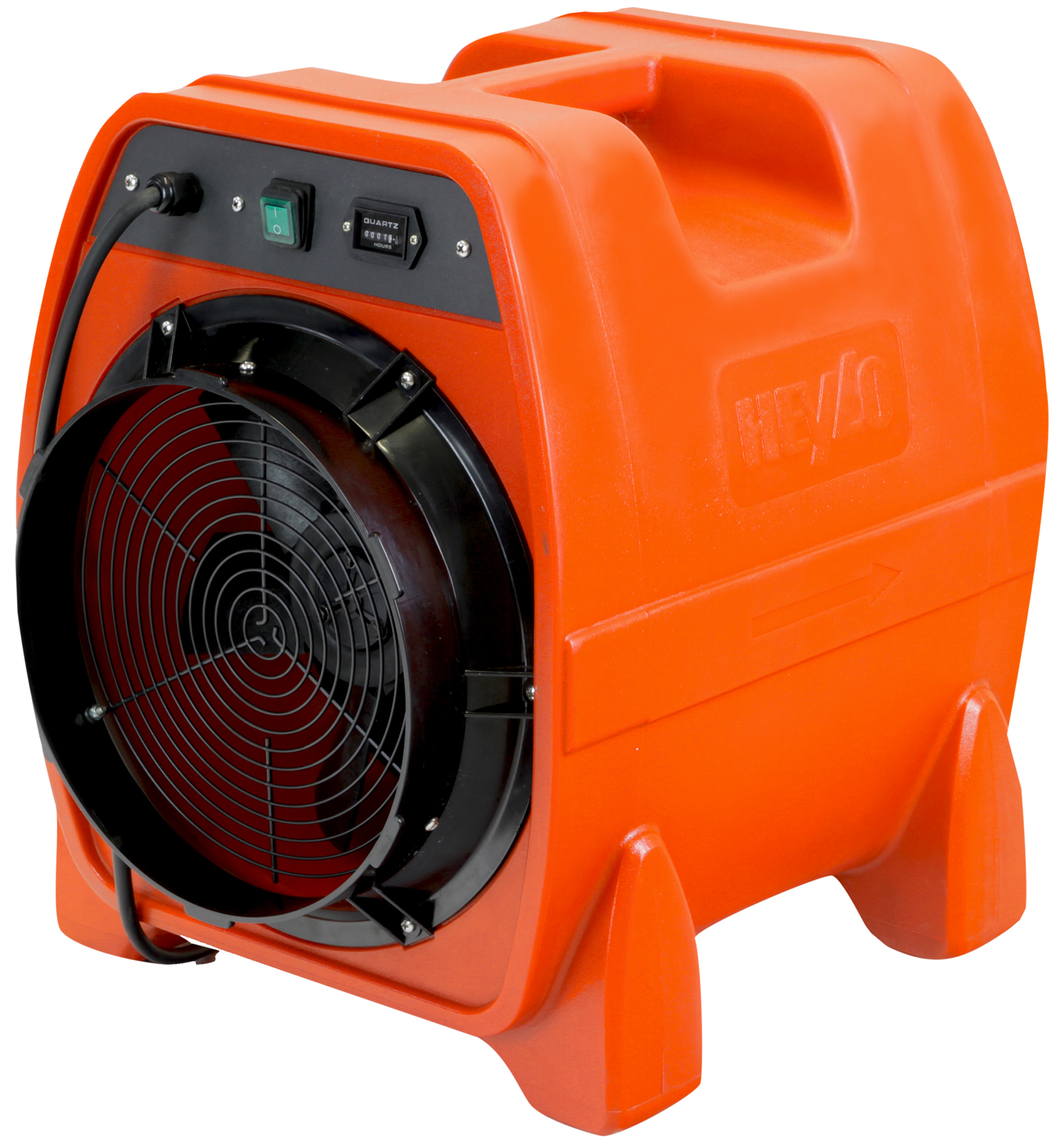

Axial fan HEYLO PowerVent 3000
Air performance max. (m³/h): 3.102
Volume (dB(A) / 3 m): 78
Weight (kg): 17,5
Protection class (IP): 44
Recommended number of shows á 7,6 m (Pcs.): 5
Axial fan HEYLO PowerVent 3000
USAGE
- aeration and ventilation of construction sites, tunnels and rooms
- can be combined in many ways as an air purifier or dust protection system
- in combination with FarbStop 3000/StaubStop 3000/StaubStop 3000 PLUS is suitable for air cleaning
- in combination with the PV 3000 combi, it can extract dust when cleaning the air
- as DCS-PV 3000 dust control system
FEATURES
- Equipped with operating hours counter
- Very powerful engine

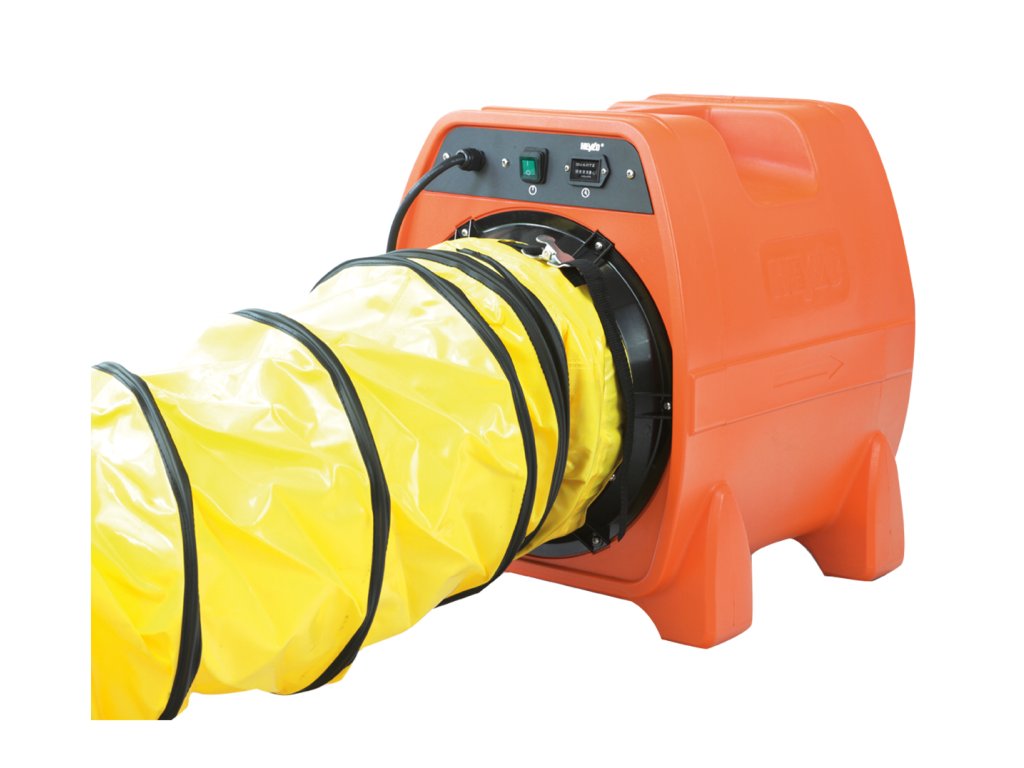

- The air pipe can be connected on both the intake and exhaust side
- It also allows the transport of fresh air to remote rooms and the extraction of used air
- Particularly precise with the practical triple distributor
- Stackable, saves space
- Light weight (only 17.5 kg)
- A Class M dust bag or filter housing including a fine dust filter can be attached for dust removal
- On the exhaust side of the fan, the hose can reach up to 38 m in total
Additional parameters
| Category: | Axial fans |
|---|---|
| Weight: | 17.5 kg |
| Air flow (m³/h): | 3102 |
| ? Effective volume flow EVF (m³/h): | 1460 |
| Pressure (Pa): | 501 |
| Electrical power supply (V/Hz): | 230/50 |
| Max. power consumption (kW): | 0,658 |
| Power consumption max. (A): | 2,89 |
| Length (mm): | 520 |
| Width (mm): | 400 |
| Height (mm): | 530 |
| Weight (kg): | 17,5 |
| Noise level (dB(A)/3 m): | 78 |
| Protection class (IP): | 44 |
| Hose (Ø in mm): | 305 |
| The recommended length of each pipe is 7.6 m: | 5 |
